6D-Link DNS-320 User Manual
Section 2 - Getting Started
To get started with the ShareCenter Pulse Setup Wizard, insert the supplied CD into your CD-ROM drive:
Getting Started
ShareCenter Pulse Software CD

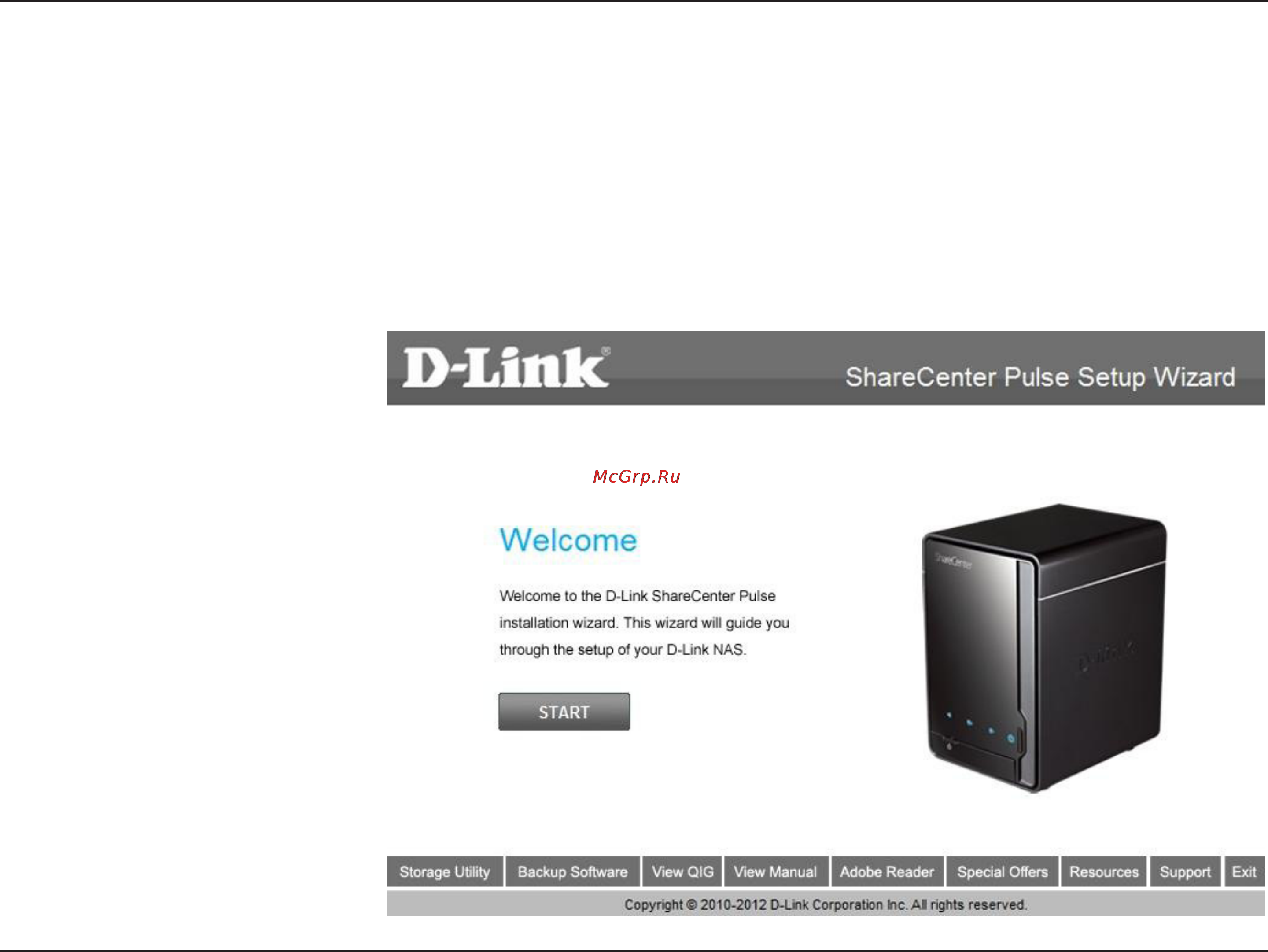

Click the START button to start the ShareCenter
Pulse Setup Wizard.
