Section 1 - Product Overview

Hardware Overview

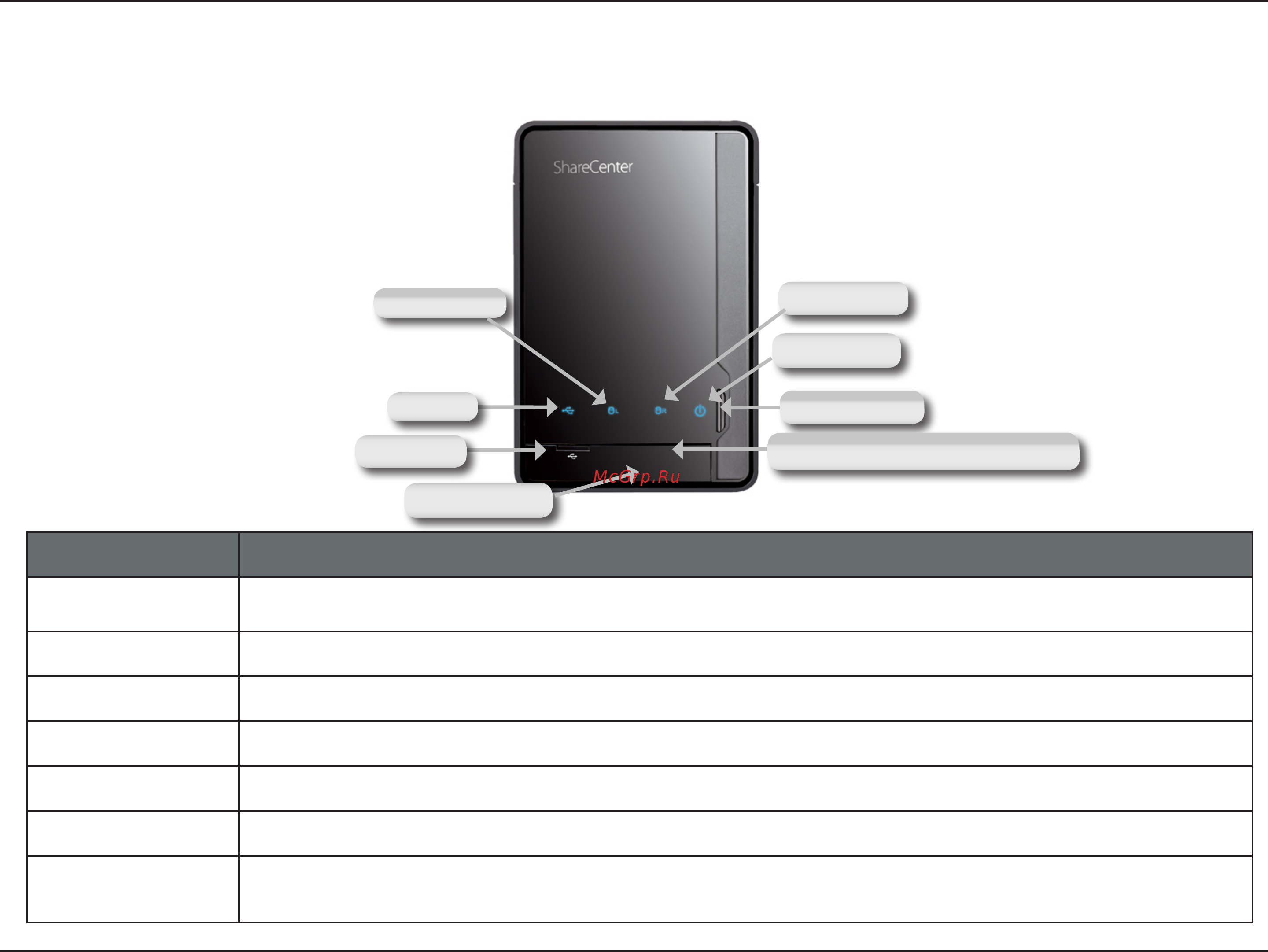

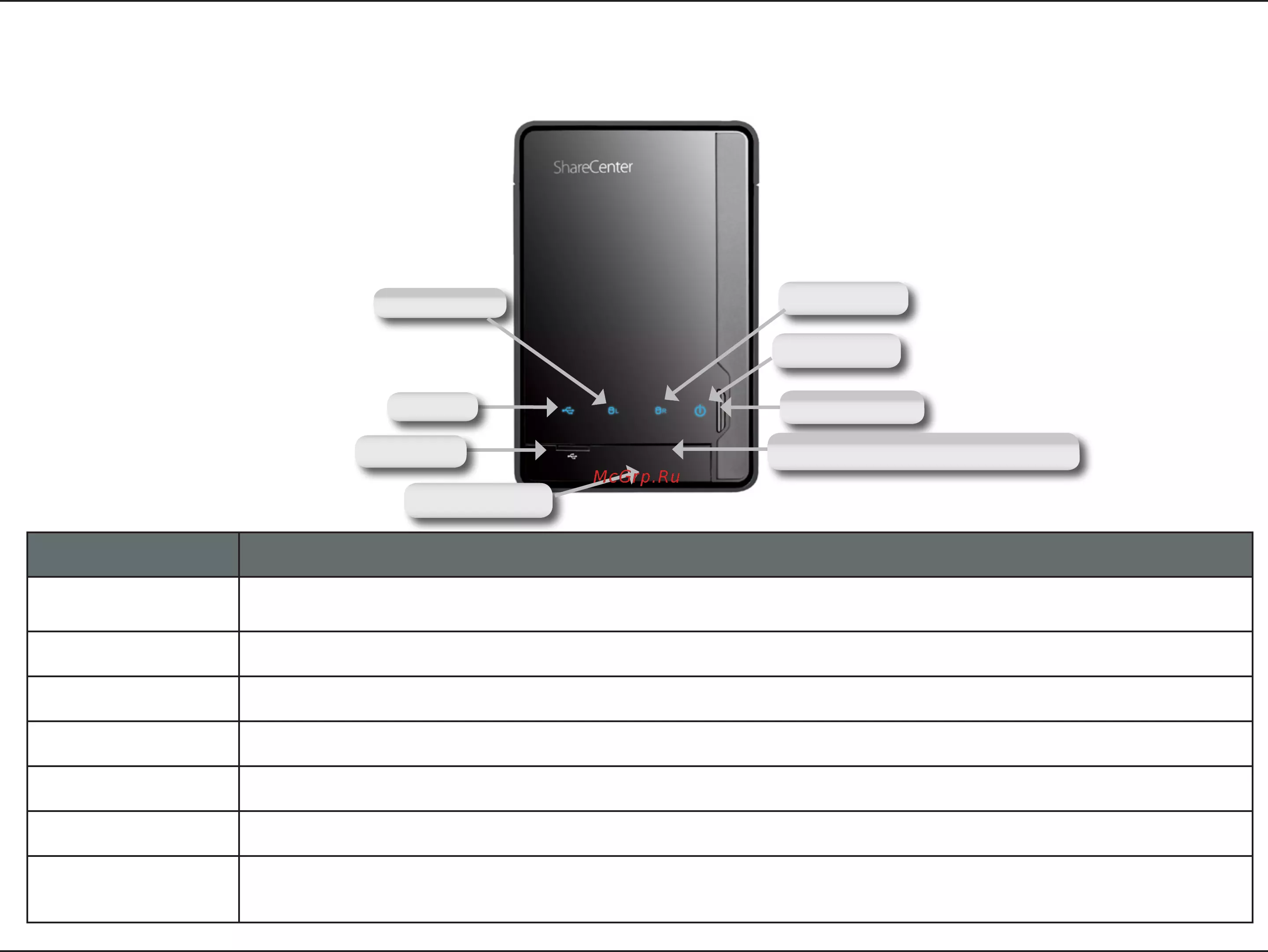

Front Panel

COMPONENT DESCRIPTION

HDD(L)/HDD(R) LED

These lights will be solid BLUE when drives are connected but inactive The lights will blink when the drives are being

accessed, formatted or synchronized. They will illuminate AMBER if a drive has failed.

USB LED This light will illuminate when a USB device is inserted into the USB Port. When there’s trac this light will blink.

USB Port This is the USB Port. Devices like a USB Print Server, UPS or USB drive can be inserted here.

Front Latch This latch can open and close by simply pressing it.

Power LED This light will illuminate when this ShareCenter Pulse is powered on.

Power Button Press once to power on the device. To power down, press and hold the button until it begins to blink.

USB Copy /

Unmount Button

Press 1~3 seconds to copy data from a USB drive to your ShareCenter Pulse. Press and hold 5 seconds to

unmount a USB drive.

Power Button

HDD(R) LED

Power LED

HDD(L) LED

USB LED

USB Port

USB Copy/ Unmount Button

Front Latch
