86D-Link DNS-320 User Manual
Section 4 - Conguration

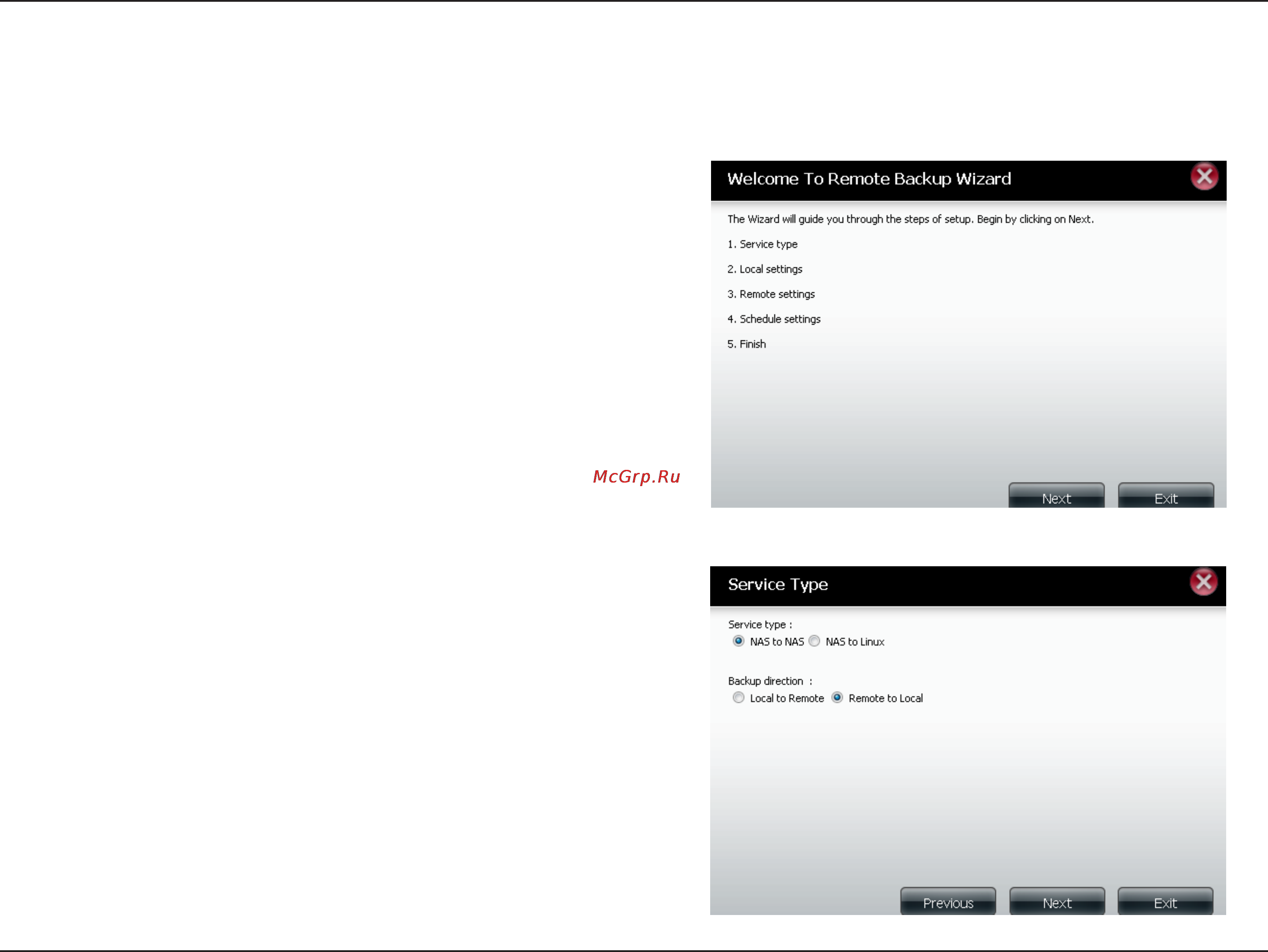

Remote Backups - Create wizard
When you click the Create Button above the Remote Backup list this wizard will launch allowing you to congure a new Remote Backup job.
Wecome: Displays the steps of the wizard.
Service Type: NAS to NAS: Backup from the local NAS to a remote
NAS or vice versa.
NAS to Linux: Backup from the local NAS to a Linux
le system or vice versa.
Local to Remote: Sets the backup source as the local
NAS and the target destination for the backup les
as the remote NAS or Linux le system.
Remote To Local: Sets the backup source as the
remote NAS or Linux file system and the target
destination for the backup les as the local NAS.
