54D-Link DNS-320 User Manual
Section 4 - Conguration

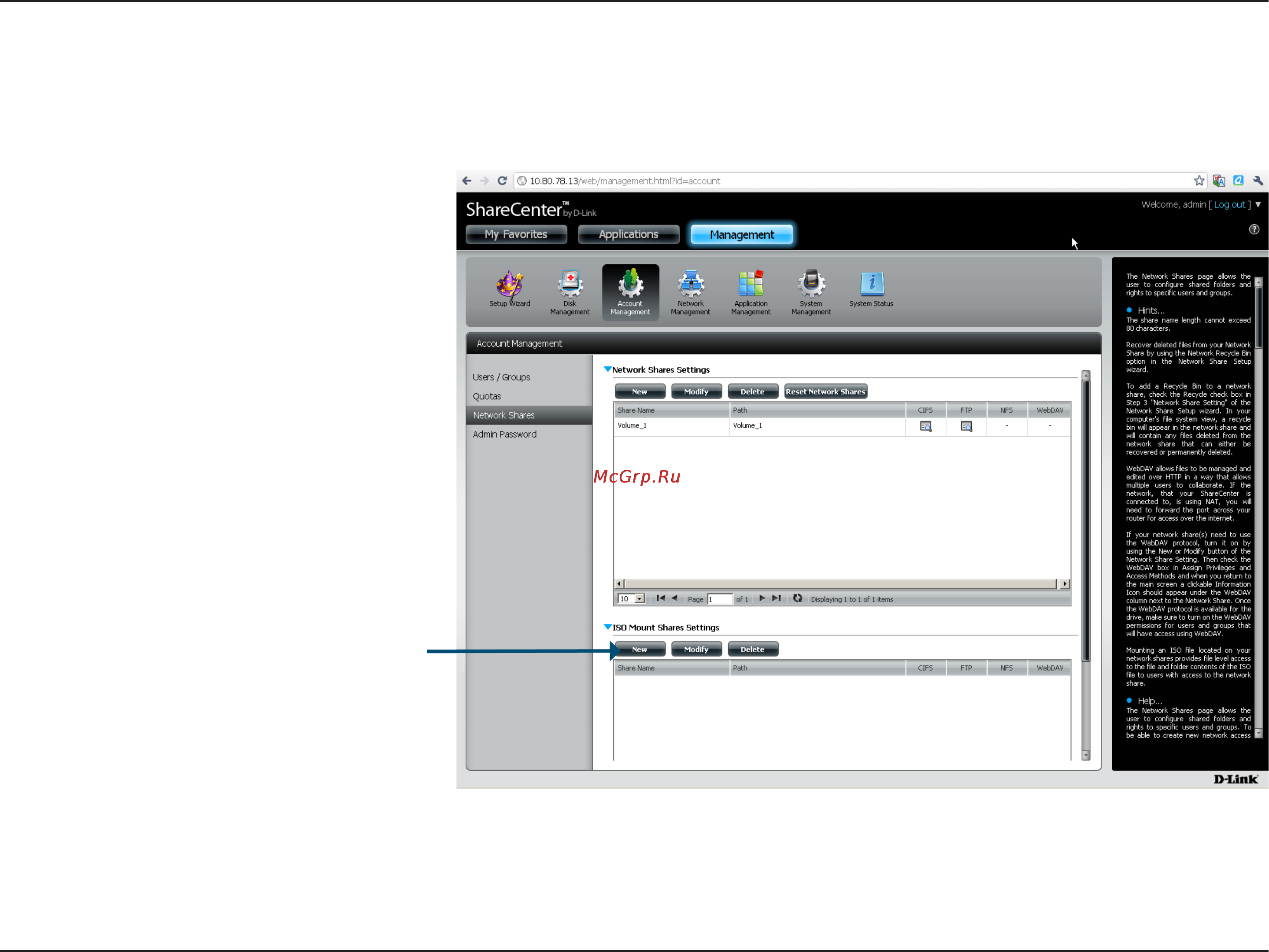

Adding New ISO Mount Shares Wizard
The following section will describe how to add a new ISO mount on the ShareCenter Pulse. To add a ISO Mount click on the New button. A easy to
congure wizard will be launched and look like the following:
In Account Management, under Network Shares,
the section ISO Mount Shares Settings allows the
user to add new ISO mounts.
