D-Link DNS-320 [74/117] System settings
![D-Link DNS-320 [74/117] System settings](/views2/1013341/page74/bg4a.png)
71D-Link DNS-320 User Manual
Section 4 - Conguration

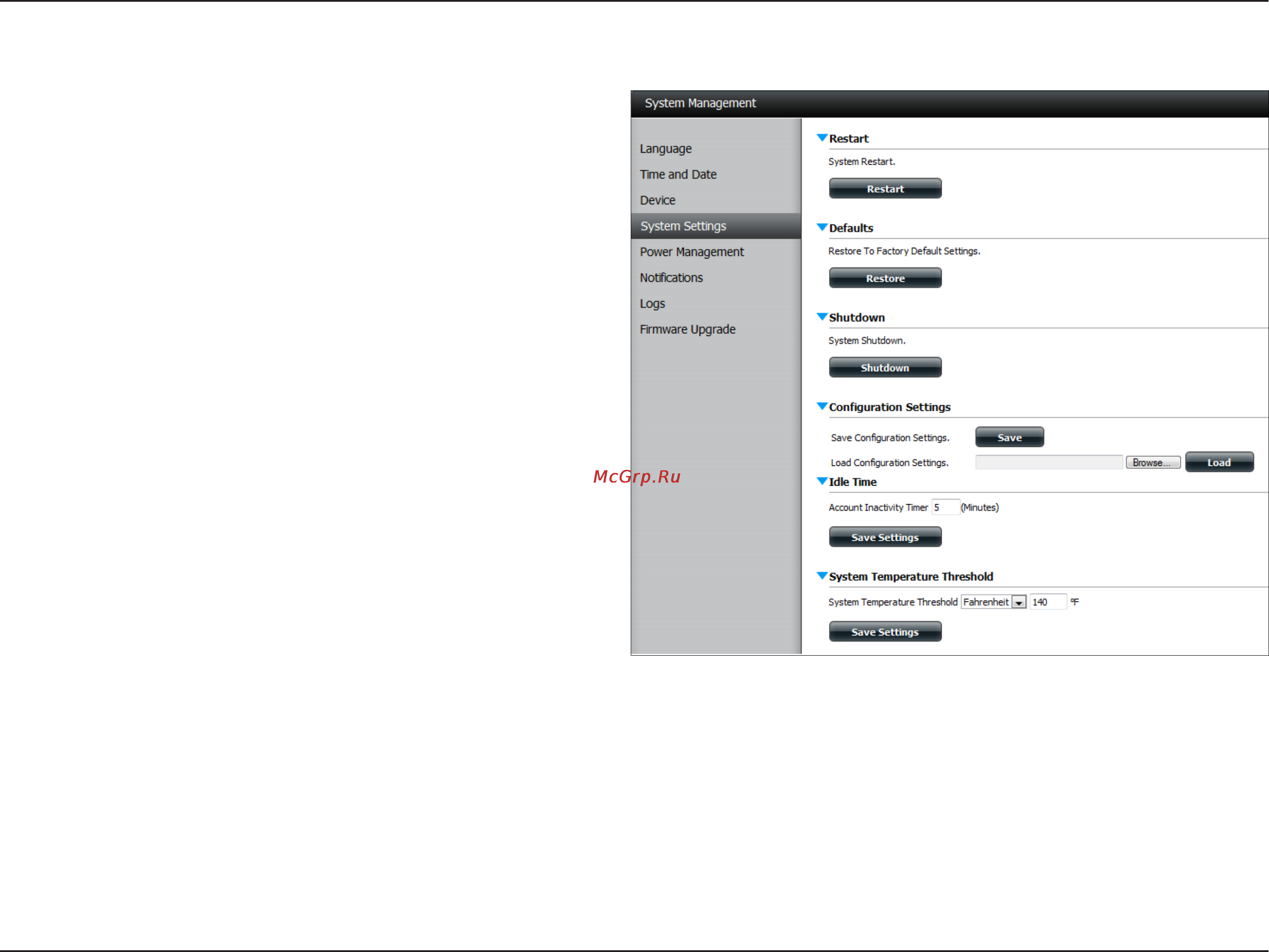

System Settings
Restart: Clicking to reboot the device.
Default: Click to restore the device back to the factory
default settings. All previous settings that have been
congured will be erased.
Shutdown: Click to turn o the device.
