72D-Link DNS-320 User Manual
Section 4 - Conguration
Conguration

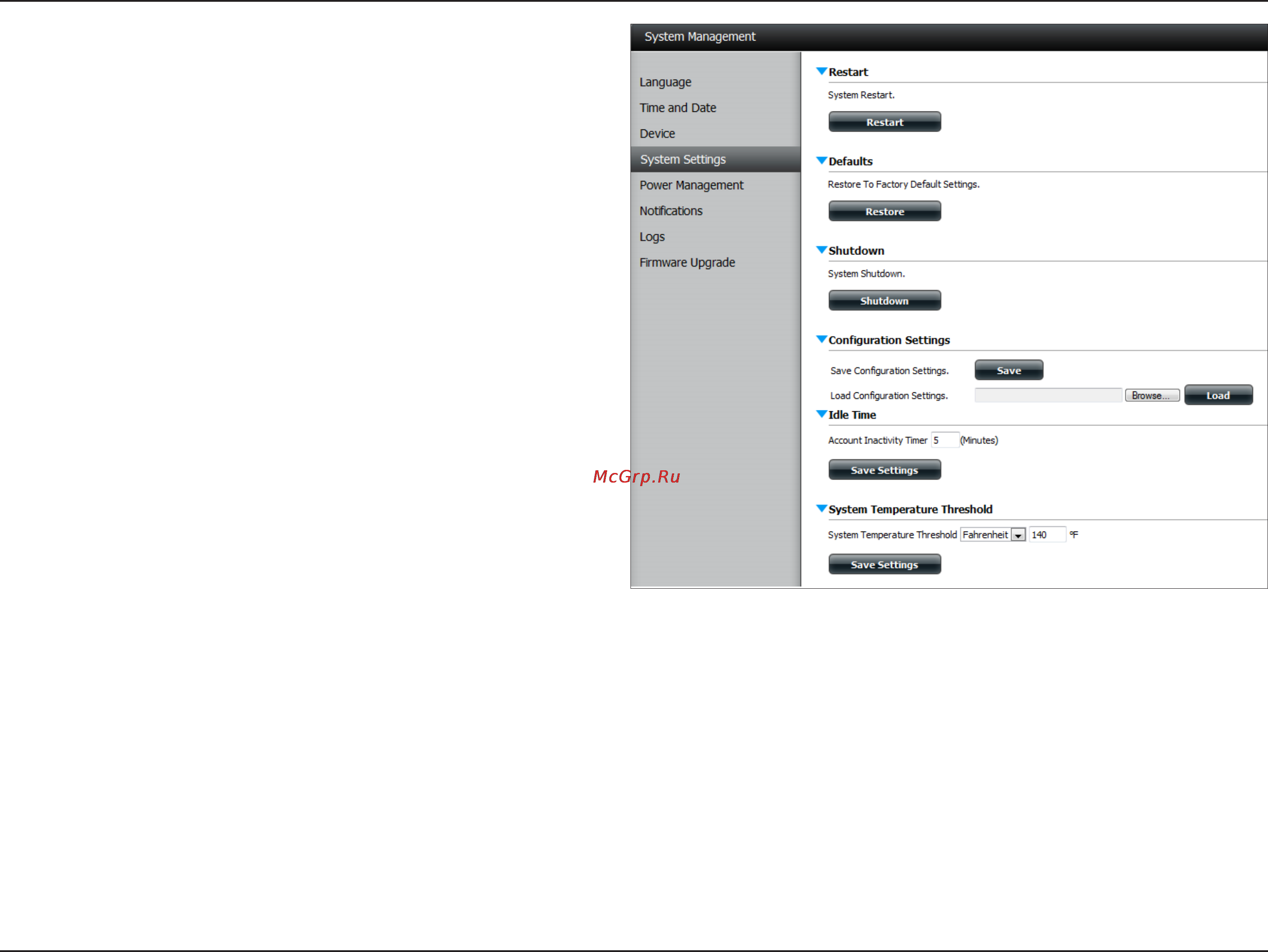

Settings:
Click on the S ave button to save the current
configuration settings to a file on your
computer. If at a later time you need to reload
this conguration after a system reset, browse
to the le and click Load.
Idle Time: Enter the time (in minutes) that the
administrator and users will be allowed to
remain idle while accessing the web UI.
System Temperature
Threshold:
Here the user can configure the system
temperature threshold value. This value can
be set in Fahrenheit or Celsius. The device will
automatically shutdown when it reaches the
temperature set here.
