D-Link DNS-320 [21/117] Format complete
![D-Link DNS-320 [21/117] Format complete](/views2/1013341/page21/bg15.png)
18D-Link DNS-320 User Manual
Section 3 - Installation

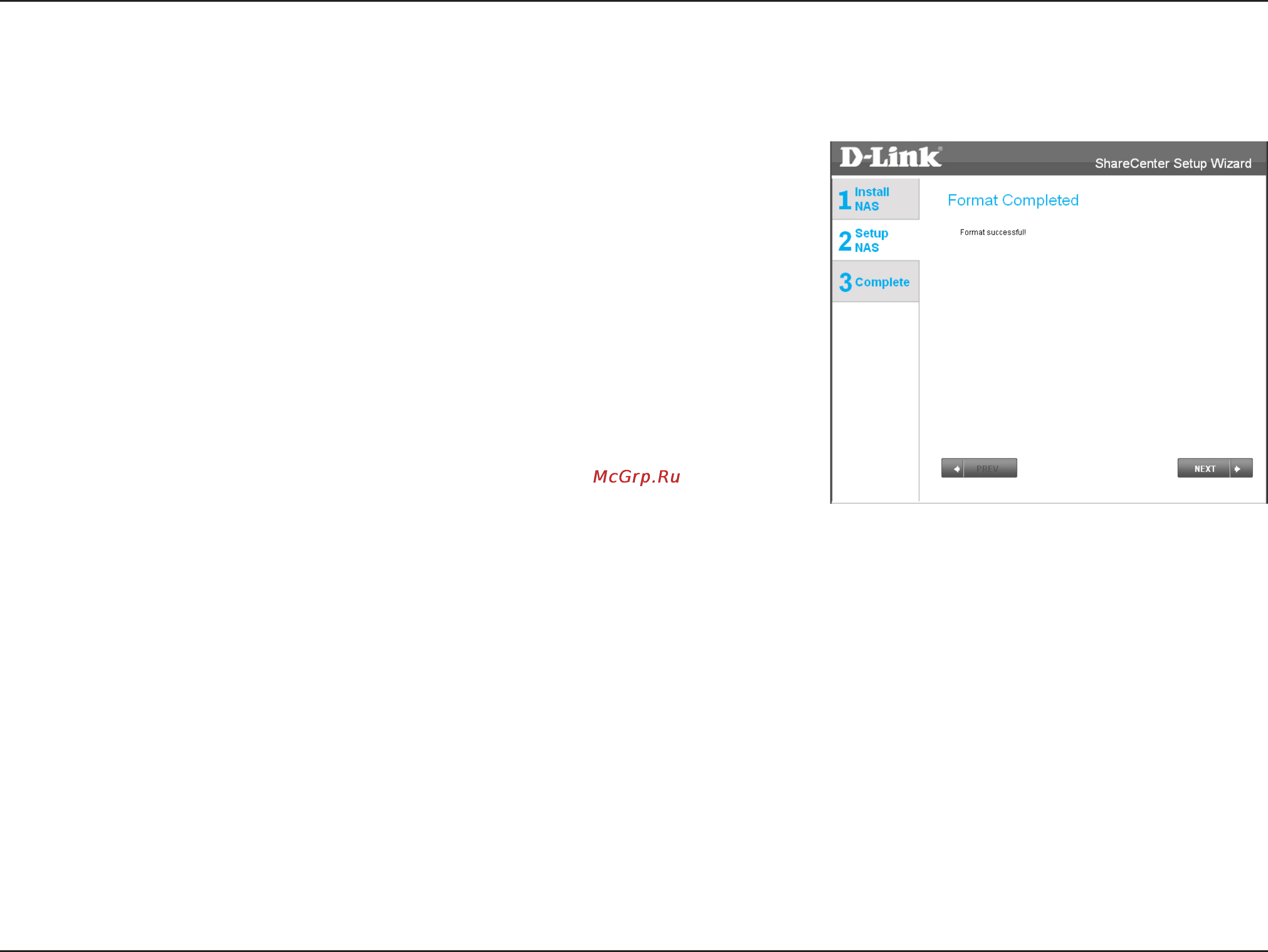

Format Complete
The wizard will show this window if the hard drive format(s) are successful. Click Next
to continue.
