108D-Link DNS-320 User Manual
Section 5 - Knowledge Base
Mapping the Recycle Bin
If you have turned on the Recycle Bin option with any of your Network Shares created, then you can map the recycle bin as a Network Drive to have
access to it.

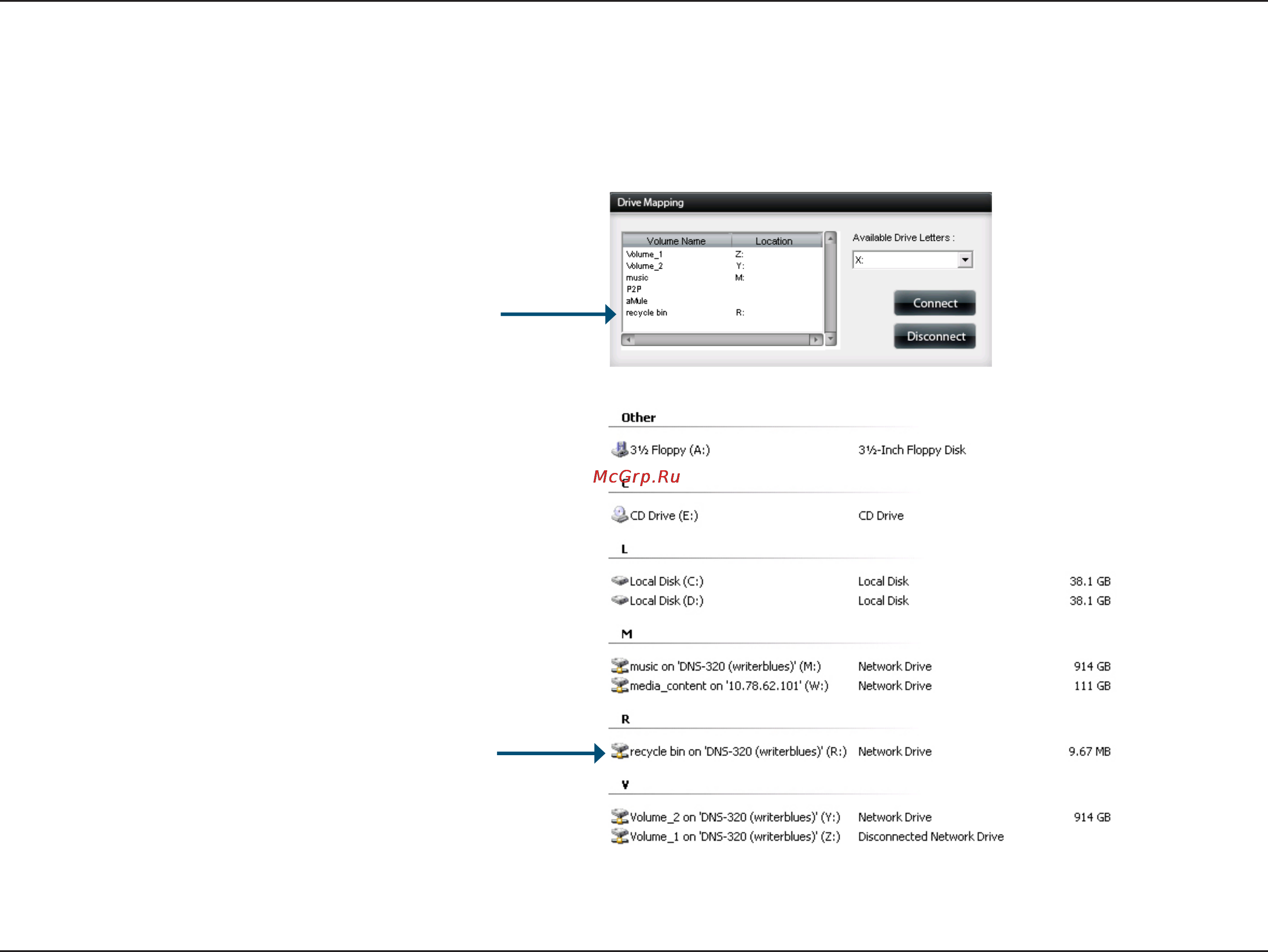

The Recycle Bin will appear in
the drive mapping area of the
Storage Utility.
Once connected the Recycle Bin
of the device will appear as a
Network Drive.
