107D-Link DNS-320 User Manual
Section 5 - Knowledge Base

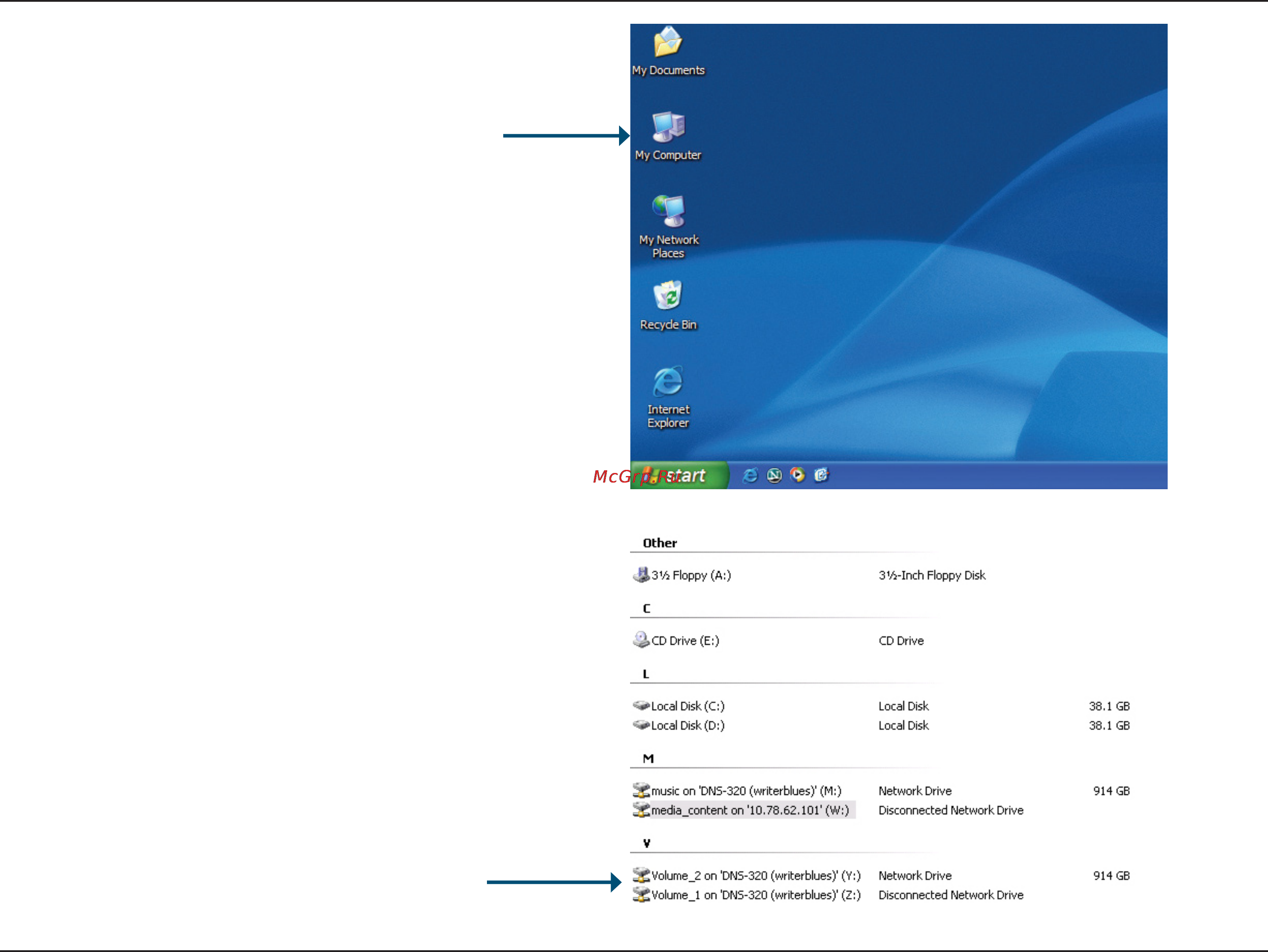

Double-click the My Computer
icon on your desktop.
Double-click the mapped drive
to access the les and folders.
