63D-Link DNS-320 User Manual
Section 4 - Conguration

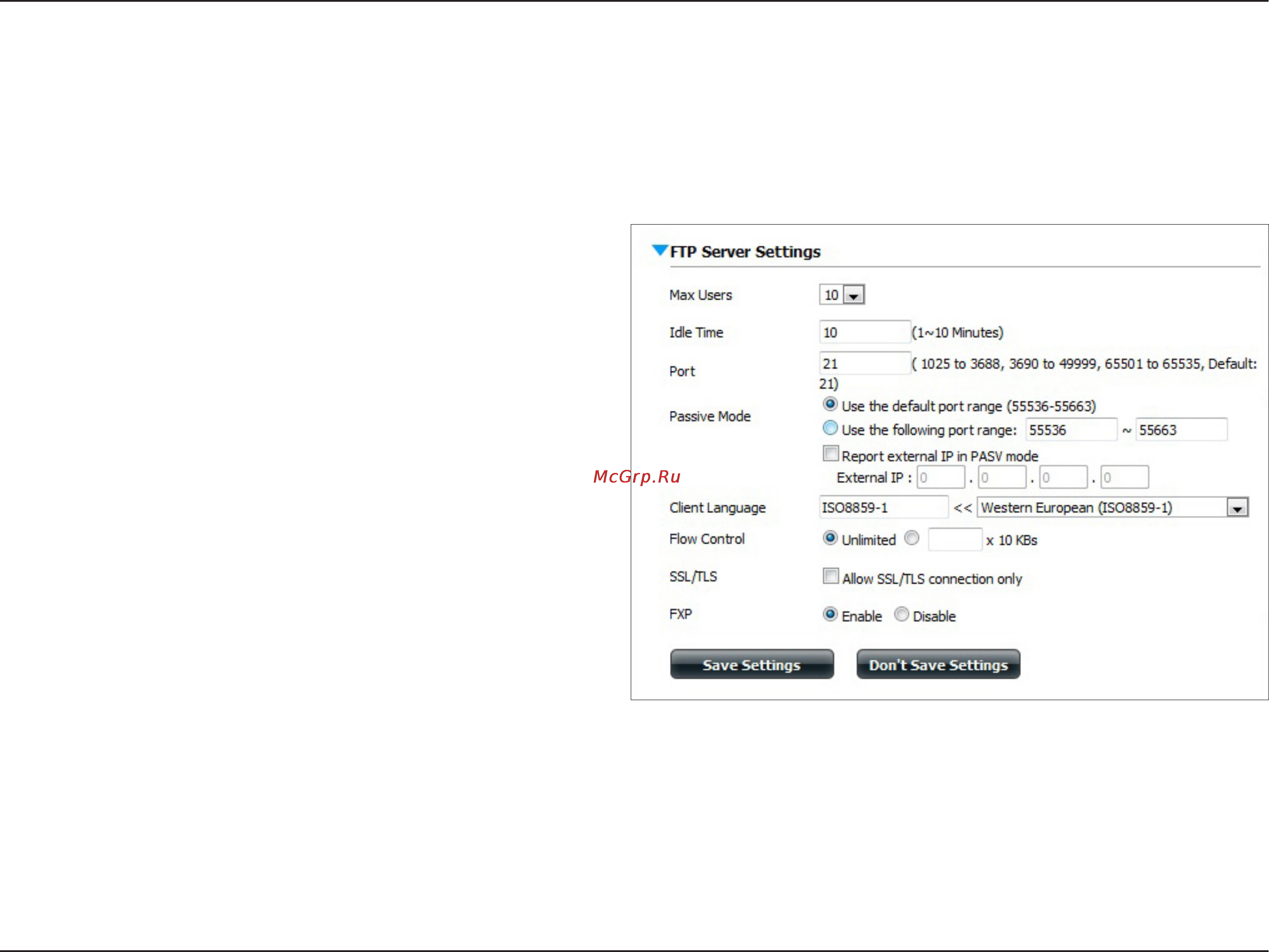

FTP Server
The device is equipped with a built in FTP Server. The server is easy to congure and allows users access to important data whether they are on the
local network or at a remote location. The FTP server can be congured to allow user access to specic directories, and will allow up to 10 users to
access the device simultaneously.
Application Management
Max. User: Set the maximum amount of users that can connect to
the FTP server.
Idle Time: Set the amount of time a user can remain idle before being
disconnected.
Port: Set the FTP port. Default is 21. If you are behind a router,
you will need to forward the FTP port from the router to
the device. Additional ltering and rewall settings may
need to be modied on your router to allow FTP Access
to the device from the Internet. Once the port has been
forwarded on the router, users from the Internet will access
the FTP server through the WAN IP address of the router.
Passive Mode: In situations where the device is behind a rewall and
unable to accept incoming TCP connections, passive mode
must be used.
Client
Language:
Most standard FTP clients like Windows FTP, only support
Western European code page when transferring les.
Support has been added for non standard FTP clients that
are capable of supporting these character sets.
Flow Control: Allow you to limit the amount of bandwidth available for
each user.
SSL/TLS: Here the user can enable the SSL/TLS connection only.
FXP: Enable or Disable File eXhange Protocol to transfer les
from one FTP server to another.
Note: In order to use FXP (File Exchange Protocol) for
server-to-server data transfer, make sure to change the
port from 21 to some other port as listed in the Port section
of the Web UI. Also, make sure to open the corresponding
port on your router and forward that port from your router
to the device.
