16D-Link DNS-320 User Manual
Section 3 - Installation
RAID Conguration and Drive Mapping

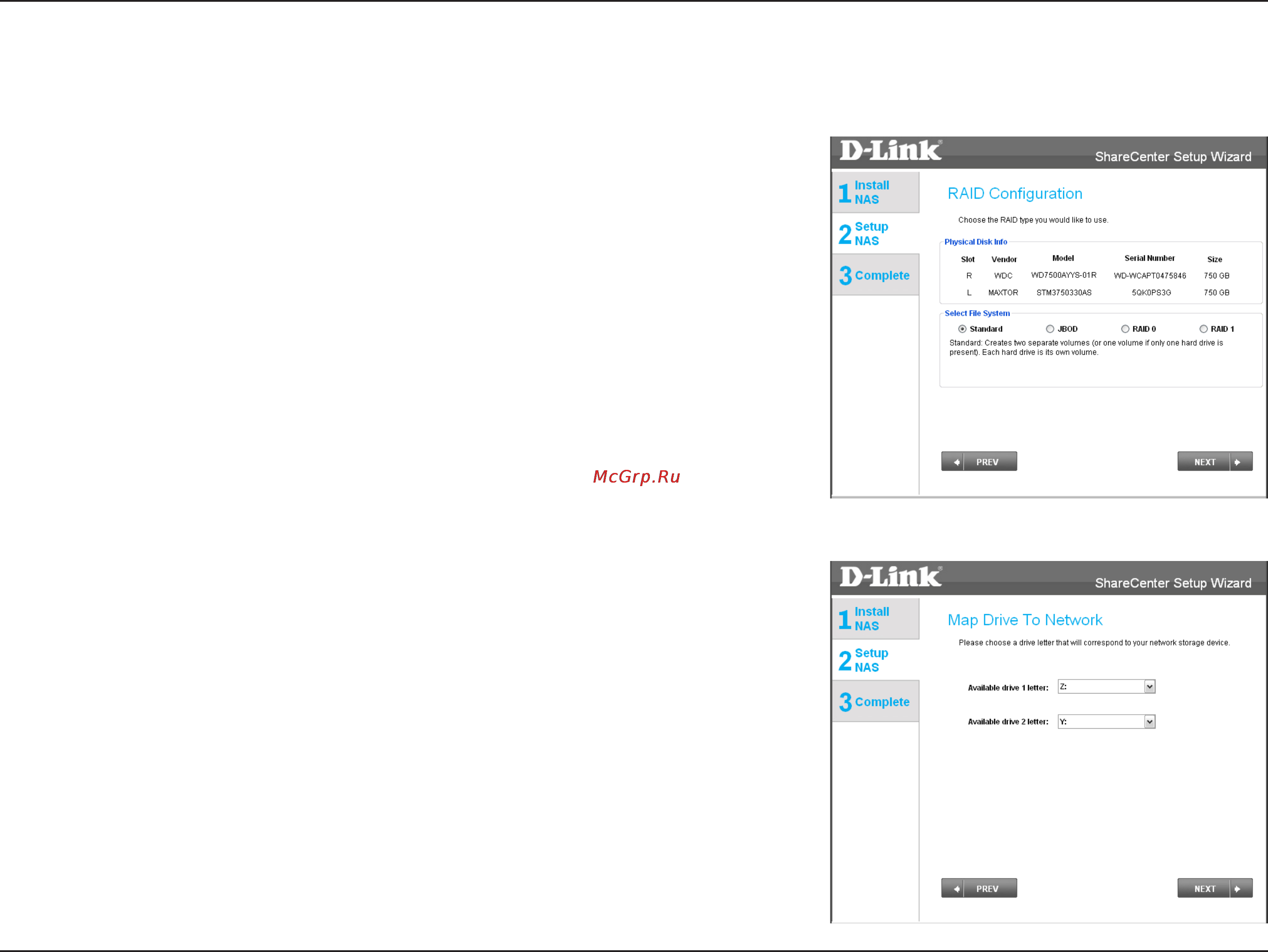

Select one of the Volume File Systems type. Clicking on each le system type radio button
will give a description below.
For more information concerning the dierent RAID Disk Formats please refer to “What
is RAID?” on page 104
This step allows you to map the volume(s) created as network drive(s) on your computer.
Click Next to continue.
Click Next to continue.
