31D-Link DNS-320 User Manual
Section 4 - Conguration

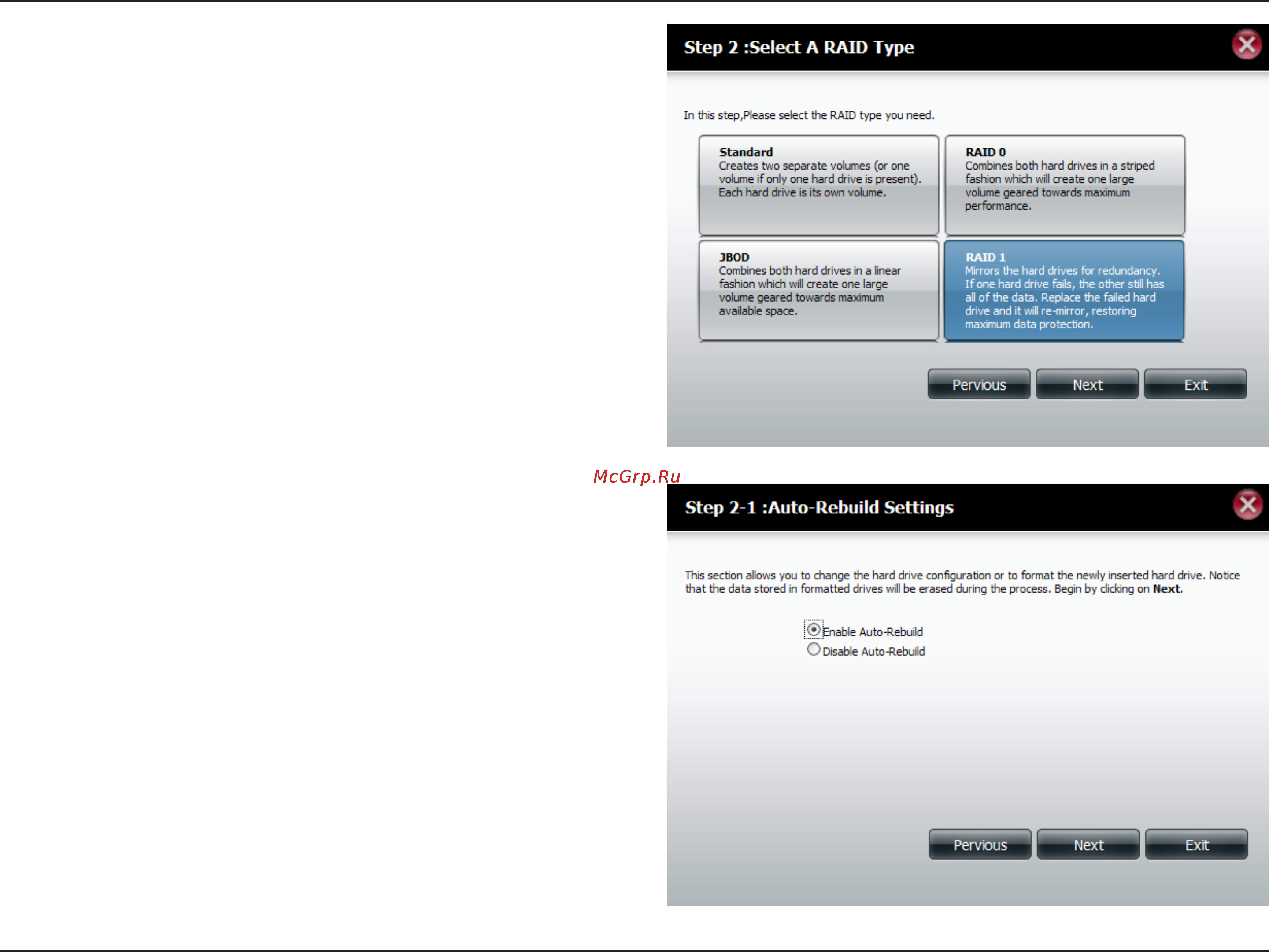

Select the format desired by clicking on the RAID type box to highlight
it in blue. In this example the maximum data protection option of RAID
1 is selected. Click Next to continue.
If you have selected RAID 1 then the wizard will display this step to
enable or disable Auto-Rebuild. Auto-Rebuild will automatically rebuild
a failed disk drive if it has been replaced with a new one. Set to disabled
if you prefer to start this process manually. Click Next to continue.
