Chapter 11 Static Multicast Forward Setup
XGS-4526/4528F/4728F User’s Guide
143
Click Advanced Application > Static Multicast Forwarding to display the
configuration screen as shown.

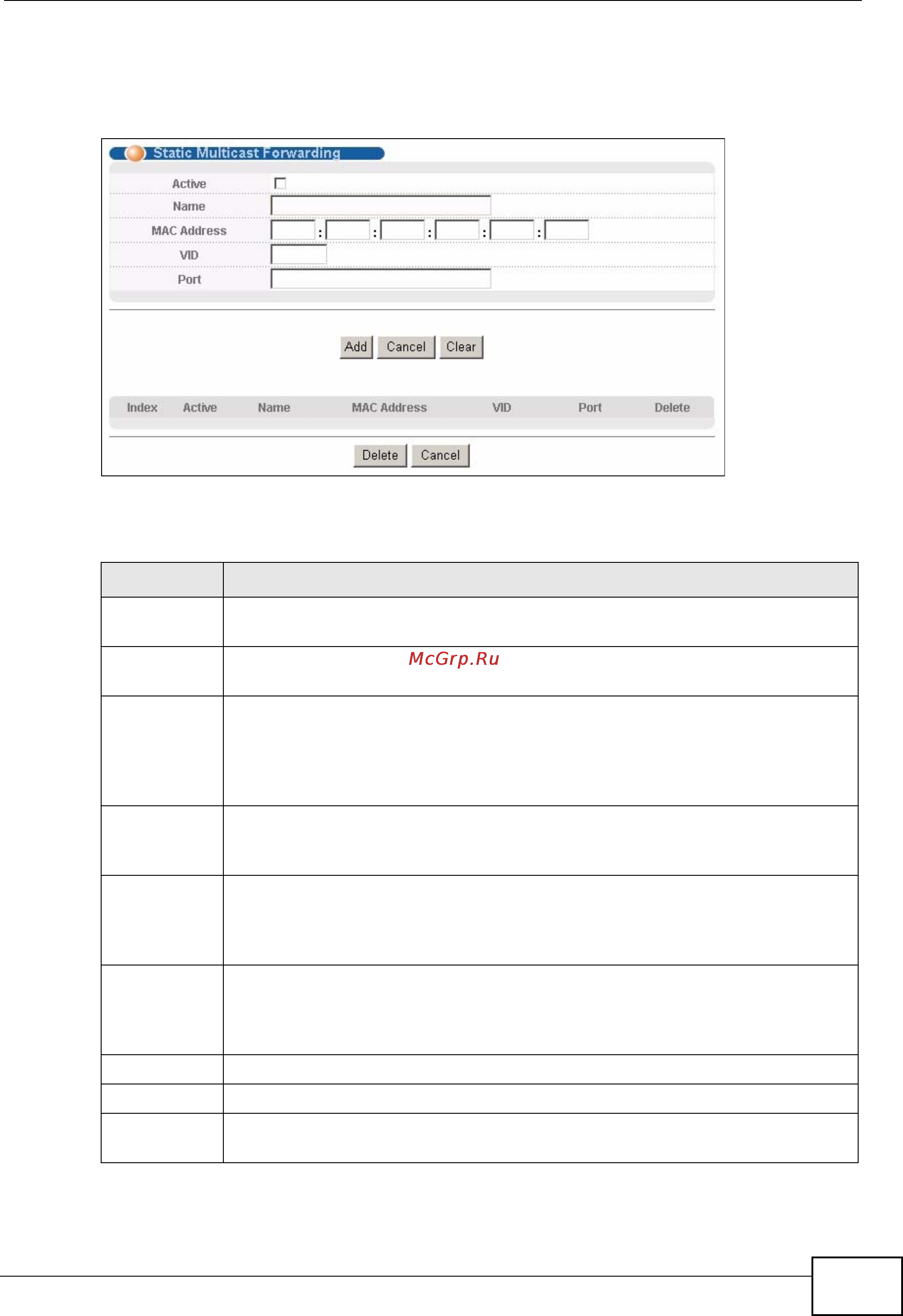

Figure 54 Advanced Application > Static Multicast Forwarding
The following table describes the labels in this screen.
Table 24 Advanced Application > Static Multicast Forwarding
LABEL DESCRIPTION
Active Select this check box to activate your rule. You may temporarily deactivate
a rule without deleting it by clearing this check box.
Name Type a descriptive name (up to 32 printable ASCII characters) for this
static multicast MAC address forwarding rule. This is for identification only.
MAC Address Enter a multicast MAC address which identifies the multicast group. The
last binary bit of the first octet pair in a multicast MAC address must be 1.
For example, the first octet pair 00000001 is 01 and 00000011 is 03 in
hexadecimal, so 01:00:5e:00:00:0A and 03:00:5e:00:00:27 are valid
multicast MAC addresses.
VID You can forward frames with matching destination MAC address to port(s)
within a VLAN group. Enter the ID that identifies the VLAN group here. If
you don’t have a specific target VLAN, enter 1.
Port Enter the port(s) where frames with destination MAC address that matched
the entry above are forwarded. You can enter multiple ports separated by
(no space) comma (,) or hyphen (-). For example, enter “3-5” for ports 3,
4, and 5. Enter “3,5,7” for ports 3, 5, and 7.
Add Click Add to save your rule to the Switch’s run-time memory. The Switch
loses this rule if it is turned off or loses power, so use the Save link on the
top navigation panel to save your changes to the non-volatile memory
when you are done configuring.
Cancel Click Cancel to reset the fields to their last saved values.
Clear Click Clear to begin configuring this screen afresh.
Index Click an index number to modify a static multicast MAC address rule for
port(s).
