Chapter 29 Layer 2 Protocol Tunneling
XGS-4526/4528F/4728F User’s Guide
293
29.2 Configuring Layer 2 Protocol Tunneling
Click Advanced Application > Layer 2 Protocol Tunneling in the navigation
panel to display the screen as shown.

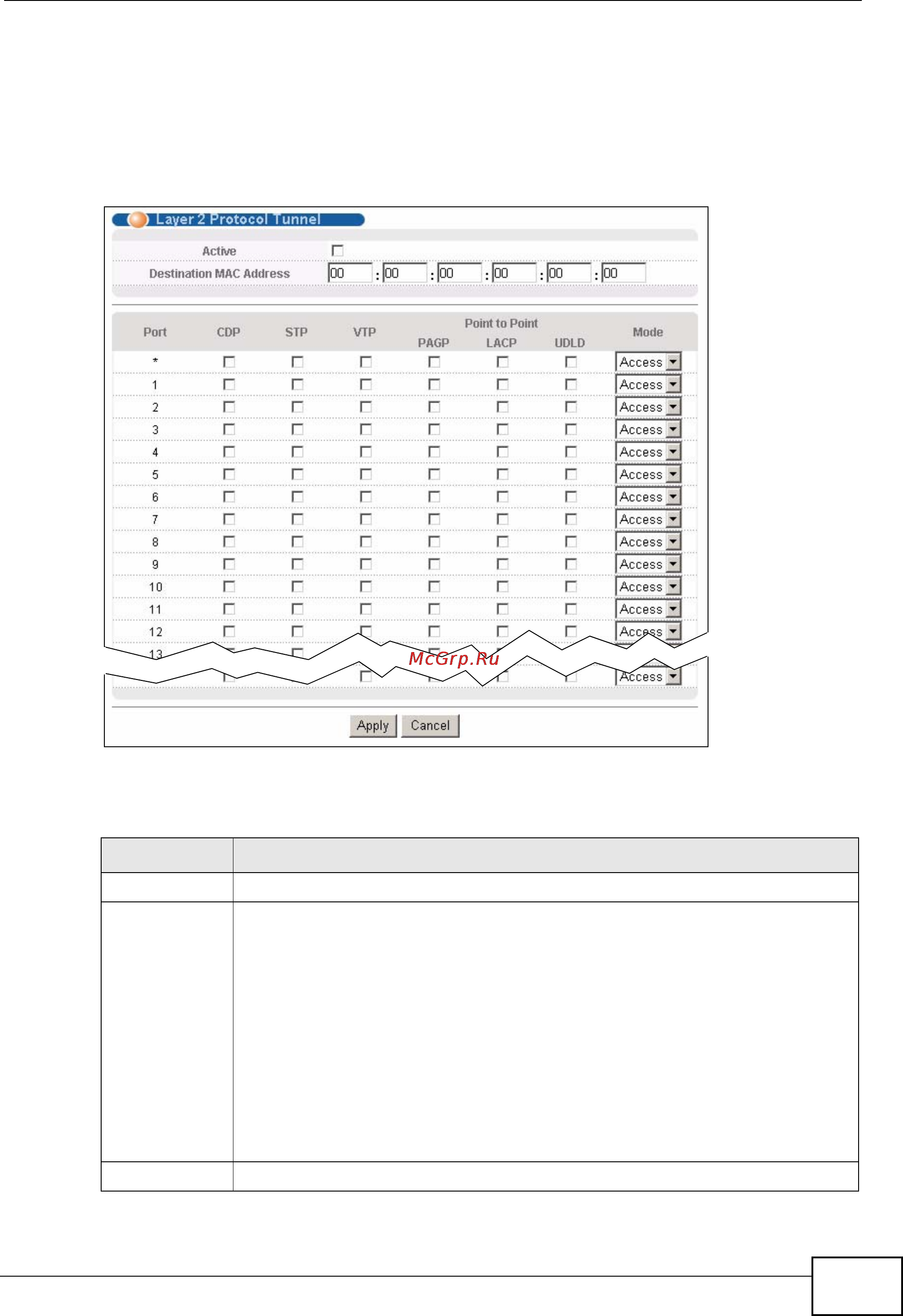

Figure 139 Advanced Application > Layer 2 Protocol Tunneling
The following table describes the labels in this screen.
Table 92 Advanced Application > Layer 2 Protocol Tunneling
LABEL DESCRIPTION
Active Select this to enable layer-2 protocol tunneling on the Switch.
Destination
MAC Address
Specify an MAC address with which the Switch uses to encapsulate the
layer-2 protocol packets by replacing the destination MAC address in the
packets.
Note: The MAC address can be either a unicast MAC address or
multicast MAC address. If you use a unicast MAC address,
make sure the MAC address does not exist in the address
table of a switch on the service provider’s network.
Note: All the edge switches in the service provider’s network should
be set to use the same MAC address for encapsulation.
Port This field displays the port number.
