Chapter 6 Tutorials
XGS-4526/4528F/4728F User’s Guide
90
6.7 How to Configure Routing Policy

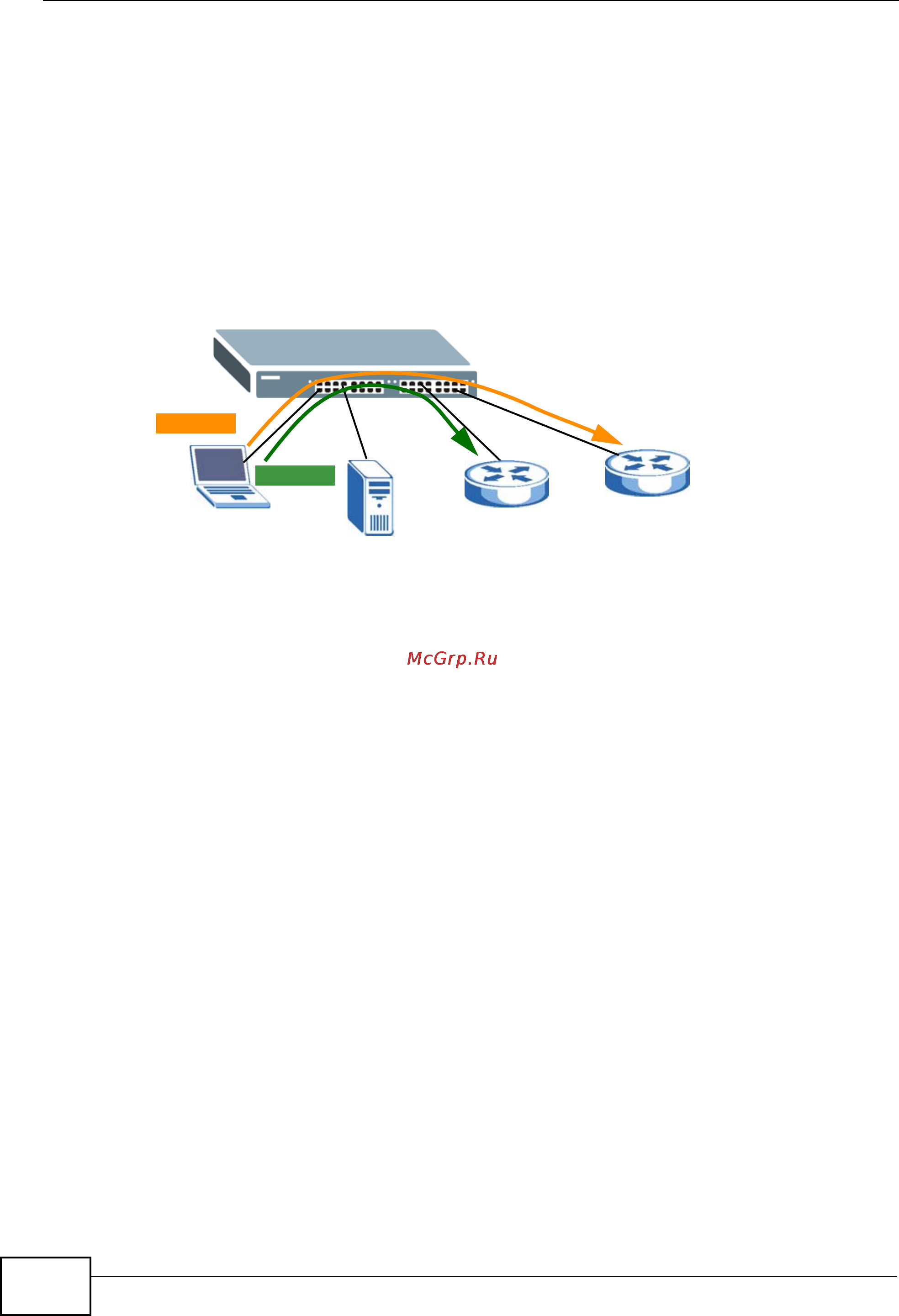

The Switch checks the routing table and then forwards traffic through the default
gateway (R1) based on the destination address. This example shows you how to
configure policy route to send traffic that matches a layer-3 classifier to a different
gateway (R2) for special treatment. The layer-3 classifier groups packets marked
with DSCP value 58 into a flow. Packets marked with different DSCP values, such
as 13 are forwarded to the default gateway. The Switch applies policy-based
routing rules to incoming packets prior to the normal routing.
6.7.1 Create a Layer-3 Classifier
Follow the steps below to configure a classifier that sorts traffic with DSCP value
58 into a data flow.
1 Access the web configurator through the Switch’s management port.
2 Go to Advanced Application > Classifier and select Active.
Enter a descriptive name (“DSCP58” in this example).
Select the second option of DSCP and enter 58 in the field provided.
R1
R2
DSCP 58
DSCP 13
