Chapter 6 Tutorials
XGS-4526/4528F/4728F User’s Guide
80

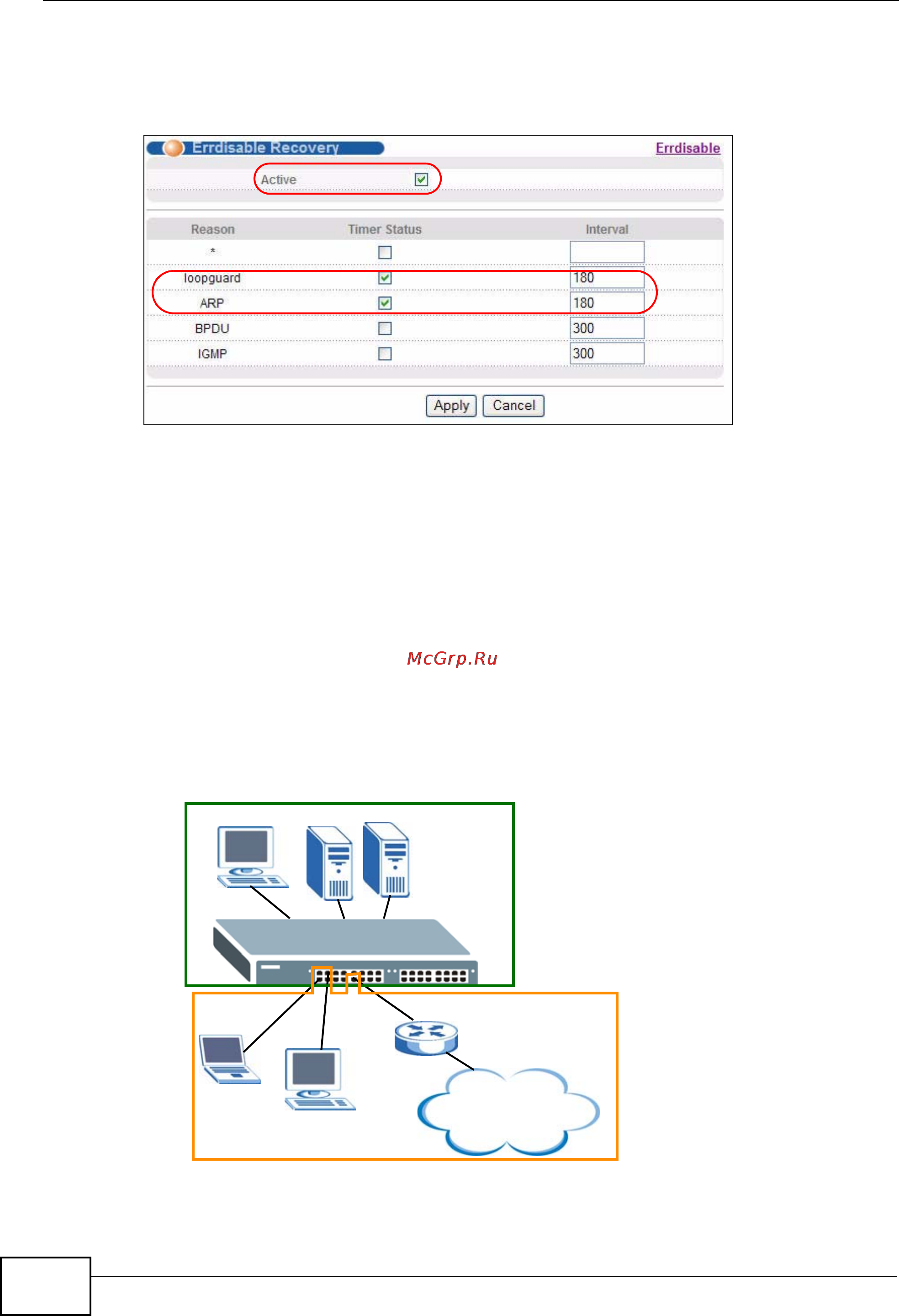

4 Click Advanced Application > Errdisable > Errdisable Recovery, select
Active and Timer Status for loopguard and ARP entries. Also enter 180 (180
seconds = 3 minutes) in the Interval field for both entries. Then click Apply.
6.5 How to Set Up a Guest VLAN
All ports on the Switch are in VLAN 1 by default. Say you enable IEEE 802.1x
authentication on ports 1 to 8. Clients that connect to these ports should provide
the correct user name and password in order to access the ports. You want to
assign clients that connect to ports 1, 2 or 3 to a guest VLAN (200 for example)
before they can authenticate with the authentication server. In this guest VLAN,
clients can surf the Internet through the default gateway attached to port 10, but
are not allowed to access other network resources, such as the mail server or local
data base.
Internet
Guest VLAN 200
Ports 1, 2, 3 and 10
VLAN 1
