Chapter 13 Spanning Tree Protocol
XGS-4526/4528F/4728F User’s Guide
154
The following table describes the labels in this screen.
13.4 Configure Rapid Spanning Tree Protocol
Use this screen to configure RSTP settings, see Section 13.1 on page 147 for more
information on RSTP. Click RSTP in the Advanced Application > Spanning
Tree Protocol screen.

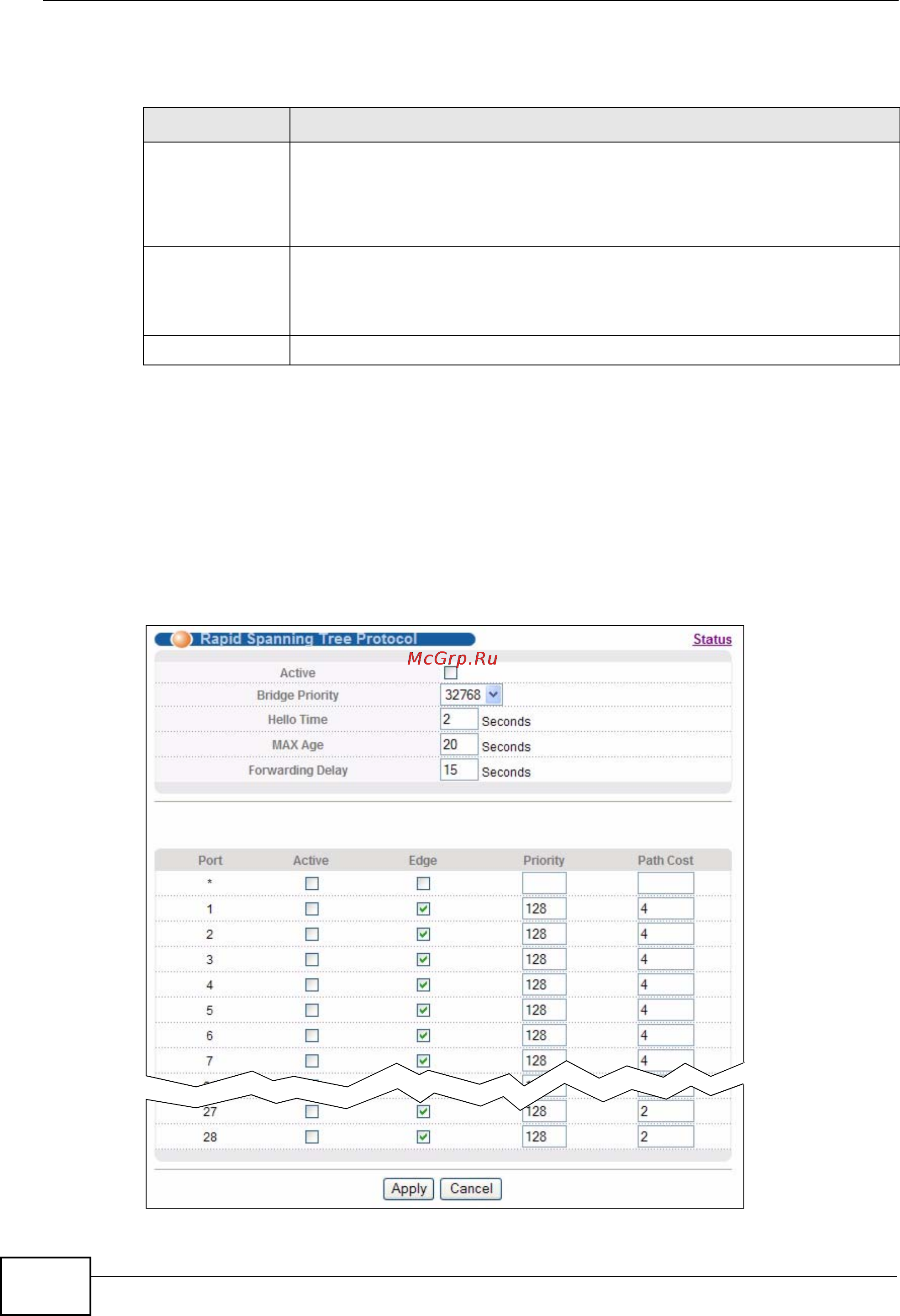

Figure 63 Advanced Application > Spanning Tree Protocol > RSTP
Table 28 Advanced Application > Spanning Tree Protocol > Configuration
LABEL DESCRIPTION
Spanning Tree
Mode
You can activate one of the STP modes on the Switch.
Select Rapid Spanning Tree, Multiple Rapid Spanning Tree or
Multiple Spanning Tree. See Section 13.1 on page 147 for
background information on STP.
Apply Click Apply to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
