Chapter 5 Initial Setup Example
XGS-4526/4528F/4728F User’s Guide
61
3 Since the VLAN2 network is connected to port 1 on the Switch, select Fixed to
configure port 1 to be a permanent member of the VLAN only.
4 To ensure that VLAN-unaware devices (such as computers and hubs) can receive
frames properly, clear the TX Tagging check box to set the Switch to remove
VLAN tags before sending.
5 Click Add to save the settings to the run-time memory. Settings in the run-time
memory are lost when the Switch’s power is turned off.
5.1.4 Setting Port VID
Use PVID to add a tag to incoming untagged frames received on that port so that
the frames are forwarded to the VLAN group that the tag defines.
In the example network, configure 2 as the port VID on port 1 so that any
untagged frames received on that port get sent to VLAN 2.

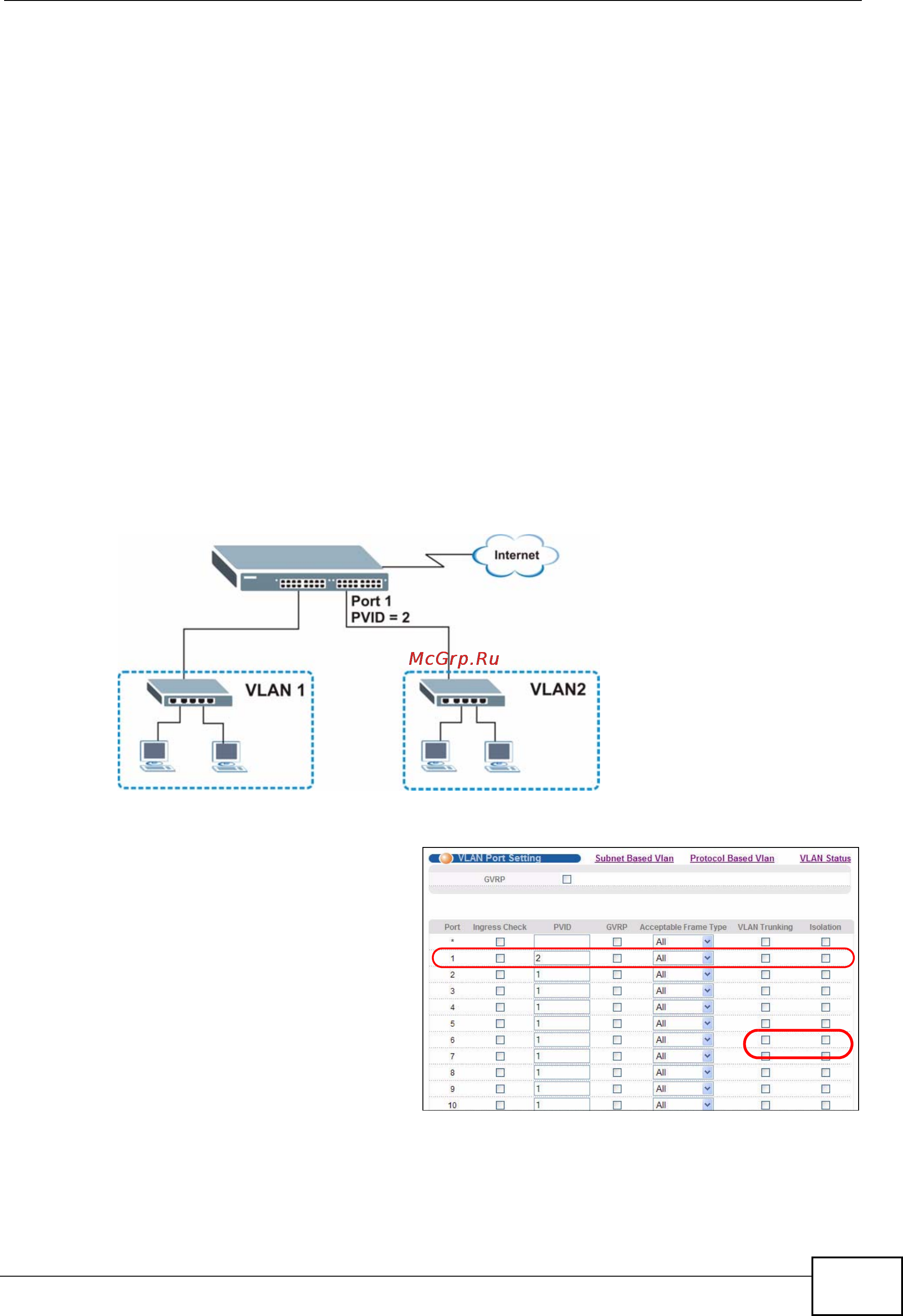

Figure 26 Initial Setup Network Example: Port VID
1 Click Advanced Applications
and VLAN in the navigation
panel. Then click the VLAN Port
Setting link.
2 Enter 2 in the PVID field for port
1 and click Apply to save your
changes back to the run-time
memory. Settings in the run-time
memory are lost when the
Switch’s power is turned off.
EXAMPLE
