Chapter 37 OSPF

XGS-4526/4528F/4728F User’s Guide

338

To configure an area, set the related fields in the OSPF Configuration screen.

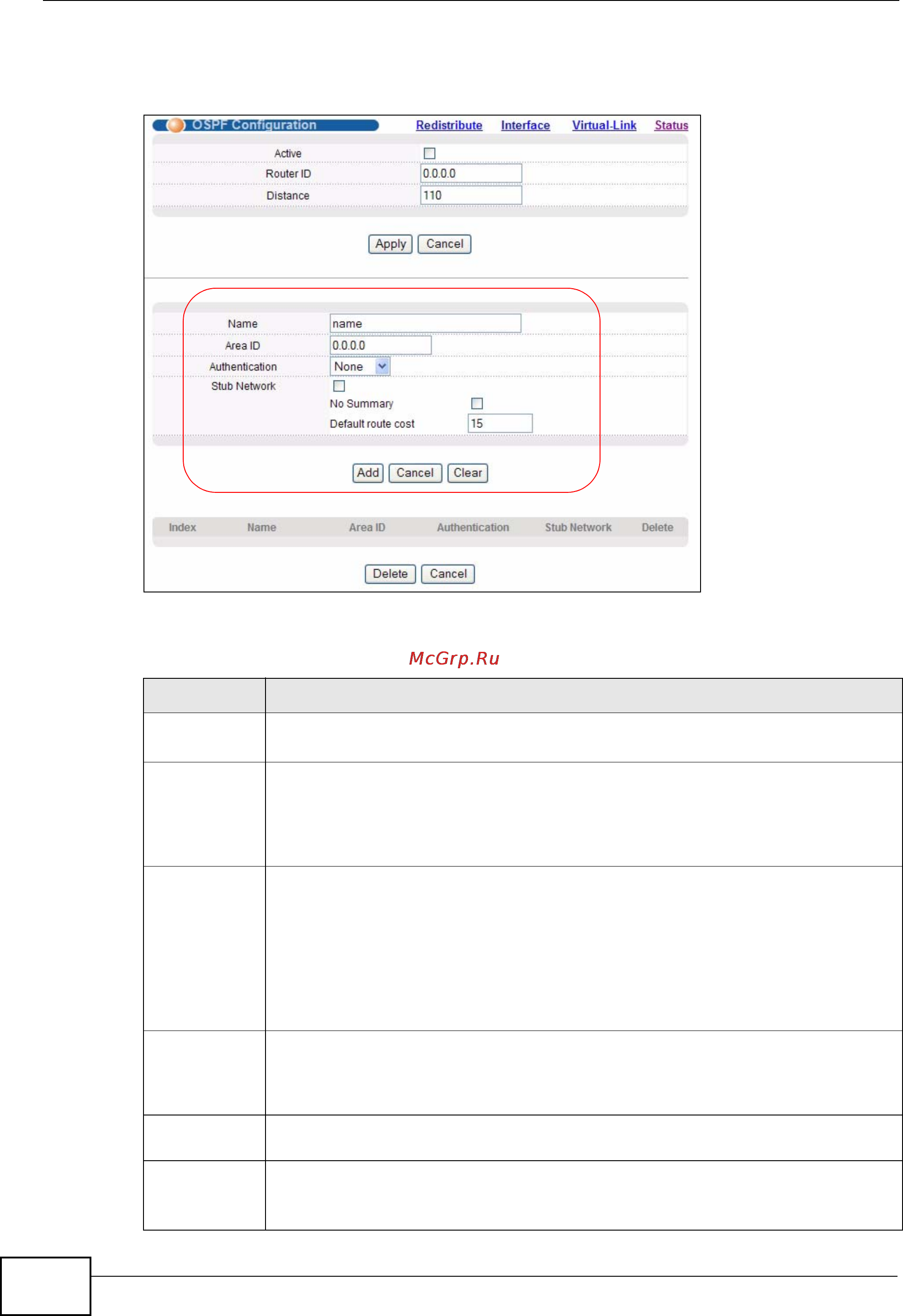

Figure 163 IP Application > OSPF Configuration: Area Setup

The following table describes the related labels in this screen.

Table 118 IP Application > OSPF Configuration: Area Setup

LABEL DESCRIPTION

Name Enter a descriptive name (up to 32 printable ASCII characters) for

identification purposes.

Area ID Enter a 32-bit ID (that uses the format of an IP address in dotted decimal

notation) that uniquely identifies an area.

A value of 0.0.0.0 indicates that this is a backbone (also known as Area 0).

You can create only one backbone area on the Switch.

Authenticati

on

Select an authentication method (Simple or MD5) to activate

authentication. Select None (default) to disable authentication.

Usually interface(s) and virtual interface(s) should use the same

authentication method as the associated area. If interface(s) and virtual

interface(s) use different authentication methods than the associated area,

the authentication methods are based on the interface(s) and virtual

interface(s) settings.

Stub

Network

Select this option to set the area as a stub area.

If you enter 0.0.0.0 in the Area ID field, the settings in the Stub Area

fields are ignored.

No

Summary

Select this option to set the Switch to not send/receive LSAs.

Default

Route

Cost

Specify a cost (between 0 and 16777215) used to add a default route into

a stub area for routes which are external to an OSPF domain. If you do not

set a route cost, no default route is added.
