Chapter 24 Multicast
XGS-4526/4528F/4728F User’s Guide
240
24.8.1 MVR Configuration Example
The following figure shows a network example where ports 1, 2 and 3 on the
Switch belong to VLAN 1. In addition, port 7 belongs to the multicast group with
VID 200 to receive multicast traffic (the News and Movie channels) from the
remote streaming media server, S. Computers A, B and C in VLAN 1 are able to
receive the traffic.

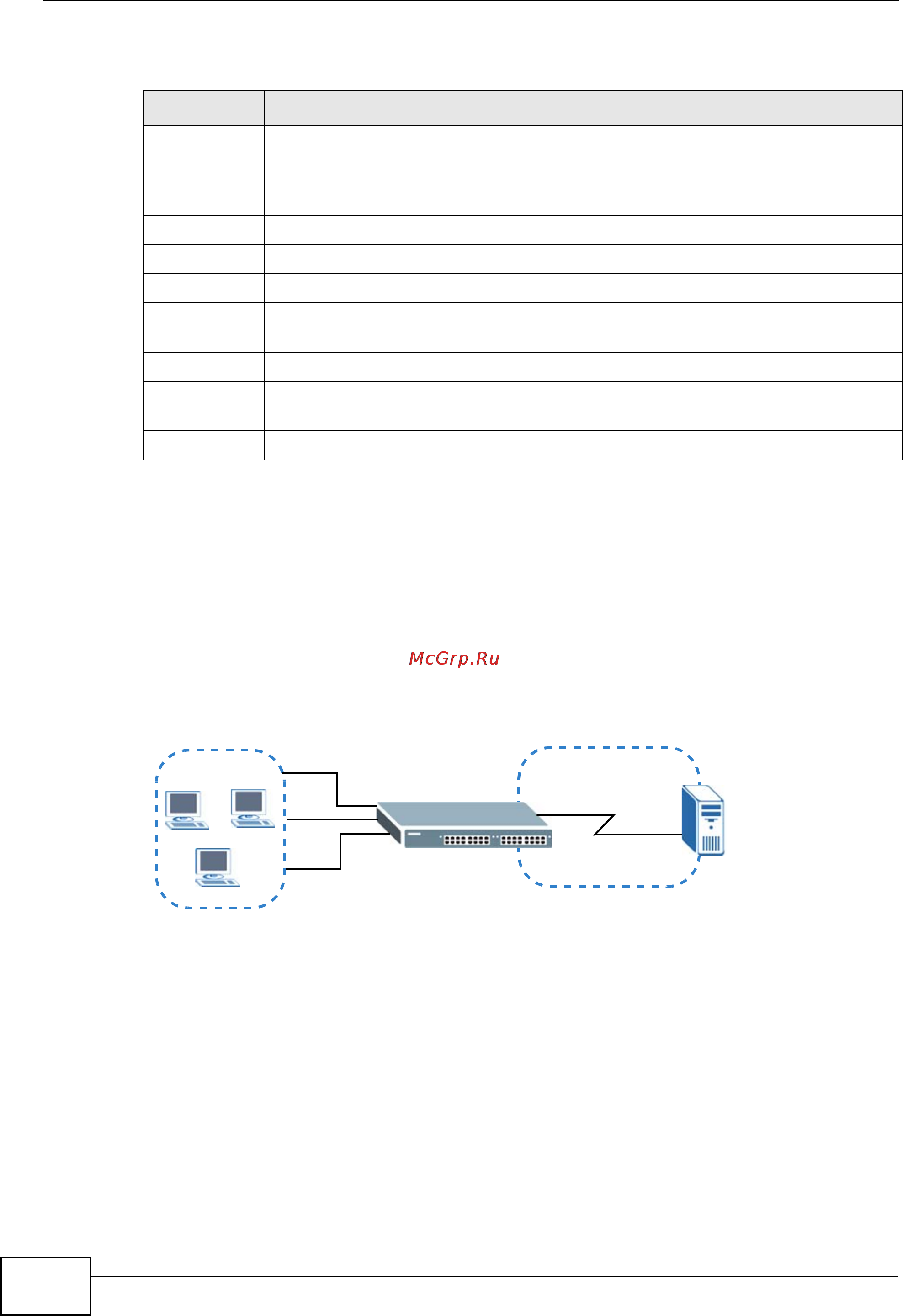

Figure 106 MVR Configuration Example
Add Click Add to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
MVLAN This field displays the multicast VLAN ID.
Name This field displays the descriptive name for this setting.
Start
Address
This field displays the starting IP address of the multicast group.
End Address This field displays the ending IP address of the multicast group.
Delete Select Delete All or Delete Group and click Delete to remove the
selected entry(ies) from the table.
Cancel Select Cancel to clear the checkbox(es) in the table.
Table 67 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
LABEL DESCRIPTION
S
Multicast VID 200
VLAN 1
A
B
C
News: 224.1.4.10 ~ 224.1.4.50
1
Movie: 230.1.2.50 ~230.1.2.60
2
3
7
