Chapter 26 IP Source Guard
XGS-4526/4528F/4728F User’s Guide
274
26.6 ARP Inspection Status
Use this screen to look at the current list of MAC address filters that were created
because the Switch identified an unauthorized ARP packet. When the Switch
identifies an unauthorized ARP packet, it automatically creates a MAC address
filter to block traffic from the source MAC address and source VLAN ID of the
unauthorized ARP packet. To open this screen, click Advanced Application > IP
Source Guard > ARP Inspection.

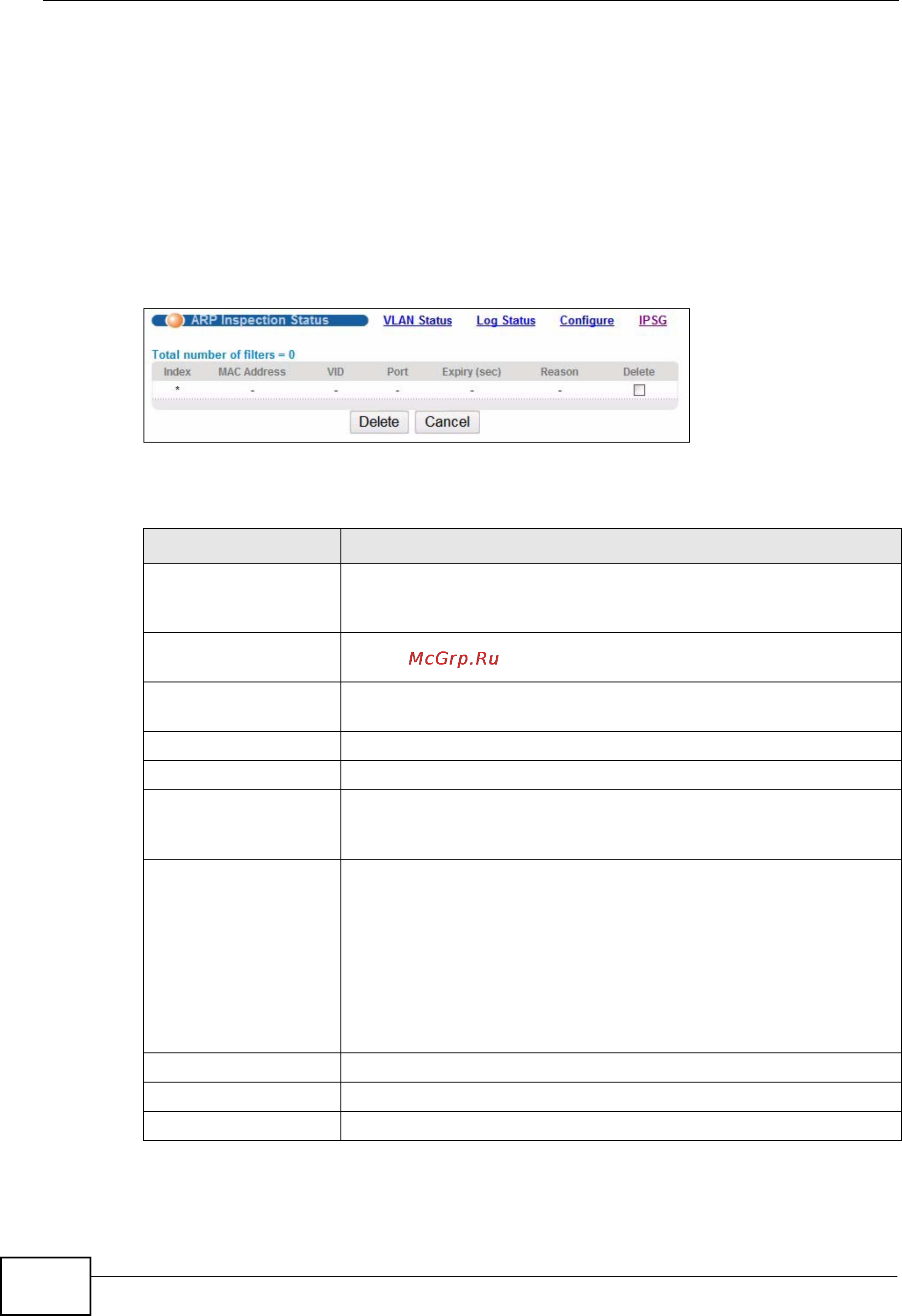

Figure 123 ARP Inspection Status
The following table describes the labels in this screen.
Table 83 ARP Inspection Status
LABEL DESCRIPTION
Total number of filters This field displays the current number of MAC address filters that
were created because the Switch identified unauthorized ARP
packets.
Index This field displays a sequential number for each MAC address
filter.
MAC Address This field displays the source MAC address in the MAC address
filter.
VID This field displays the source VLAN ID in the MAC address filter.
Port This field displays the source port of the discarded ARP packet.
Expiry (sec) This field displays how long (in seconds) the MAC address filter
remains in the Switch. You can also delete the record manually
(Delete).
Reason This field displays the reason the ARP packet was discarded.
MAC+VLAN: The MAC address and VLAN ID were not in the
binding table.
IP: The MAC address and VLAN ID were in the binding table, but
the IP address was not valid.
Port: The MAC address, VLAN ID, and IP address were in the
binding table, but the port number was not valid.
Delete Select this and click Delete to remove the specified entry.
Delete Click this to remove the selected entries.
Cancel Click this to clear the Delete check boxes above.
