Overview
10 309301K
FIG. 2

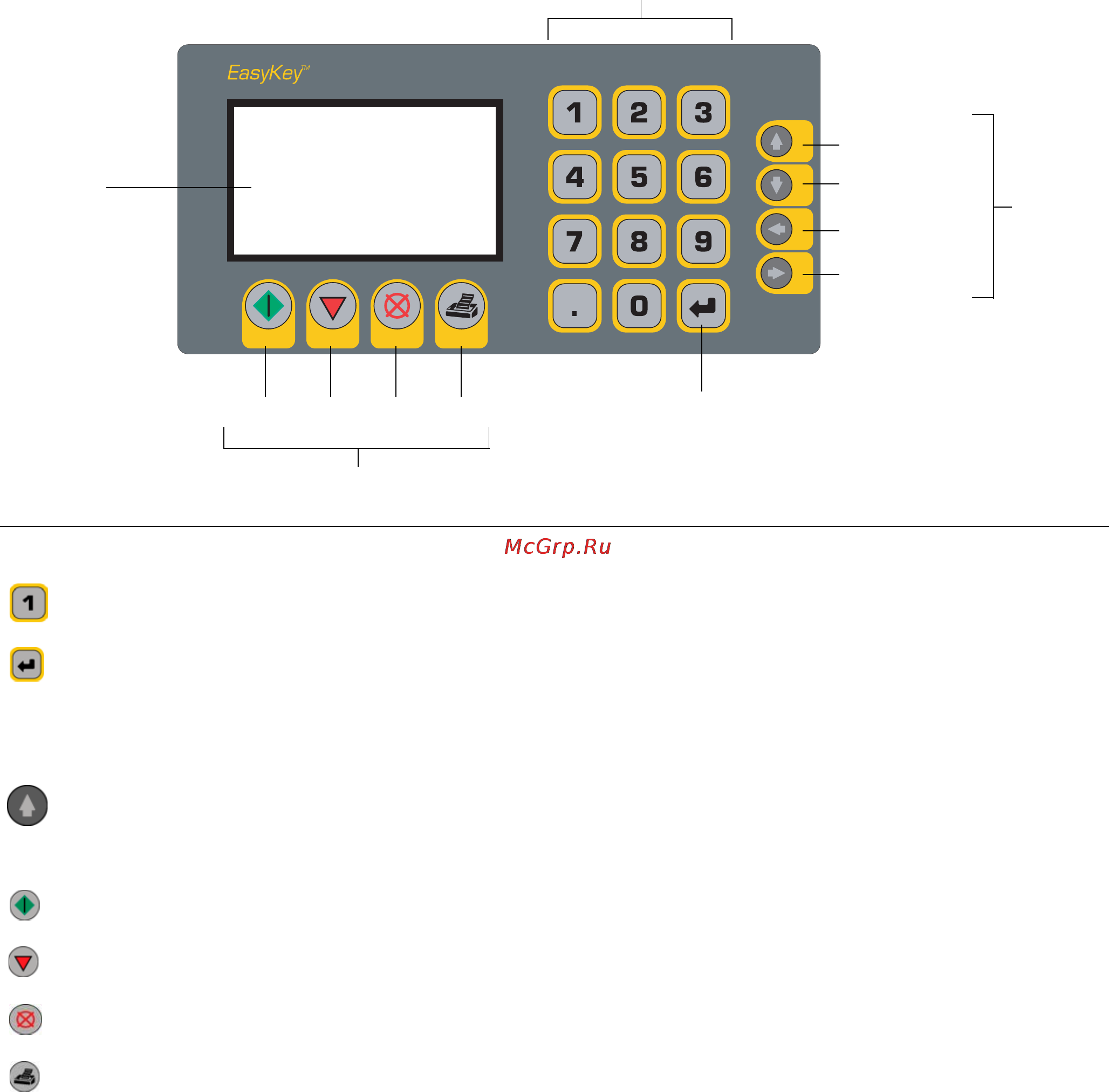

Number Keys — type in setup or operation data.
Enter Key — press to accept and enter data.
If you press a scrolling key without pressing Enter, the cursor will move to the next field and the information
you typed will reset back to the previous data.
Scrolling Keys — press the up or down arrows to move between fields on the screen. Use the left or right
arrows to move between screens.
Operation Keys — use to operate the ProDispense system functions.
Start—press to start the current recipe dispense.
Stop—press to stop the current process.
Clear—press to clear an entry in an input field.
Print—press to print a report.
Number Keys
Scrolling
Keys
Enter
Key
Display
Operation Keys
Start Stop Clear Print
Previous Field
Next Field
Previous Screen
Next Screen
