Installation
309301K 21
Connect a Printer (optional)
Connect the 5 ft. (1.52 m) printer cable (provided with printer kit 239873) between the printer and controller printer
connector marked . See F
IG. 5, page 15.
Connect to a PC or Alarm (optional)

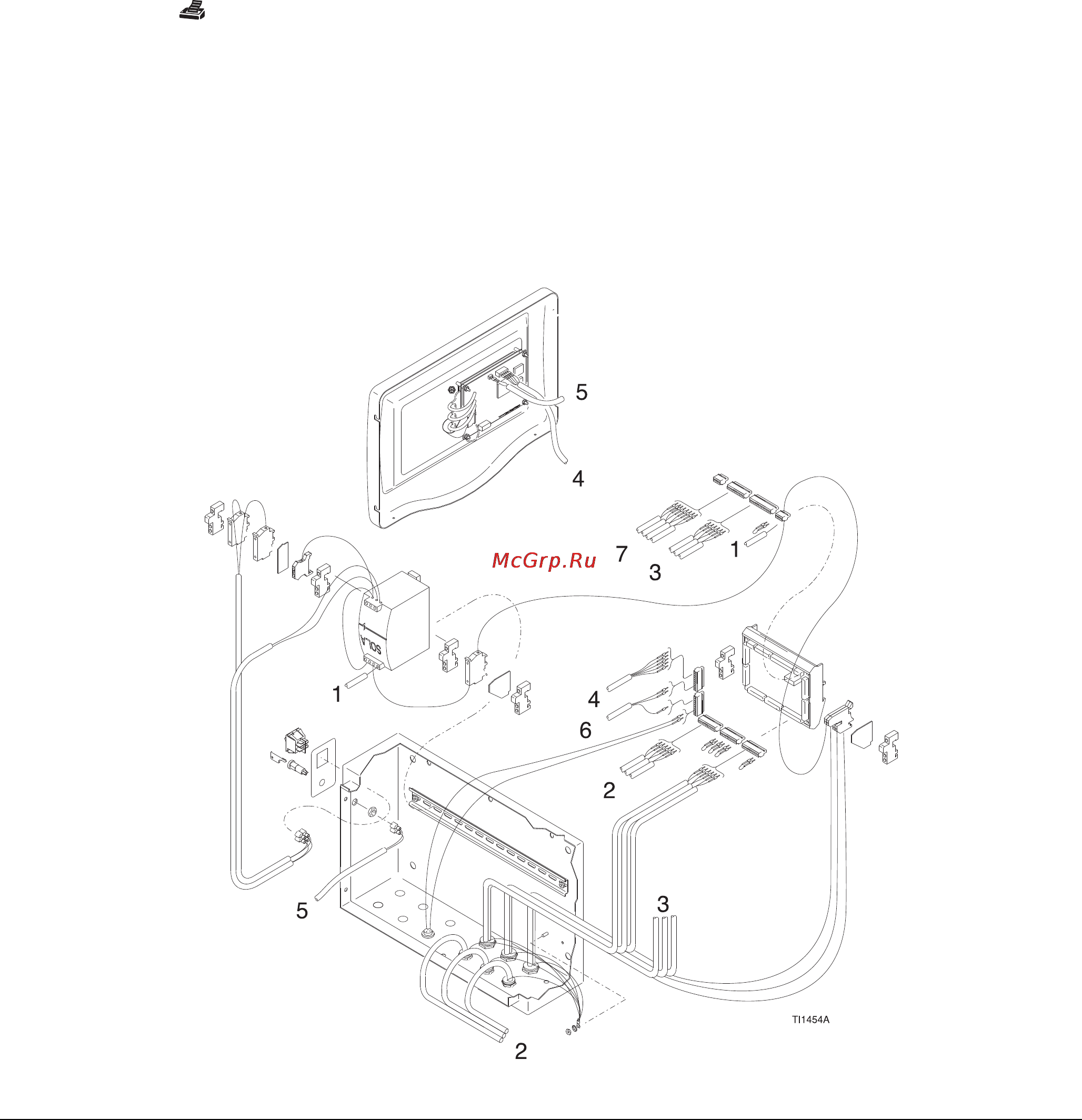

The ProDispense system can be connected to a PC via Modbus RTU network protocol (6) and/or audible alarms (7)
as shown in F
IG. 12. Refer to field wiring chart, page 60. Follow instructions on page 26 to setup modbus station
number and recipe selection. Contact your Graco distributor for Modbus address mapping list.
NOTE: Accessory Printer Cable 198669, 50 ft. (15.24 m) long, is available. Do not use longer cables.
