Installation
309301K 19
Connect the Cables and Power Cord
On the bottom of the controller, there are meter and solenoid cable connectors for three Fluid panels. The row of con-
nectors marked
1A, 2A, and 3A are for solenoid cable connections. The row of connectors marked 1B, 2B, and 3B are
for meter cable connections. Connect the cables as instructed below.

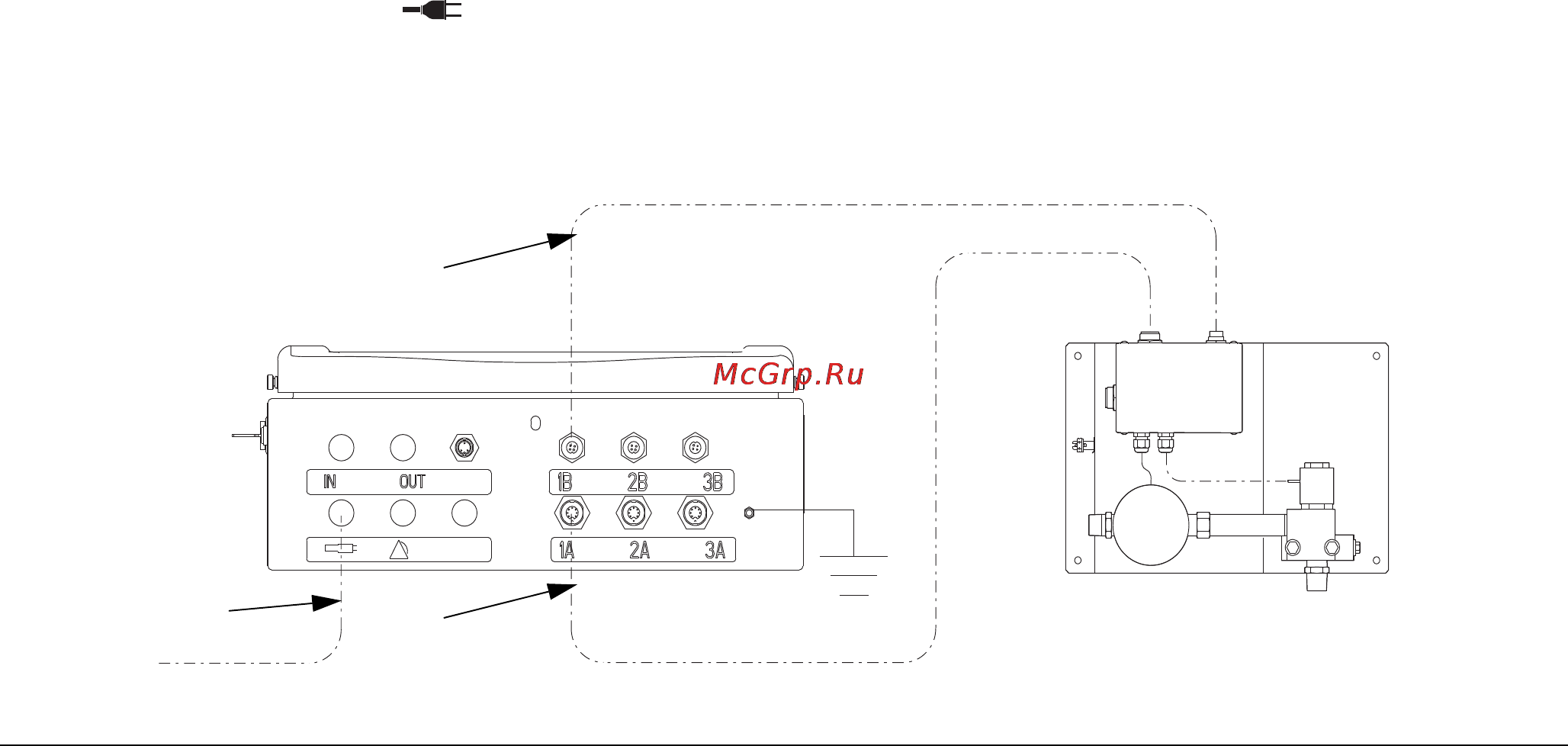

1. Connect the solenoid cable (E) between controller connector
1A and connector A on the first fluid panel.
2. Connect the meter cable (F) between controller connector
1B and connector B on the first fluid panel.
3. Repeat the cable connection for each of the fluid panels installed in the system (
2A to A, 2B to B, etc.).
NOTE: A knockout, marked , is provided for a customer supplied power input (P) cable with strain relief
or for wire conduit.
F
IG. 10
TI1438a
E
F
P
