Service
309301K 41

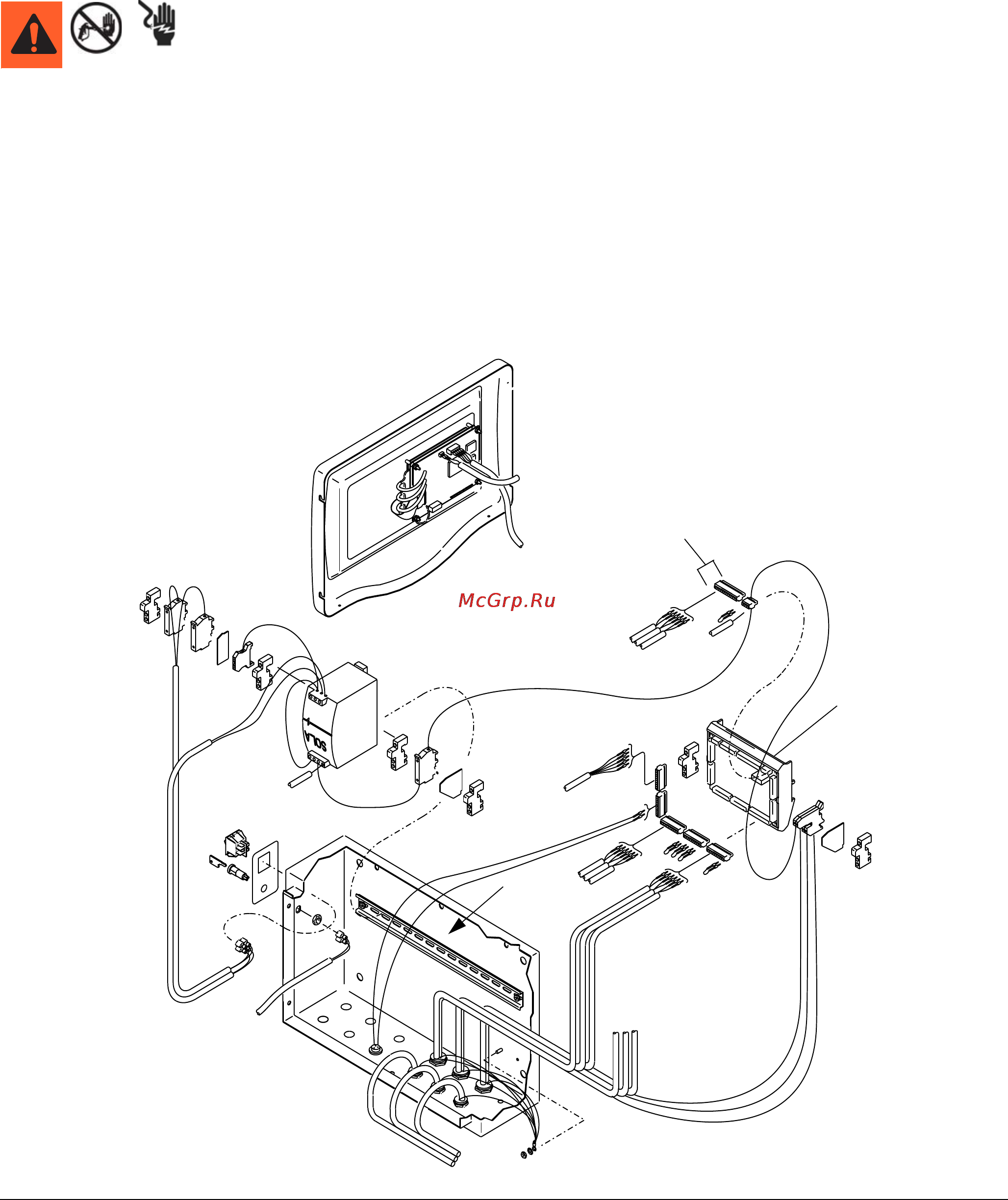

Replacing Main Board
1. Turn off controller power switch.
2. Remove controller cover. See page 37, steps 1-4.
3. Unplug all wire connectors (G) from the main board (H). See F
IG. 16.
4. Squeeze release clips and pull the main board (H) away from the din rail (J).
5. Install parts in reverse order of disassembly.
NOTE: If replacing software chip, use a chip puller to remove it.
F
IG. 16
G
J
H
