Overview
309301K 9
Main Components
ProDispense Controller
The controller is used to setup the ProDispense system, fluids, and recipes, calibrate the meters, and select a recipe
or preset a dispense. The controller totalizers enable you to view fluid dispense information and print the following
reports:
• Alarm history report
• Totals report
• Configuration Setup report
• Fluid Setup report
• Recipe Setup report
• Run report
Display and EasyKey™ Pad
The EasyKey™ pad is the operator interface for the ProDispense system. The keypad consists of number keys,
enter key, scrolling (arrow) keys, and operation (start, stop, clear, and print) keys.
The graphic LCD screen displays system status, setup information, and operation options that can be selected using
the keypad.

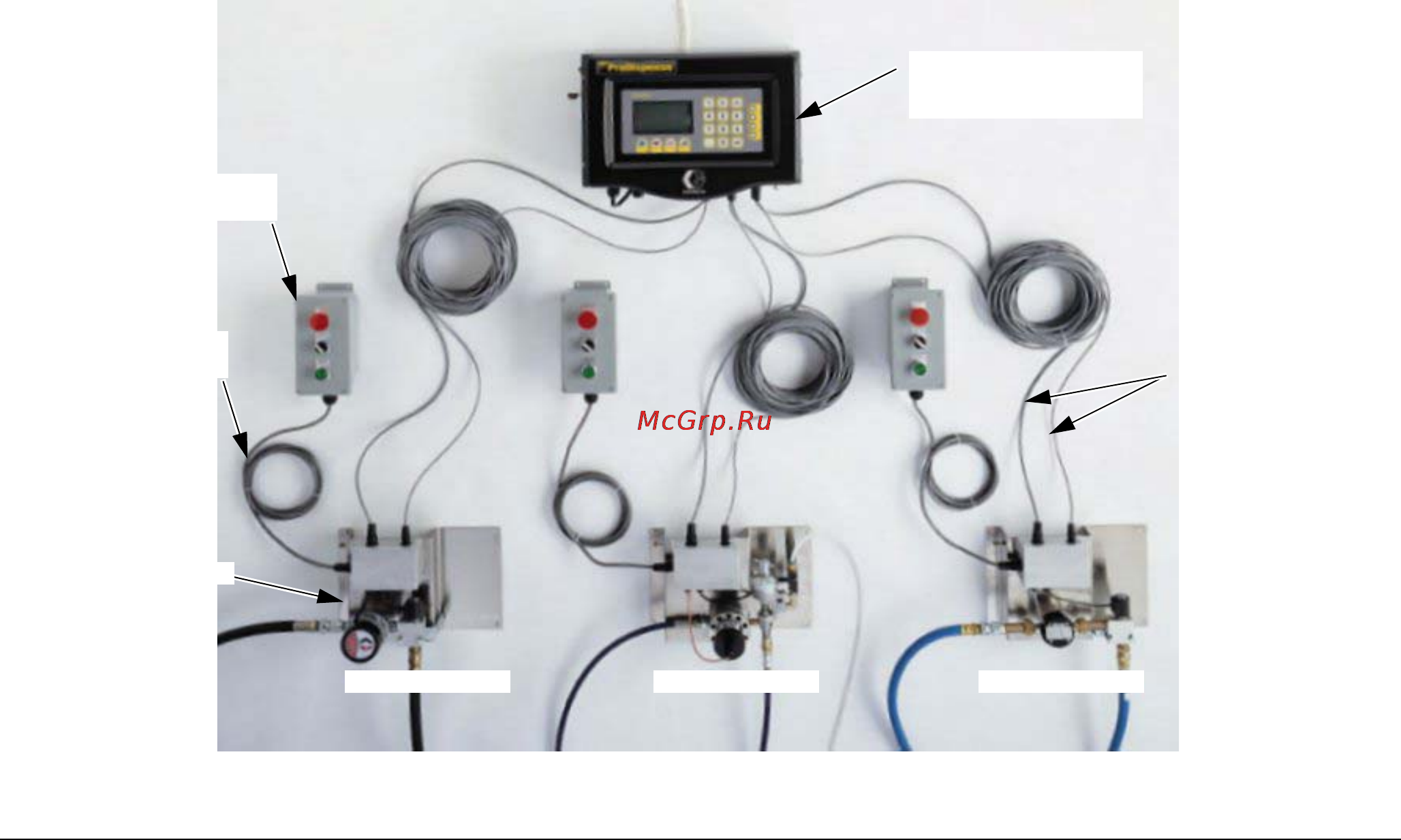

FIG. 1
ProDispense Controller
with display and
EasyKey™ pad
Remote
Operator Station
10’ (3.05 m) station
cable standard*
Fluid Panel
Oil/Lubricant Grease/Paint Water/Antifreeze
50’ (15.24 m) meter &
solenoid cables
*20’ (6.1 m) station cable extension 198456 is available.
