Installation
20 309301K

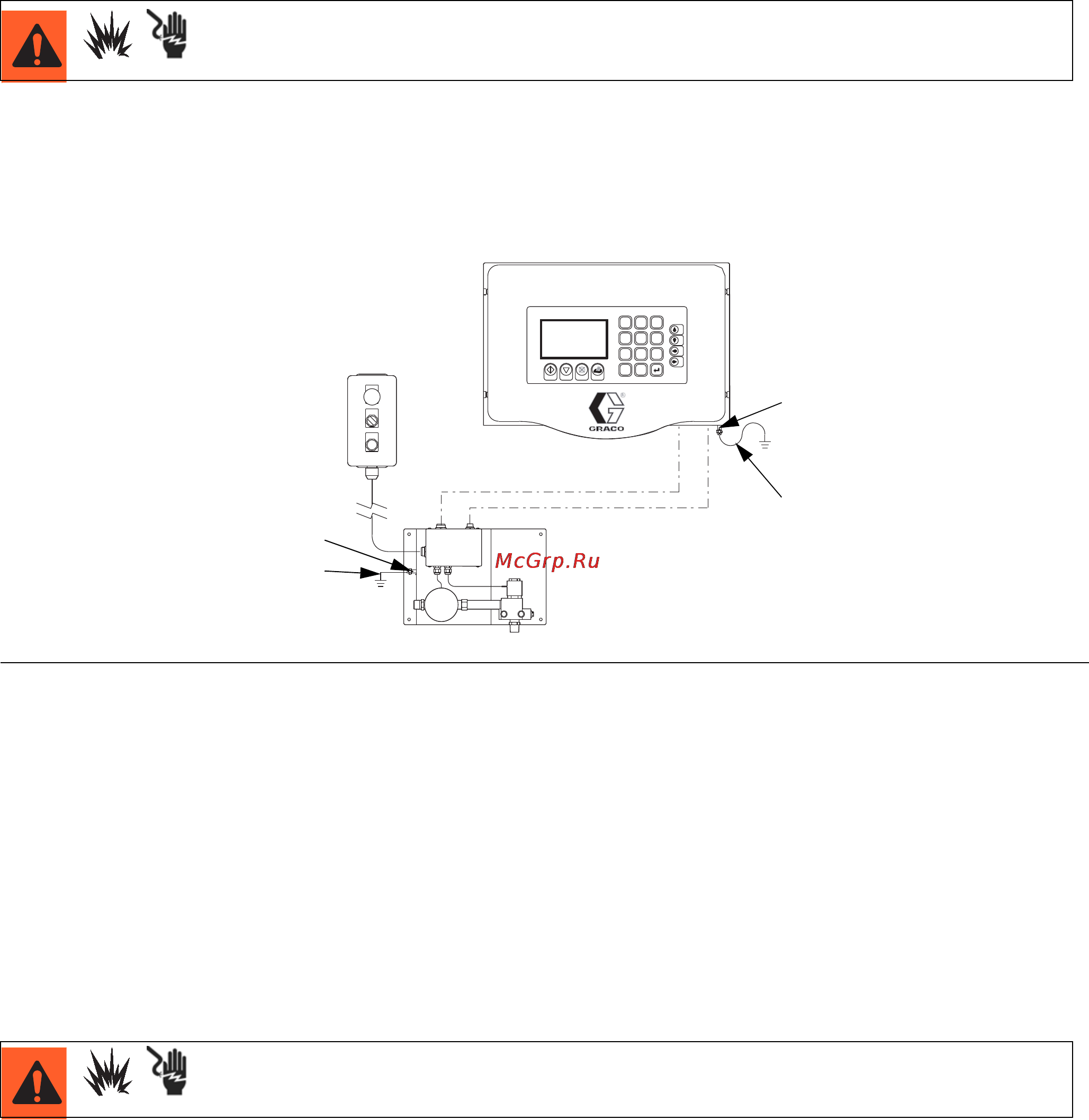

Ground the System
ProDispense Controller: Connect a ground wire (G1) to the grounding lug (H1) on the bottom of the controller. Con-
nect the other end of the ground wire to a true earth ground.
Fluid Panels: Connect a ground wire (G) to the grounding lug (H) on the junction box bracket. Connect the other end
of the ground wire to a true earth ground.
Feed Pumps or Pressure Pots: See your separate pump or pressure pot manual.
Air and Fluid Hoses: Use only grounded hose.
Fluid Supply Container: Ground the container according to your local code.
Solvent Pails Used when Purging: Ground pails according to your local code. Use conductive, metal pails, placed on a
grounded surface. Do not place pails on nonconductive surfaces, such as paper or cardboard.
Check the Resistance
Have a qualified electrician check the resistance between each ProDispense component and true earth ground. If the
resistance is 1 ohm or greater, a different ground site may be required. Do not operate the system until the problem
has been corrected.
The system must be properly grounded. Follow the instructions here and on page 6.
F
IG. 11
456
123
789
.
0
EasyKey
TM
TI1439a
G1
H1
G
H
NOTE: To reduce the risk of fire, explosion, or electric shock, the resistance between
the ProBatch components and true earth ground must be less than 1 ohm.
