Graco ProDispense [39/74] Replacing display board
![Graco ProDispense [39/74] Replacing display board](/views2/1193399/page39/bg27.png)
Service
309301K 39
Replacing Display Board
1. Turn off controller power switch.
2. Remove controller cover (A). See page 37, steps 1-4.
3. Unplug keypad (D) ribbon cable from the display board. Note position of cable in connec-
tor. Arrow indicates pin #1, reconnect with pin #1 engaged.
4. Remove four nuts (C1) from the board. See F
IG. 15.
5. Disconnect ground wire.
6. Unplug three fiber optic connectors (C3) from the diodes, then remove display board (F).
7. Install parts in reverse order of disassembly.
• If replacing software chip, use a chip puller to remove it.
• Spacers (G) must be used in correct positions to protect the display and board.

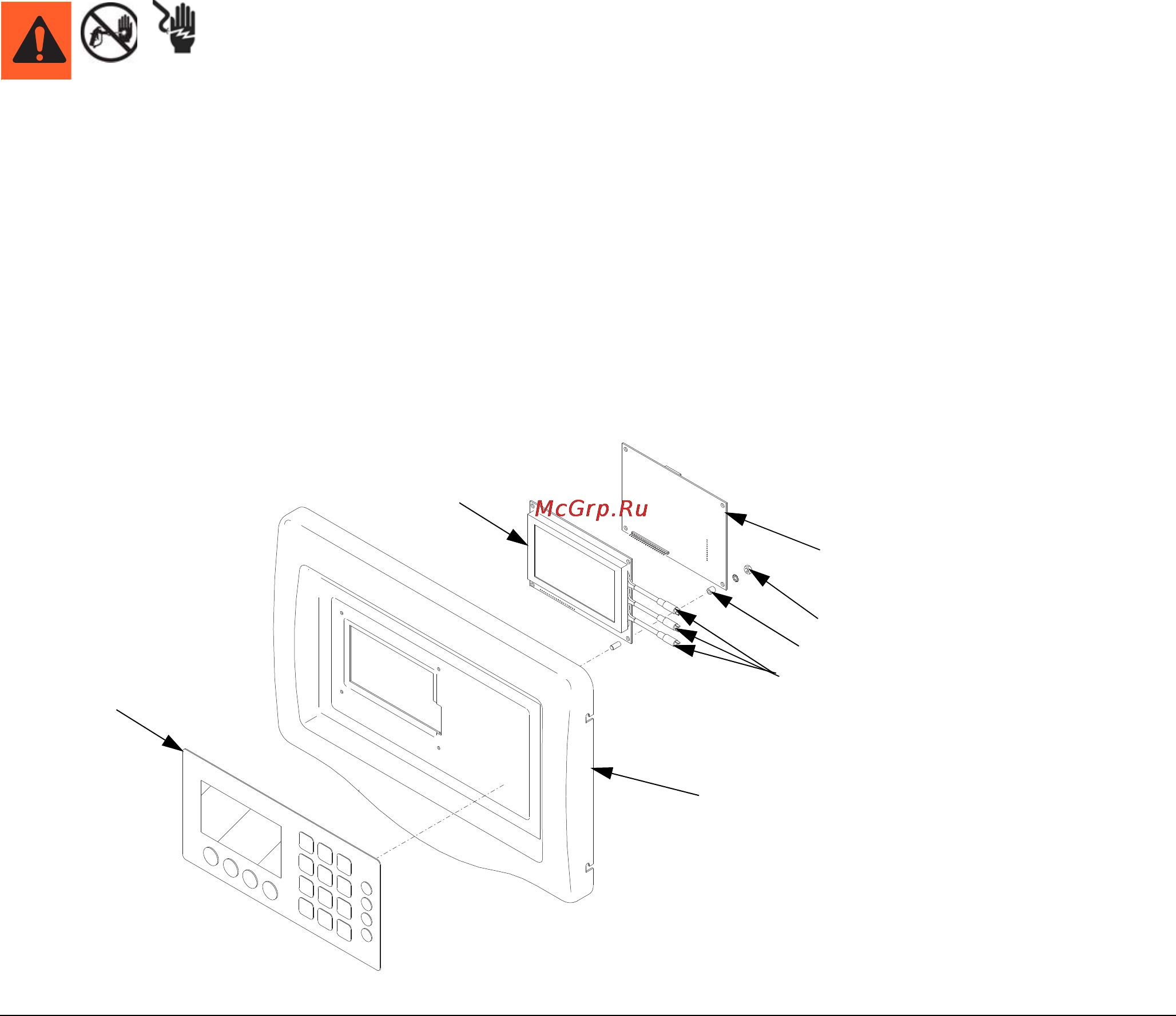

F
IG. 15
TI1056A
D
A
C3
C1
C
F
G
