Installation
309301K 15
Install the Fluid Supplies
The ProDispense fluid panels can be supplied by pressure tanks, pail or drum pumps, or central recirculating lines.
The fluid supply must be free of pressure spikes, commonly caused by a pump stroke changeover. If necessary,
install pressure regulators or a surge tank on the fluid supply outlets. Note that this will also reduce the fluid supply
pressure.

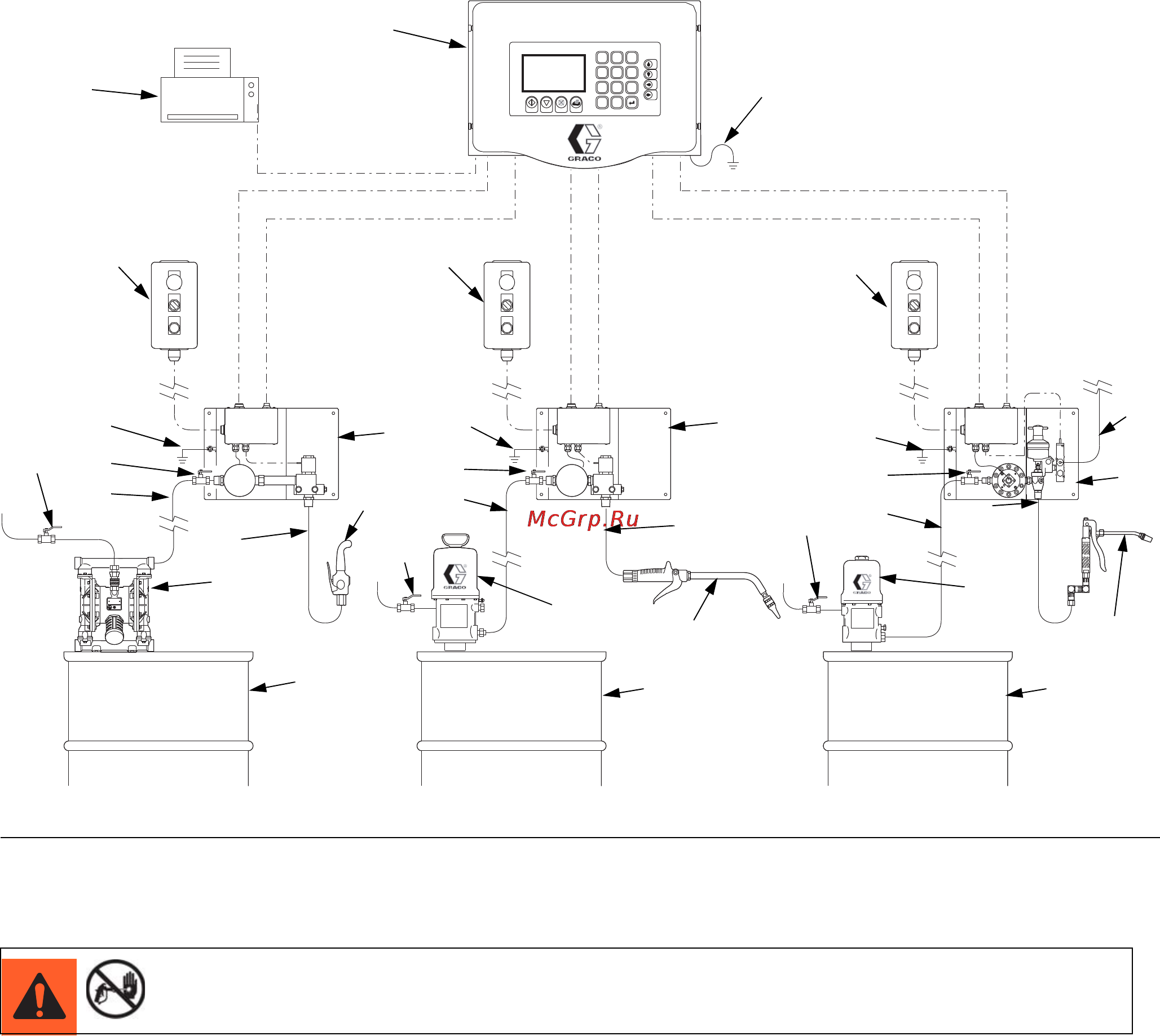

F
IG. 5 ProDispense System - Typical Installation
456
123
789
.
0
EasyKey
TM
ti1361a
1
2
8
3
5
6
7
4
12
10
10
11
9
15
2
2
10
10
14
13
7 7
6
14
11
13
12
9
9
12
11
13
6
14
For maintenance and safety, you must install:
• a fluid shutoff valve between each fluid supply line and the ProDispense fluid panel.
• a bleed-type air shutoff valve on the air supply line to the fluid supplies.
