Operation Procedures
309301K 35
Purging Fluid
Follow this procedure to purge the fluid lines:
Emergency Stop
1. Connect the fluid supply line to a solvent supply. Set the fluid supply pressure as low as possible
to avoid splashing.
2. To begin purging the lines, direct the fluid outlet into a grounded metal pail, turn the Operator Sta-
tion dispense switch to ON [and trigger the dispense valve].
3. Continue dispensing until fluid lines are clean.
4. Turn the dispense switch to AUTO or [release the dispense valve trigger] to stop dispensing.
5. If you are loading a new material, connect the fluid supply line to the new fluid supply, and follow
the procedure for Loading Fluid Lines.

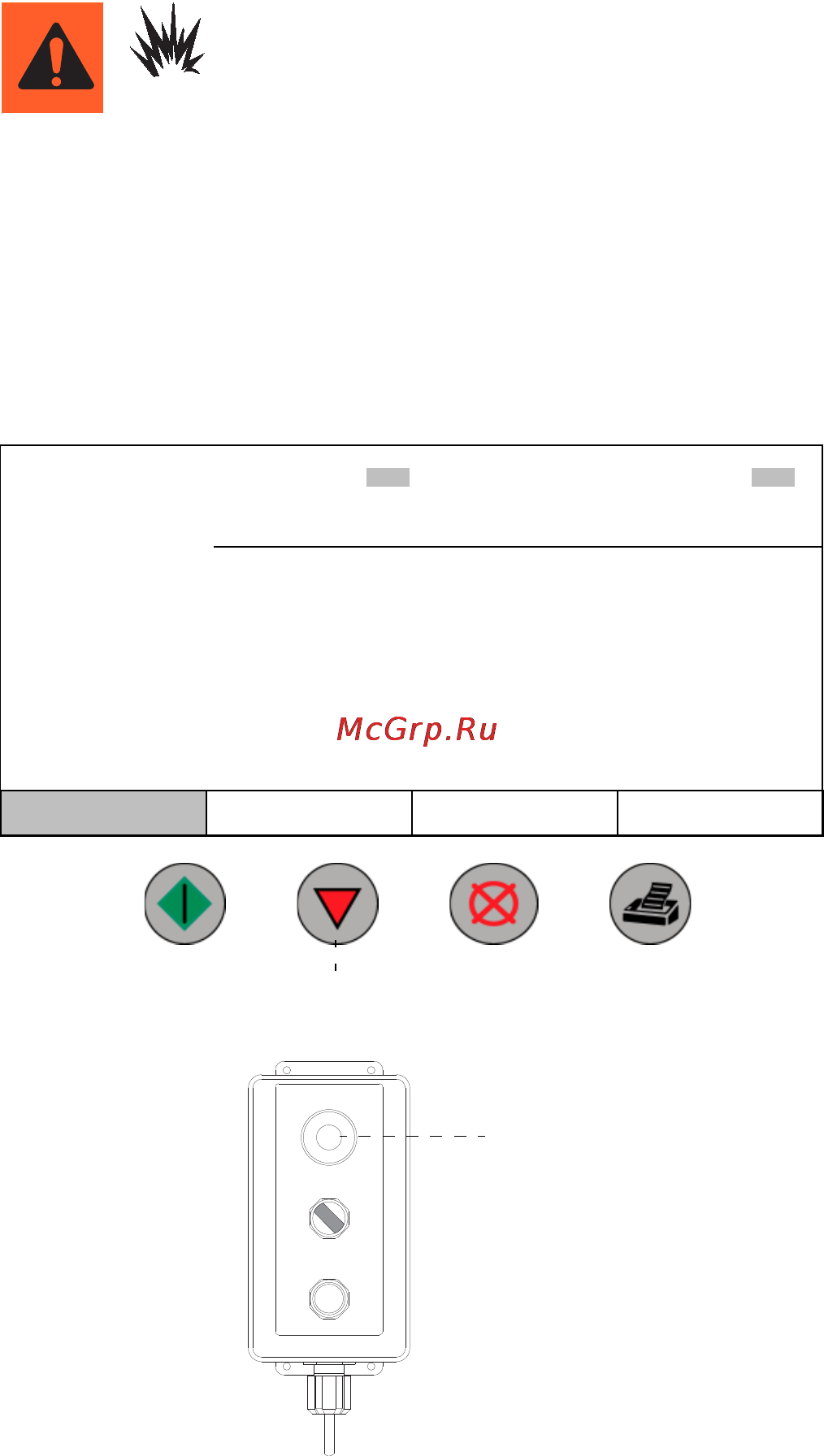

To stop fluid flow at all the fluid panels connected to the
controller, press the Stop button on the controller.
To stop fluid flow at an individual fluid panel, press the
STOP button on the Operator Station connected to the
fluid panel.
RECIPE DISPENSE ID#
Fluid 1 Fluid 2 Fluid 3
Idle Idle Idle
Target 005.00 ltr 050.00 ltr 010.10 ltr
Actual 000.00 ltr 000.00 ltr 000.00 ltr
Tolerance % 555
Difference % -98 -99 -97
Run Totals Alarms
Stop
STOP
DISPENSE
AUTO ON
DISPENSE
START
ti1359a
STOP
