Installation
309301K 17
Fluid Panel 246838
Connect an air supply line (8) to the 1/4” npt(f) solenoid valve port. The air supply must be filtered to 10 micron to
lengthen solenoid valve life.
Connect the fluid supply line (11) to the meter inlet. Connect a fluid dispense line (12) to the 3/8” npt(m) outlet of the
dispense valve on the fluid panel. Connect the other end to the dispense valve (9).
Fluid Panel 246839
Connect an air supply line (8) to the 1/4” npt(f) solenoid valve port. The air supply must be filtered to 10 micron to
lengthen solenoid valve life.
Connect the fluid supply line (11) to the 3/4” npt(f) meter inlet. Connect a fluid dispense line (12) to the 3/8” npt(m)
outlet of the dispense valve on the fluid panel. Connect the other end to the dispense valve (9).

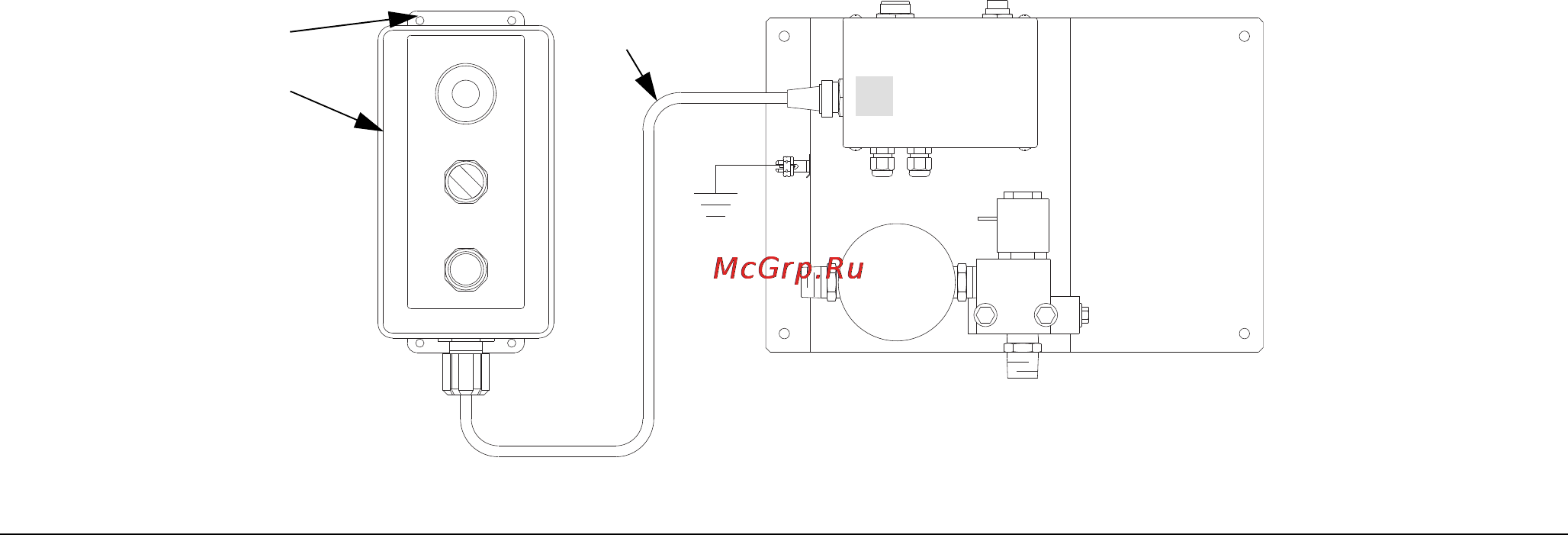

Install the Remote Operator Station
Mount the operator station (D) in a convenient location for the operator. Secure it with No. 10 or M5 fasteners through
the four 0.22” mounting holes (D1). Connect the cable (D2) to the fluid panel junction box connector marked
C.
NOTE: 20 ft. (6.1 m) station cable extension 198456 is available.
F
IG. 7
ti1451a
D
D1
D2
C
