Graco ProDispense [43/74] Replacing fluid panel junction box
![Graco ProDispense [43/74] Replacing fluid panel junction box](/views2/1193399/page43/bg2b.png)
Service
309301K 43
Replacing Fluid Panel Junction Box
1. Turn off controller power switch.
2. Disconnect three cables (C) from the junction box (J). See F
IG. 18.
3. Remove four screws (K) and remove junction box cover (L).
4. Disconnect meter and solenoid wires (M) from the terminal block.
5. Loosen two strain relief connectors (N) to pull out the wires.

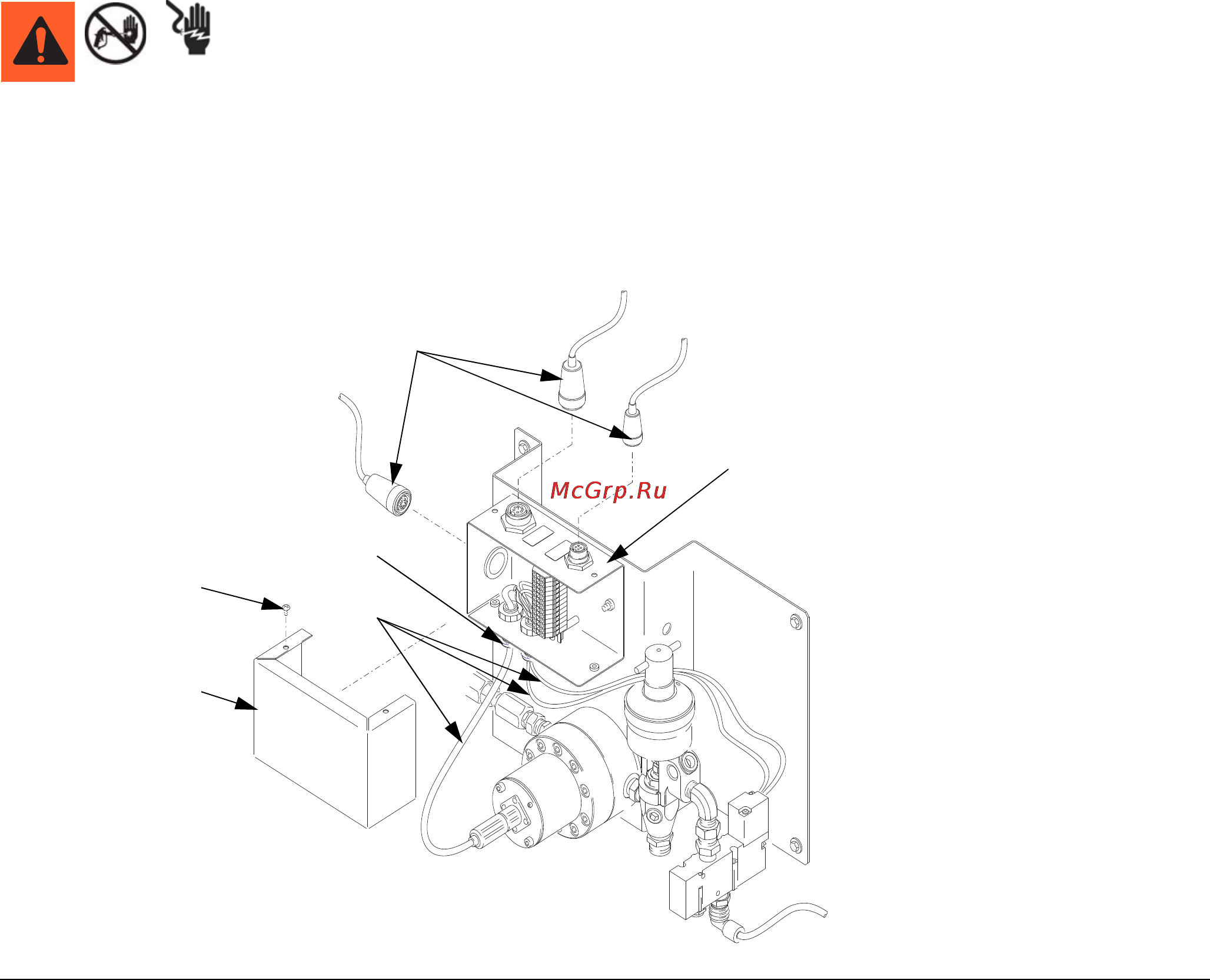

F
IG. 18
ti1403a
J
K
L
C
M
N
L
M
