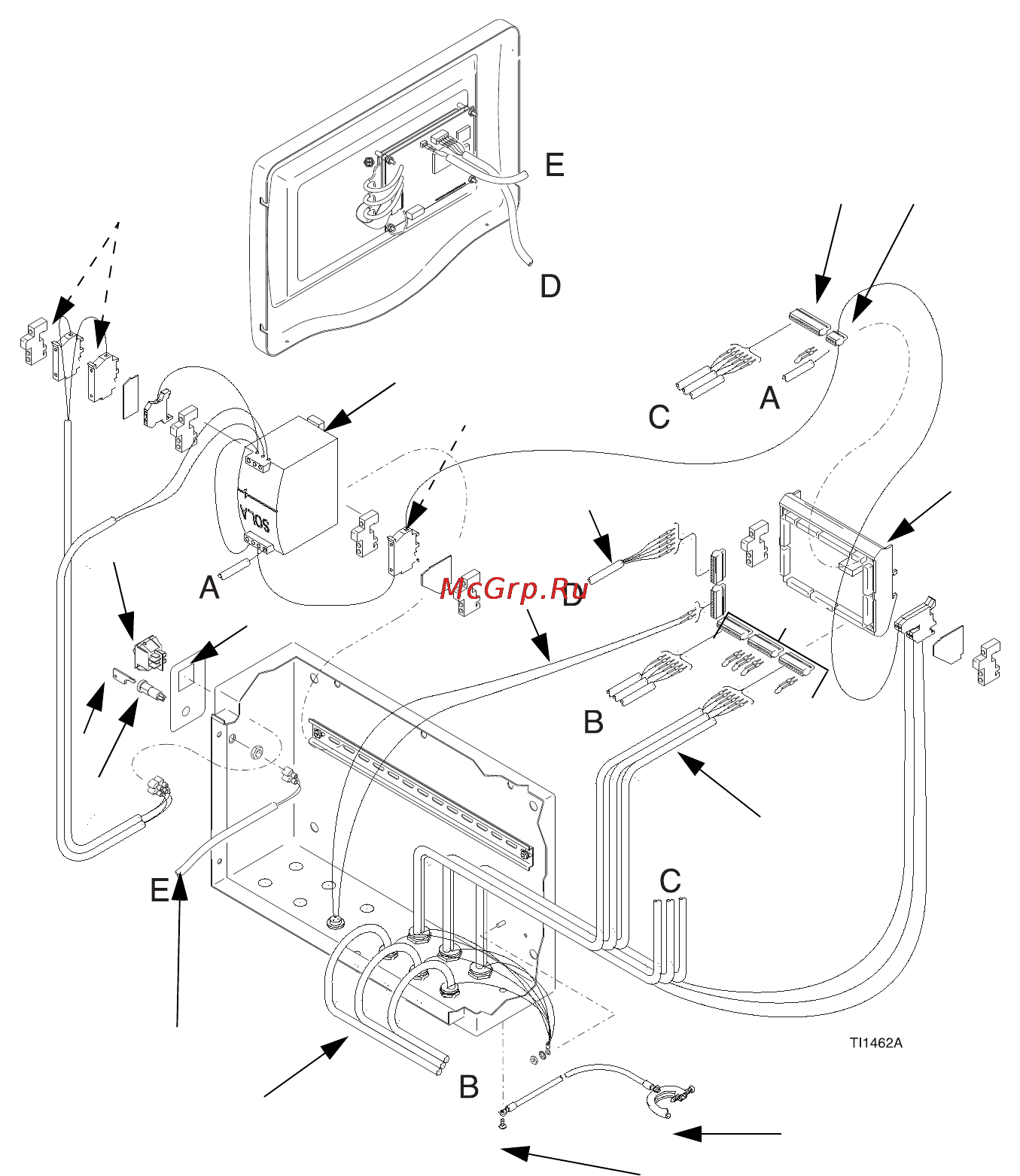

Parts
62 309301K
Parts
Part No. 244561, Controller
3
32
48
12
31
46
13
47
33
24
19
20
50
49
16
5
4
4a
Ref. # Part # Description Qty.
3 197386 LABEL, power switch 1
4 116368 SWITCH, key, 2-position, includes item 4a 1
4a 116370 • KEY PACKAGE (2 duplicate keys) 1
5 116320 SWITCH, power 1
12 196975 POWER SUPPLY, 24 VDC 1
13 244952 BOARD, circuit, main control 1
16 197835 HARNESS, wire 1
18 245222 COVER ASSEMBLY, electrical section, includes items 18a-18h 1
18a 197431 • COVER, enclosure 1
18b 116371 • SPACER, 0.151” ID 4
18c 197281 • SWITCH, membrane 1
18d 198573 • DISPLAY, graphic 1
18e 116374 • SPACER, 0.14” ID 4
18f 244407 • BOARD, circuit, display 1
18g 103181 • WASHER, lock, external, #6 4
