Overview
12 309301K
Fluid Panels
There are six types of fluid panels available:
• 244599 — Oil and Lubricant Fluid Panel
• 244600 — Water and Antifreeze Fluid Panel (not ETL listed)
• 244601 — Grease and Paint Fluid Panel
• 246837 — Grease and Paint Fluid Panel
• 246838 — Meterless Fluid Panel (meter supplied by user)
• 246839 — Grease and Paint Fluid Panel
There are three cable connections on the fluid panel junction box for connecting:
• operator station to the solenoid connection
• controller to solenoid connection
• controller to meter connection
Signals from the controller and operator station communicate to the fluid panel(s) when to start and stop dispensing.
Signals from the fluid panel’s fluid meter communicate to the controller how much fluid has been dispensed.

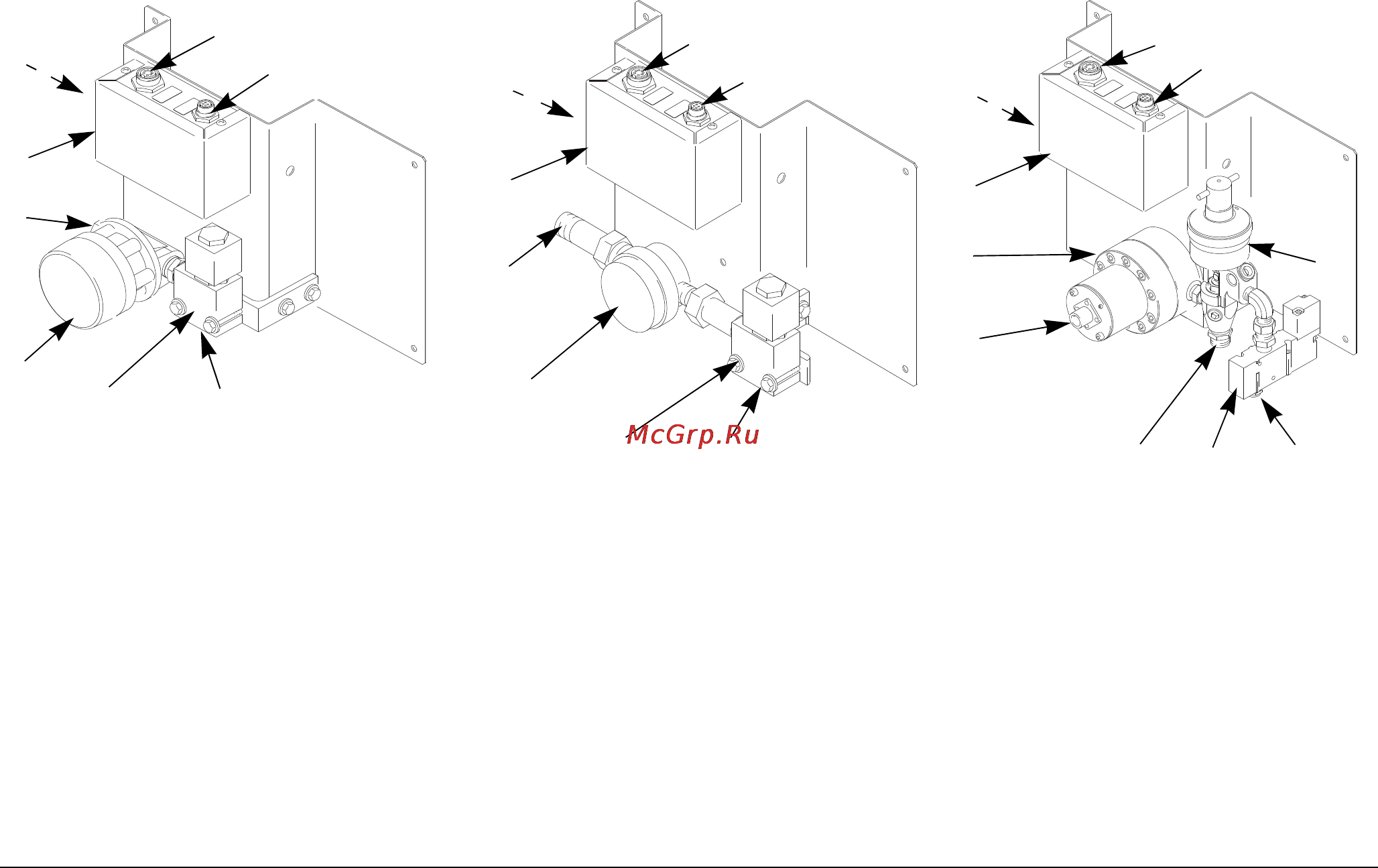

F
IG. 3
ti1433a
ti1434a
ti1435a
244600
244599 244601
Key
A Controller Solenoid Connection
B Controller Meter Connection
C Operator Station Connection
D Junction Box
E Fluid Inlet
F Meter
G Solenoid
H Fluid Outlet
I Air Inlet
J Fluid Valve
G
F
H
E
C
A
B
D
G
F
H
E
C
A
B
D
I
F
H
E
C
A
B
D
G
J
(not ETL listed)
