Service
309301K 51
12. Load fluid at low pressure and check for leaks. Tighten fittings as needed.
F
IG. 23

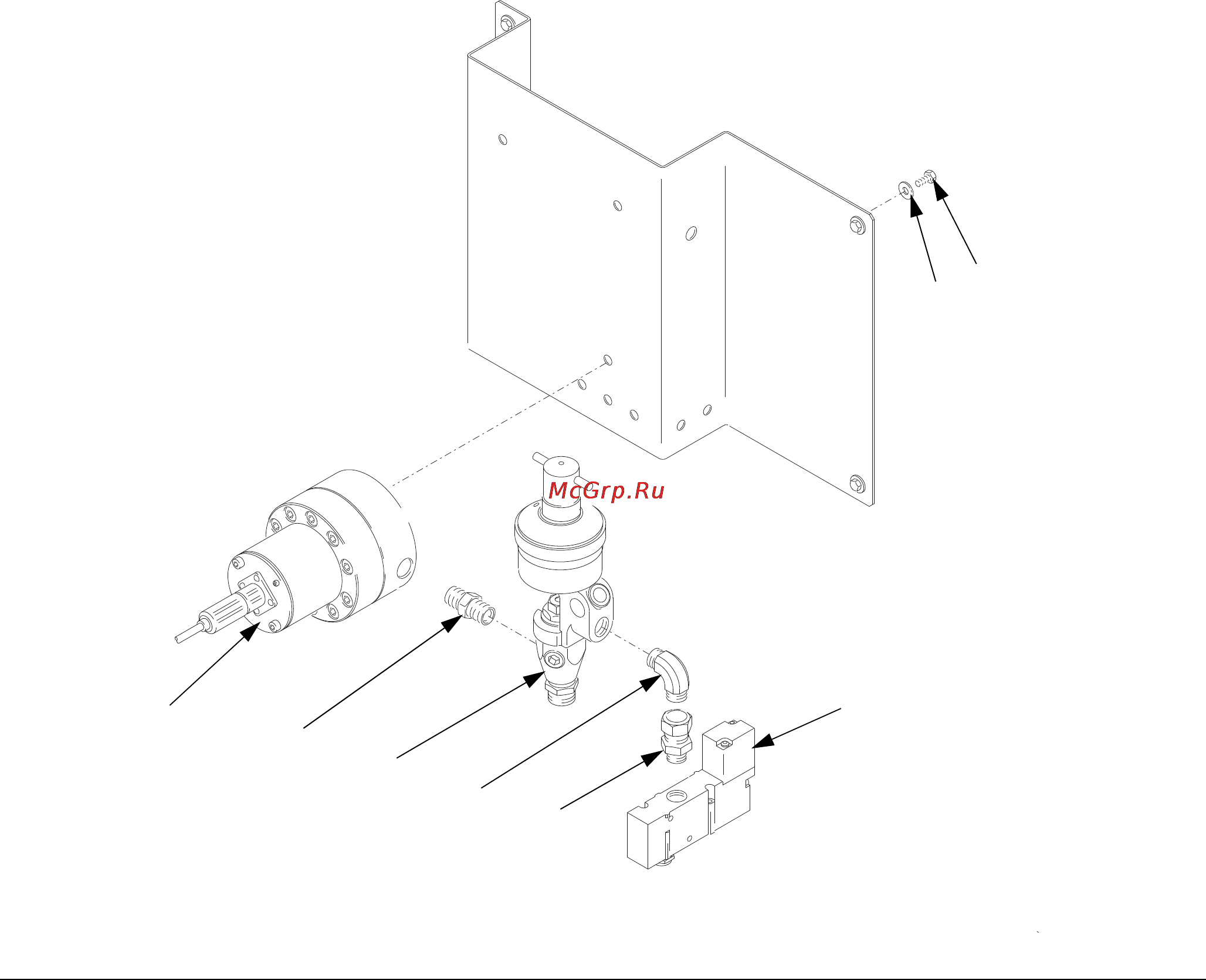

Show meter removal
ti1411a
4
19
3
21
20
A
C
B
