![Yamaha F200 AETX [11/90] Fig 4 cylinder crankcase 2](/img/pdf.png)
Yamaha F200 AETX [11/90] Fig 4 cylinder crankcase 2
![Yamaha F200 AETX [11/90] Fig 4 cylinder crankcase 2](/views2/1241098/page11/bgb.png)
7

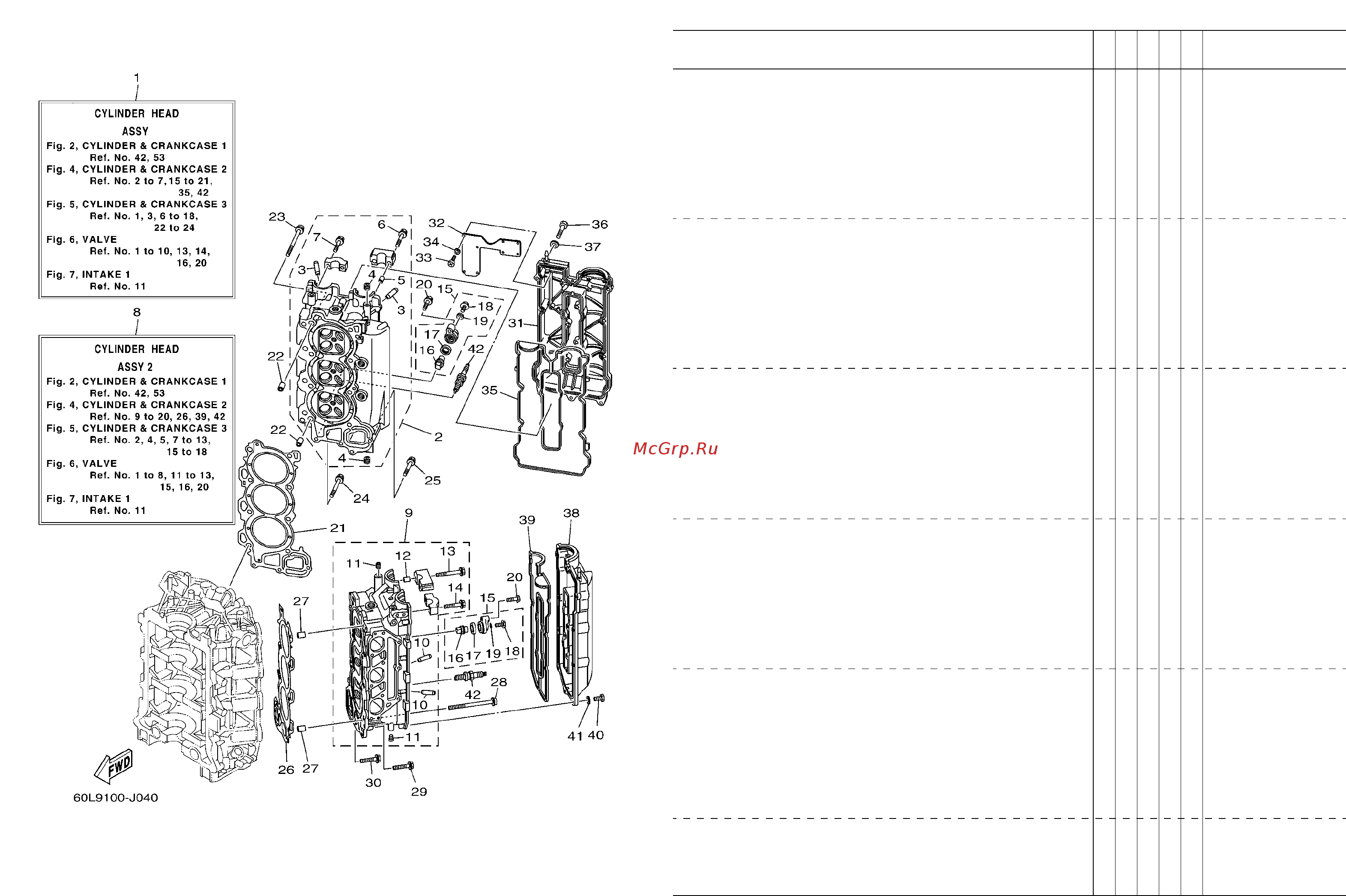

FIG. 4 CYLINDER & CRANKCASE 2
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–W009A–05–9S
CYLINDER HEAD ASSY 1 1 1 1
2
69J–11110–01–9S
CYLINDER HEAD ASSY 1 1 1 1
3
69J–11133–10
.GUIDE, VALVE 1 12 12 12 12
4
90344–51019
.PLUG, TAPER SCREW 5 5 5 5
5
91809–08006
.PIN, DOWEL 2 2 2 2
6
90119–07235
.BOLT/WASHER-CAM CAPS 2 2 2 2
7
90119–07234
.BOLT, WITH WASHER 18 18 18 18
8
69J–W009C–05–9S
CYLINDER HEAD ASSY 2 1 1 1 1
9
69J–11120–01–9S
CYLINDER HEAD ASSY 2 1 1 1 1
10
69J–11133–10
.GUIDE, VALVE 1 12 12 12 12
11
90344–51019
.PLUG, TAPER SCREW 5 5 5 5
12
91809–08006
.PIN, DOWEL 2 2 2 2
13
90119–07235
.BOLT/WASHER-CAM CAPS 2 2 2 2
14
90119–07234
.BOLT, WITH WASHER 14 14 14 14
15
69J–11301–00
ANODE COVER ASSY 4 4 4 4
16
67F–11325–01
.ANODE 1 1 1 1
17
67F–11328–00
.GROMMET, ANODE 1 1 1 1
18
90105–06M07
.BOLT, FLANGE 1 1 1 1
19
90430–06M03
.GASKET 1 1 1 1
20
97575–08540
BOLT, WITH WASHER 4 4 4 4
21
69J–11181–03
GASKET, CYLINDER HEAD 1 1 1 1 1
22
90387–10M08
COLLAR 2222
23
90155–10001
SCREW, FLAT FILLISTER 8 8 8 8
24
90119–08M91
BOLT, WITH WASHER 2 2 2 2
25
90119–08021
BOLT, WITH WASHER 1 1 1 1
26
69J–11182–03
GASKET, CYLINDER HEAD 2 1 1 1 1
27
90387–10M08
COLLAR 2222
