Yamaha F200 AETX [12/90] Remarks
![Yamaha F200 AETX [12/90] Remarks](/views2/1241098/page12/bgc.png)
8

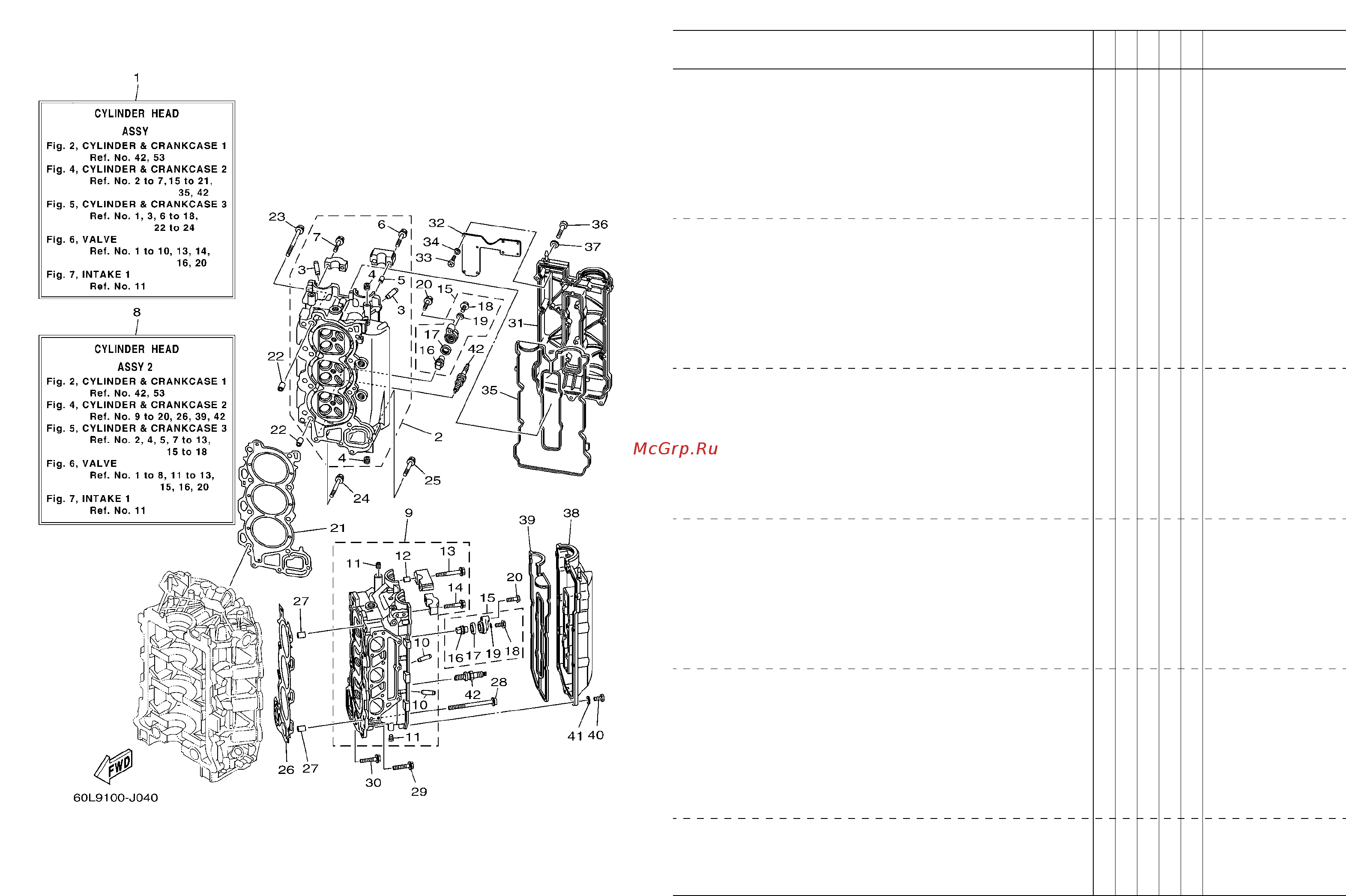

FIG. 4 CYLINDER & CRANKCASE 2
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
28
90155–10001
SCREW, FLAT FILLISTER 8 8 8 8
29
90119–08M91
BOLT, WITH WASHER 2 2 2 2
30
90119–08021
BOLT, WITH WASHER 1 1 1 1
31
69J–11191–00–9S
COVER, CYLINDER HEAD 1 1 1 1 1
32
69J–11135–00
PLATE, BREATHER 3 1 1 1 1
33
98507–04008
SCREW, PAN HEAD 8 8 8 8
34
92907–04600
WASHER 8 8 8 8
35
69J–11193–01
GASKET, HEAD COVER 1 1 1 1 1
36
97095–06030
BOLT 14 14 14 14
37
92995–06600
WASHER 14 14 14 14
38
69J–11192–00–9S
COVER, CYLINDER HEAD 2 1 1 1 1
39
69J–11194–00
GASKET, HEAD COVER 2 1 1 1 1
40
97095–06030
BOLT 14 14 14 14
41
92995–06600
WASHER 14 14 14 14
42
94702–00391
PLUG, SPARK (NGK LFR5A-11) 6 6 6 6
