Yamaha F200 AETX [24/90] Fig 10 throttle body assy 2
![Yamaha F200 AETX [24/90] Fig 10 throttle body assy 2](/views2/1241098/page24/bg18.png)
20

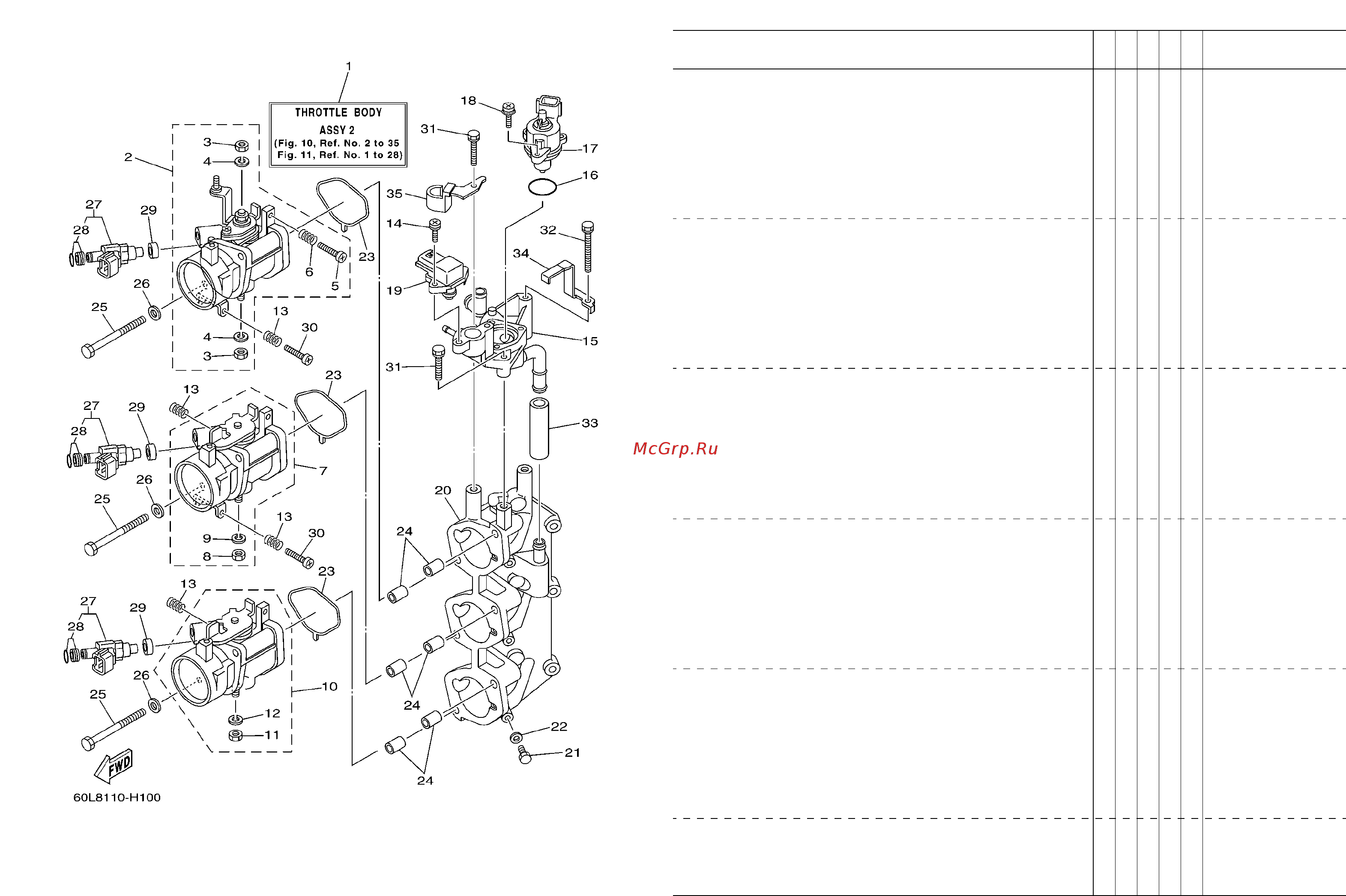

FIG. 10 THROTTLE BODY ASSY 2
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
24
99530–10114
PIN, DOWEL 6 6 6 6
25
69J–14496–00
BOLT 6666
26
68V–14475–00
WASHER 6 6 6 6
27
69J–13761–00
INJECTOR 3333
28
68V–1410B–00
.PACKING KIT 1 1 1 1
29
68V–13766–00
RUBBER, INJECTOR 3 3 3 3
30
69J–14321–00
SCREW, THROTTLE 2 2 2 2
31
69J–13573–00
BOLT 1 2 2 2 2
32
69J–13574–00
BOLT 2 1 1 1 1
33
69J–13547–00
HOSE 3 1 1 1 1
34
69J–14159–00
CLIP 1111
35
69J–14255–00
PLATE 1 1 1 1
