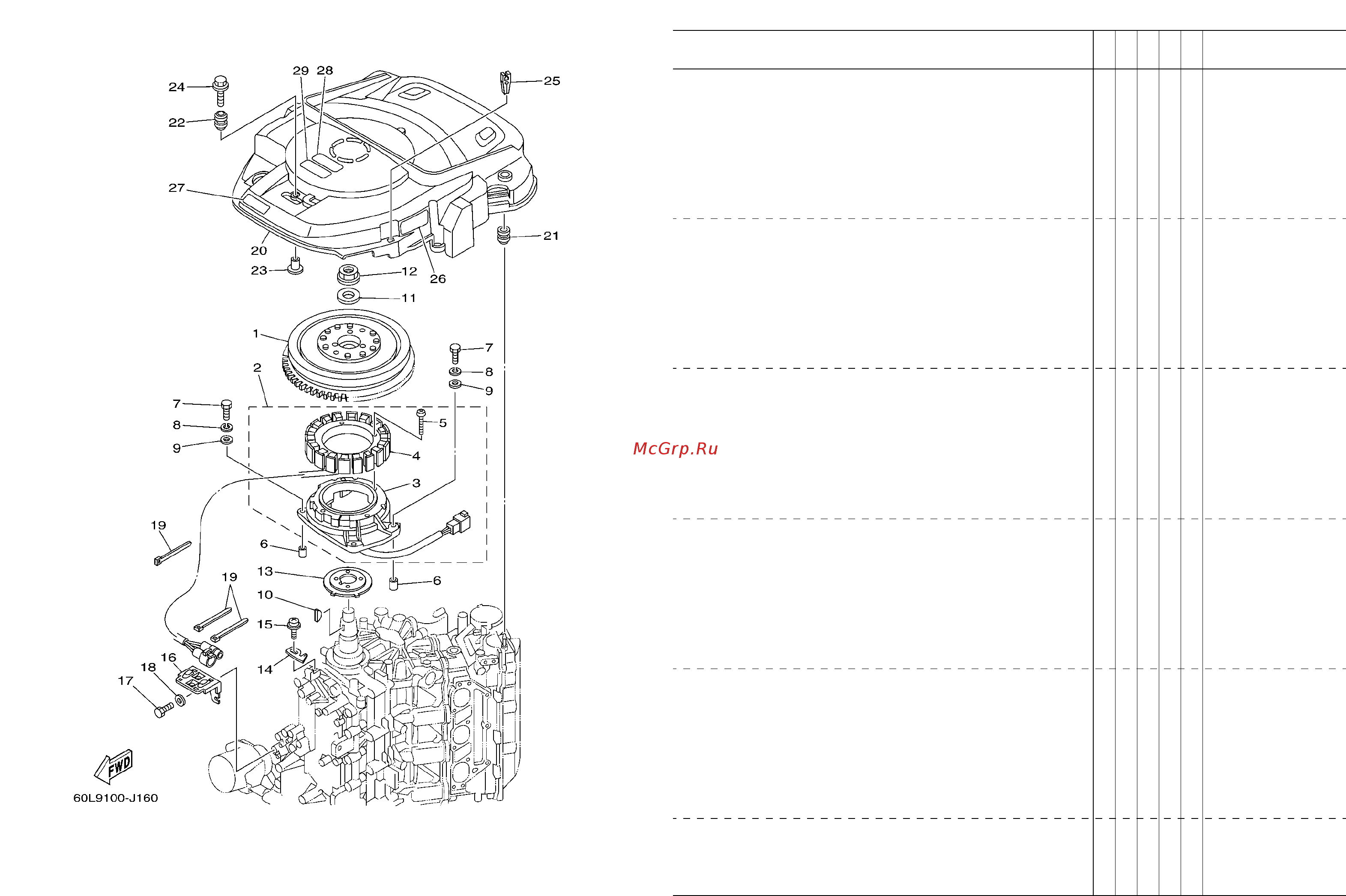

FIG. 16 GENERATOR
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–81450–10
ROTOR ASSY 1 1 1 1
2
69J–81460–01
BASE ASSY 1 1 1 1
3
69J–85580–00
.COIL, PULSER 1 1 1 1
4
69J–81410–10
.STATOR ASSY 1111
5
63D–81345–20
.SCREW, WITH WASHER (M6X30) 4 4 4 4
6
99530–08012
PIN, DOWEL 2 2 2 2
7
97095–06035
BOLT 4444
8
92995–06100
WASHER, SPRING 4 4 4 4
9
92995–06600
WASHER 4 4 4 4
10
90280–05015
KEY, WOODRUFF 1111
11
90201–24014
WASHER, PLATE 1 1 1 1
12
90179–24002
NUT 1111
13
69J–81673–00
ROTOR 1 1 1 1
14
6P2–81332–00
PLATE, TIMING 1 1 1 1
15
97985–06210
SCREW, WITH WASHER 1 1 1 1
16
69J–8132G–00
PLATE 1 1 1 1
17
97095–06016
BOLT 1111
18
92995–06600
WASHER 1 1 1 1
19
90465–14M66
CLAMP 3 3 3 3
20
69J–81337–00
COVER, FLYWHEEL 1 1 1 1
21
663–82317–01
DAMPER, IGNITION COIL 2 2 2 2
22
6A0–82317–00
DAMPER, IGNITION COIL 3 3 3 3
23
90387–06119
COLLAR 3333
24
90119–06M59
BOLT, WITH WASHER 3 3 3 3
25
67F–2812A–00
PULLER, FUSE 1 1 1 1
26
69J–81919–20
GRAPHIC, REGULATOR 1 1 1 1
27
60L–13437–62
MARK, CAUTION 1 1 1 1
