Yamaha F200 AETX [5/90] Fig 1 top cowling
![Yamaha F200 AETX [5/90] Fig 1 top cowling](/views2/1241098/page5/bg5.png)
1

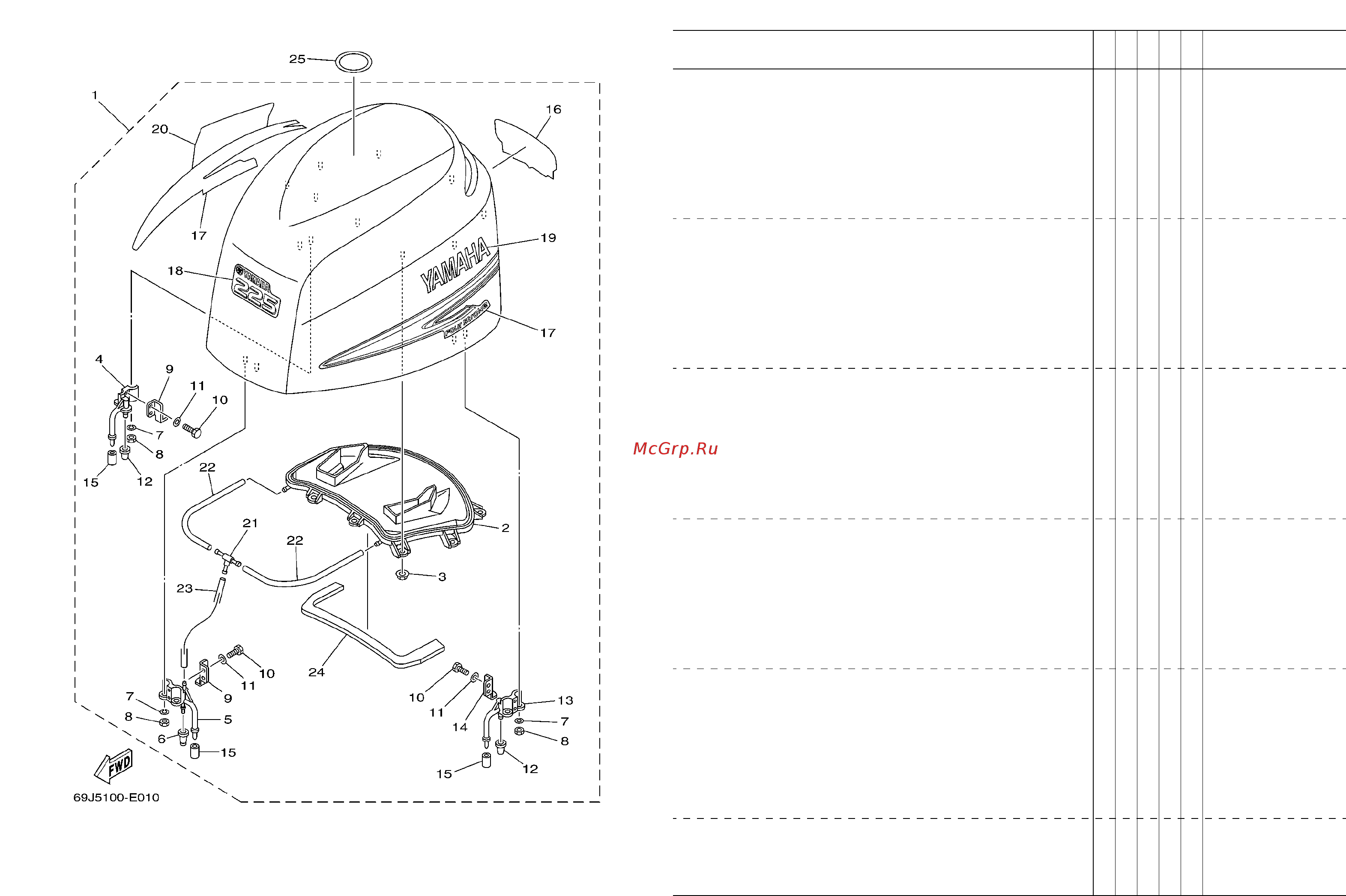

FIG. 1 TOP COWLING
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–42610–01–8D
TOP COWLING ASSY 1 1
60L–42610–01–8D
TOP COWLING ASSY 1 1
2
69J–42613–00
.MOLDING, AIR DUCT 1 1 1 1
3
90179–06M28
.NUT 9999
4
68F–42647–01–94
.HOLDER, CLAMP BAND 1 1 1 1
5
69J–42647–00–94
.HOLDER, CLAMP BAND 1 1 1 1
6
69J–42663–00
.DAMPER 1 1 1 1
7
92990–06100
.WASHER, SPRING 6 6 6 6
8
95380–06600
.NUT, HEXAGON 6 6 6 6
9
68F–42651–00
.HOOK 2222
10
97095–06016
.BOLT 6 6 6 6
11
92995–06600
.WASHER 6 6 6 6
12
68F–42663–00
.DAMPER 2 2 2 2
13
68F–42648–01–94
.HOLDER, CLAMP BAND 1 1 1 1
14
67F–42652–00
.HOOK 1111
15
67F–13448–00
.CAP 3333
16
69J–42678–00
.GRAPHIC, REAR 1 1
60L–42678–00
.GRAPHIC, REAR 1 1
17
69J–W0070–00
.GRAPHIC SET 1 1 1 1
18
69J–42677–00
.GRAPHIC, FRONT 1 1
60L–42677–00
.GRAPHIC, FRONT 1 1
19
69J–42681–00
.MARK, COWLING 1 1 1 1
20
69J–42682–00
.MARK, COWLING 1 1 1 1
21
69J–24378–00
.PIPE, JOINT 3 1 1 1 1
22
90445–11020
.HOSE (L400) 2 2 2 2
23
90445–11021
.HOSE (L310) 1 1 1 1
24
69J–42617–01
.DAMPER, FORM 1 1 1 1
