Yamaha F200 AETX [19/90] Fig 8 intake 2
![Yamaha F200 AETX [19/90] Fig 8 intake 2](/views2/1241098/page19/bg13.png)
15

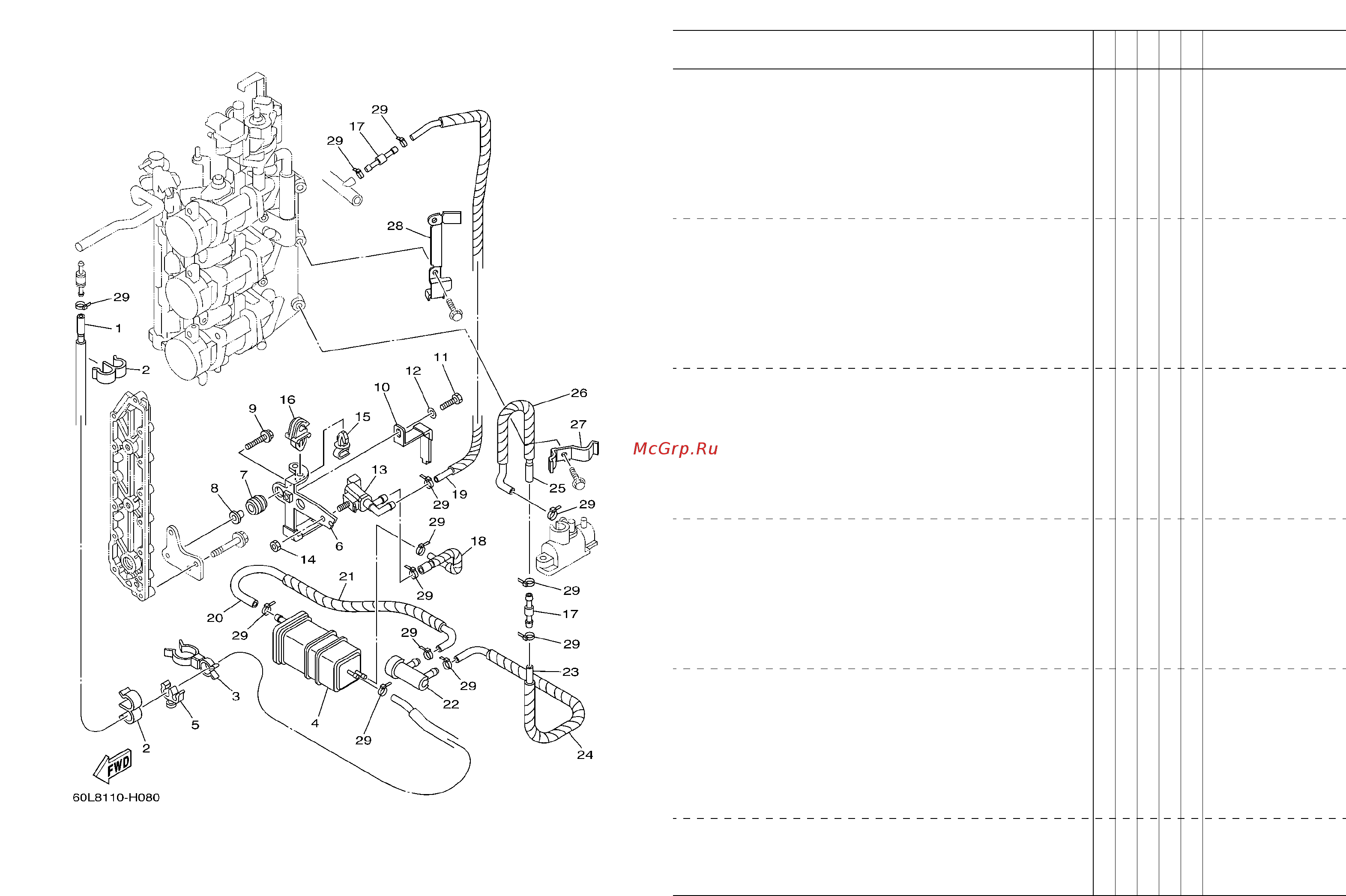

FIG. 8 INTAKE 2
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
60L–24315–01
PIPE 5 1 1 1 1
2
90464–09M31
CLAMP 2 2 2 2
3
90464–23001
CLAMP 1 1 1 1
4
69J–24170–00
CANISTER ASSY 1 1 1 1
5
90464–11201
CLAMP 1 1 1 1
6
69J–2134X–10
BRACKET, CANISTER 1 1 1 1
7
90480–10M23
GROMMET 2 2 2 2
8
90387–06M60
COLLAR 2222
9
90119–06M59
BOLT, WITH WASHER 2 2 2 2
10
69J–2419A–00
HOLDER 1111
11
97095–06016
BOLT 1111
12
92995–06600
WASHER 1 1 1 1
13
69J–86120–00
SOLENOID VALVE ASSY 1 1 1 1
14
95380–06600
NUT, HEXAGON 1 1 1 1
15
90464–07011
CLAMP 1 1 1 1
16
90464–07259
CLAMP 1 1 1 1
17
6E5–24379–00
PIPE, JOINT 4 2 2 2 2
18
69J–24314–00
PIPE 4 1 1 1 1
19
60L–24314–10
PIPE 4 1 1 1 1
20
60L–24313–00
PIPE 3 1 1 1 1
21
90448–12003
HOSE, WITH UNION 1 1 1 1
22
69J–24502–00
FILTER, FUEL 1 1 1 1
23
60L–24312–00
PIPE 2 1 1 1 1
24
90448–12001
HOSE, WITH UNION 1 1 1 1
25
60L–24311–00
PIPE, FUEL 1 1 1 1 1
26
90448–10002
HOSE, WITH UNION 1 1 1 1
27
60L–24367–00
CLAMP, FUEL PIPE 2 1 1 1 1
