Yamaha F200 AETX [31/90] Fig 15 fuel 2
![Yamaha F200 AETX [31/90] Fig 15 fuel 2](/views2/1241098/page31/bg1f.png)
27

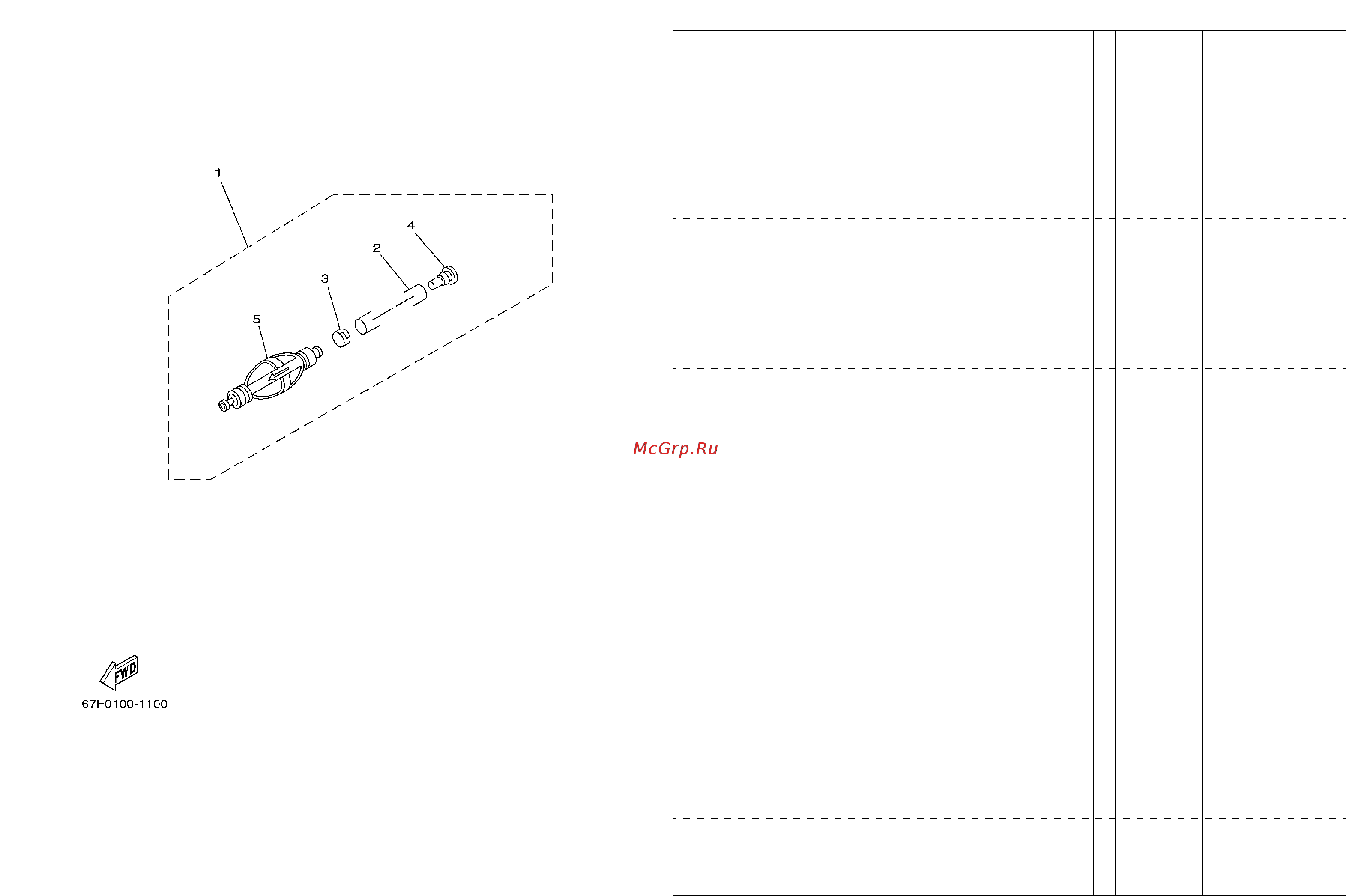

FIG. 15 FUEL 2
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
6Y2–24307–50
FUEL PIPE COMP. 2 1 1 1 1 AP
2
90445–13M01
.HOSE (L2050) 1 1 1 1
3
6E5–24351–51
.BAND 1 1 1 1 1
4
90480–06M19
.GROMMET 1 1 1 1
5
6Y2–24360–60
.PRIMER PUMP ASSY 1 1 1 1
