![Yamaha F200 AETX [16/90] Fig 6 valve](/img/pdf.png)
Yamaha F200 AETX [16/90] Fig 6 valve
![Yamaha F200 AETX [16/90] Fig 6 valve](/views2/1241098/page16/bg10.png)
12

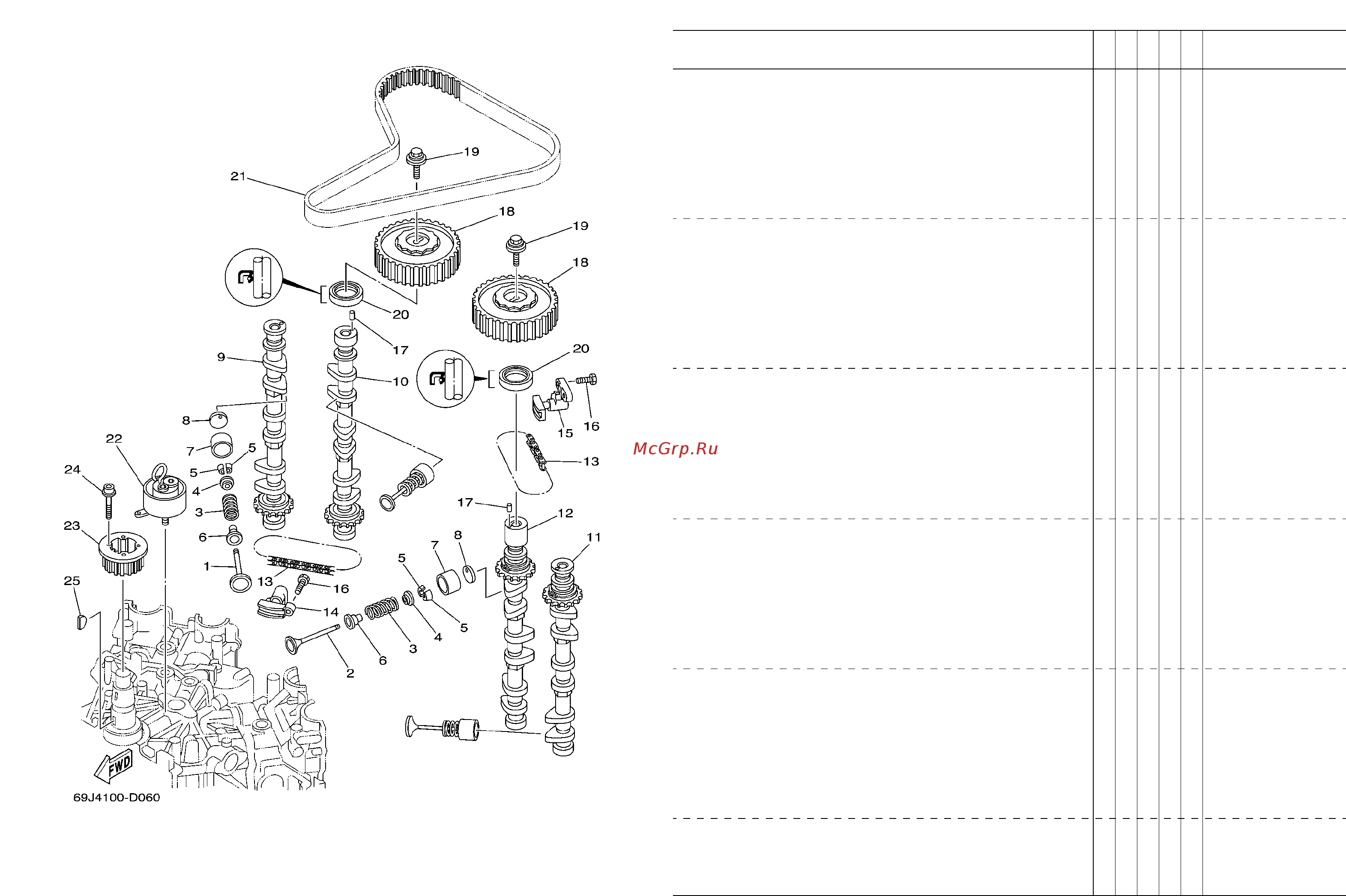

FIG. 6 VALVE
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
23
69J–11536–00
GEAR, DRIVE 1 1 1 1
24
90110–05010
BOLT, HEXAGON SOCKET HEAD 4 4 4 4
25
90280–04008
KEY, WOODRUFF 1111
