Yamaha F200 AETX [15/90] Fig 6 valve
![Yamaha F200 AETX [15/90] Fig 6 valve](/views2/1241098/page15/bgf.png)
11

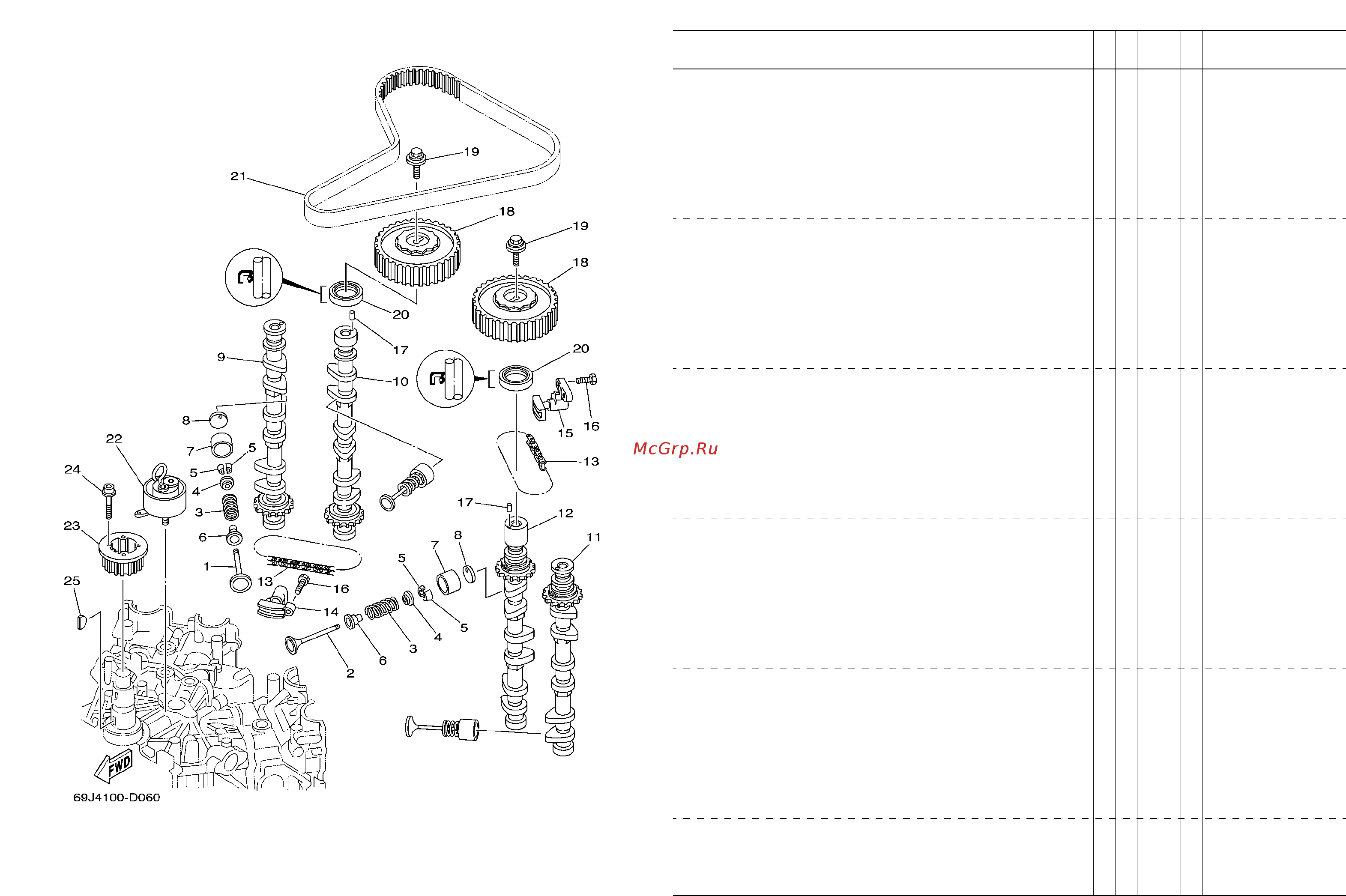

FIG. 6 VALVE
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
8
6S1–12168–L0
PAD, ADJUSTING (2.720) 24 24 24 24 UR
6S1–12168–M0
PAD, ADJUSTING (2.740) 24 24 24 24 UR
6S1–12168–N0
PAD, ADJUSTING (2.760) 24 24 24 24 UR
6S1–12168–P0
PAD, ADJUSTING (2.780) 24 24 24 24 UR
6S1–12168–R0
PAD, ADJUSTING (2.800) 24 24 24 24 UR
6S1–12168–S0
PAD, ADJUSTING (2.820) 24 24 24 24 UR
6S1–12168–T0
PAD, ADJUSTING (2.840) 24 24 24 24 UR
6S1–12168–U0
PAD, ADJUSTING (2.860) 24 24 24 24 UR
6S1–12168–V0
PAD, ADJUSTING (2.880) 24 24 24 24 UR
6S1–12168–W0
PAD, ADJUSTING (2.900) 24 24 24 24 UR
6S1–12168–X0
PAD, ADJUSTING (2.920) 24 24 24 24 UR
6S1–12168–Y0
PAD, ADJUSTING (2.940) 24 24 24 24 UR
6S1–12169–00
PAD, ADJUSTING (2.960) 24 24 24 24 UR
9
69J–12171–00
CAMSHAFT 1 1 1 1 1
10
69J–12181–00
CAMSHAFT 2 1 1 1 1
11
69J–12172–00
CAMSHAFT 3 1 1 1 1
12
69J–12182–00
CAMSHAFT 4 1 1 1 1
13
94581–99044
CHAIN 2222
14
69J–12210–00
TENSIONER ASSY, CAM CHAIN 1 1 1 1
15
69J–12230–00
TENSIONER ASSY, CAM CHAIN 2 1 1 1 1
16
97013–06025
BOLT 4444
17
93605–10108
PIN, DOWEL 2 2 2 2
18
69J–11537–00
GEAR, DRIVEN 2 2 2 2
19
68V–12157–00
BOLT 2222
20
93102–38008
OIL SEAL 2 2 2 2
21
69J–46241–00
V-BELT 1 1 1 1
22
63P–11590–01
TENSIONER ASSY 1 1 1 1
