Yamaha F200 AETX [13/90] Fig 5 cylinder crankcase 3
![Yamaha F200 AETX [13/90] Fig 5 cylinder crankcase 3](/views2/1241098/page13/bgd.png)
9

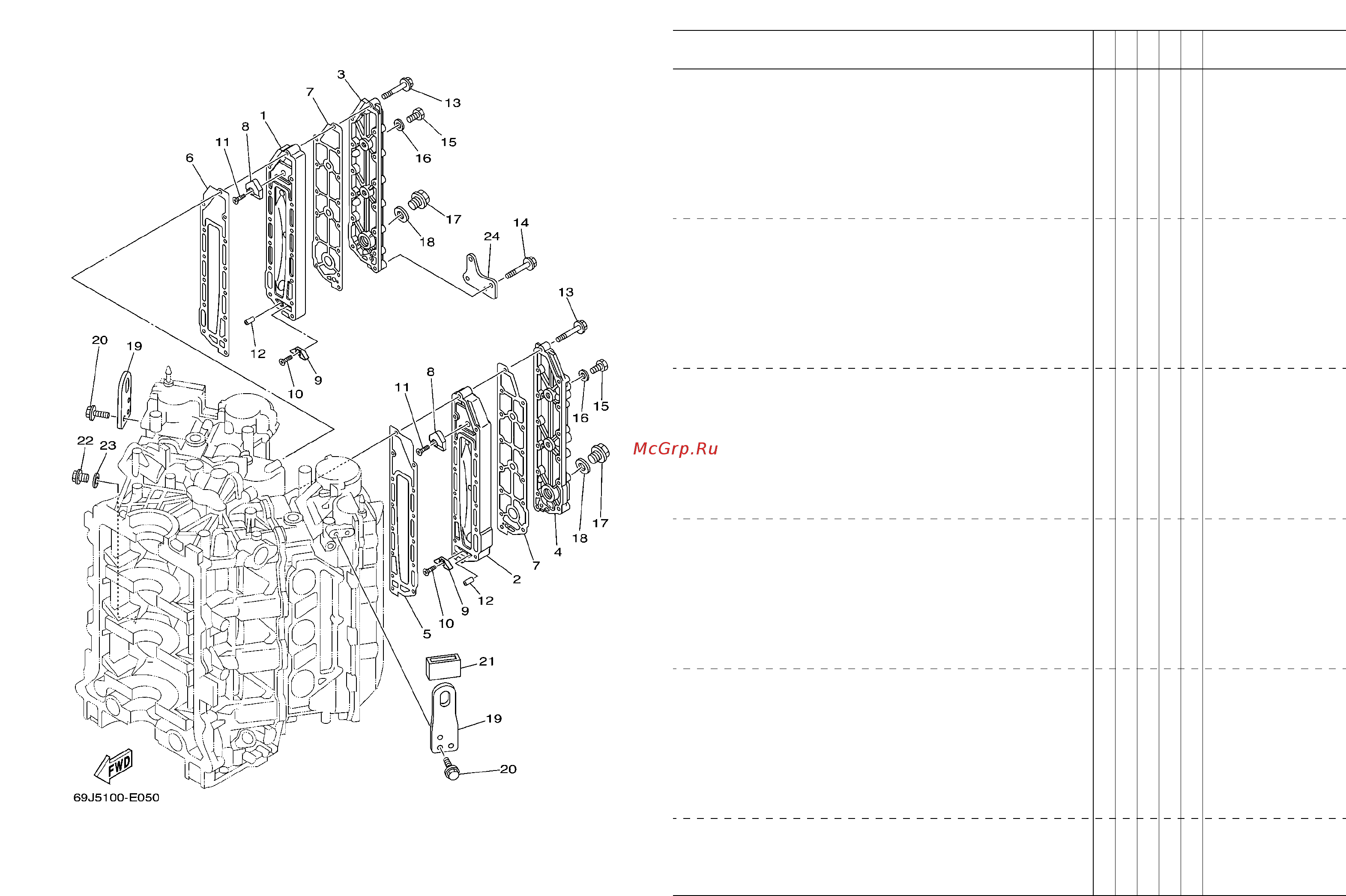

FIG. 5 CYLINDER & CRANKCASE 3
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–41111–01–9S
INNER COVER, EXHAUST 1 1 1 1
2
69J–41121–01–9S
INNER COVER,EXHAUST 1 1 1 1
3
69J–41113–01–9S
OUTER COVER, EXHAUST 1 1 1 1
4
69J–41123–01–9S
OUTER COVER, EXHAUST 1 1 1 1
5
6P2–41112–00
GASKET, EXHAUST INNER COVER 1 1 1 1
6
6P2–41122–00
GASKET, EXHAUST INNER COVER 1 1 1 1
7
6P2–41114–00
GASKET, EXHAUST OUTER COVER 2 2 2 2
8
6P2–11325–00
ANODE 2 2 2 2
9
6E5–11325–00
ANODE 2 2 2 2
10
98780–04015
SCREW, FLAT HEAD 2 2 2 2
11
90151–06M02
SCREW, COUNTERSUNK 2 2 2 2
12
91690–40010
PIN, SPRING 2 2 2 2
13
90119–06027
BOLT, WITH WASHER 26 26 26 26
14
90119–06104
BOLT, WITH WASHER 2 2 2 2
15
97095–08014
BOLT 4444
16
90430–08143
GASKET 4 4 4 4
17
90340–18M09
PLUG, STRAIGHT SCREW 2 2 2 2
18
90430–18130
GASKET 2 2 2 2
19
6P2–11119–00
HANGER, ENGINE 2 2 2 2
20
90119–06MA2
BOLT, WITH WASHER 4 4 4 4
21
69J–1111M–00
COVER 1 1 1 1 1
22
90340–14M06
PLUG, STRAIGHT SCREW 1 1 1 1
23
90430–14115
GASKET 1 1 1 1
24
69J–2134V–00
BRACKET 1 1 1 1
