Yamaha F200 AETX [7/90] Fig 2 cylinder crankcase 1
![Yamaha F200 AETX [7/90] Fig 2 cylinder crankcase 1](/views2/1241098/page7/bg7.png)
3

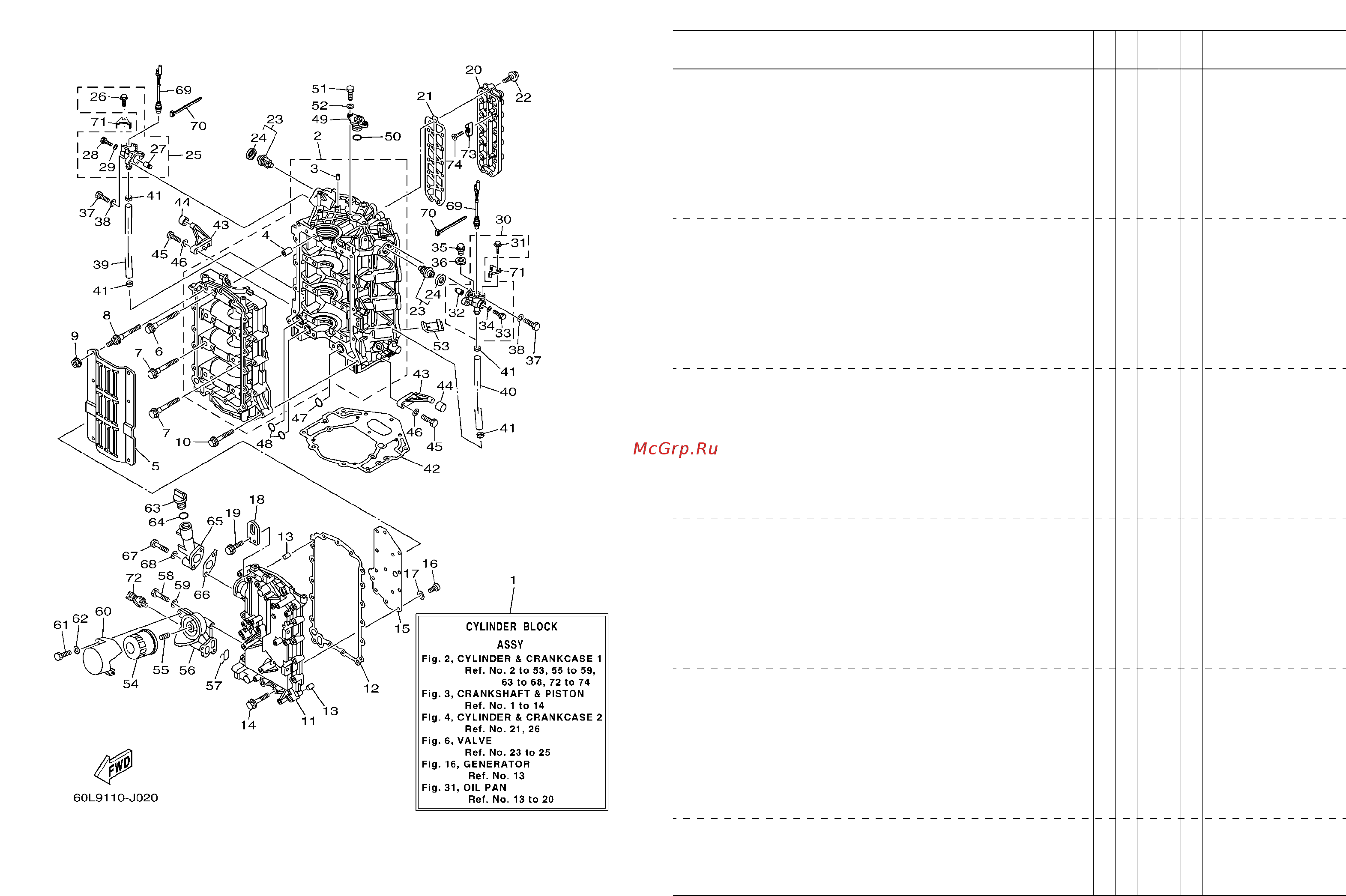

FIG. 2 CYLINDER & CRANKCASE 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–W009B–06–9S
CYLINDER BLOCK ASSY 1 1 1 1
2
69J–15100–12–9S
CRANKCASE ASSY 1 1 1 1
3
93606–12019
.PIN, DOWEL 1 1 1 1
4
91814–18001
.PIN, DOWEL 8 8 8 8
5
69J–15123–00
PLATE, BAFFLE 1 1 1 1 1
6
69J–15187–00
BOLT 8888
7
69J–15481–00
BOLT 1 2 2 2 2
8
69J–15482–00
BOLT 2 6 6 6 6
9
95707–06500
NUT, FLANGE 6666
10
90119–08M66
BOLT, WITH WASHER 13 13 13 13
11
69J–15411–00–9S
COVER, CRANKCASE 1 1 1 1 1
12
69J–15451–00
GASKET, CRANKCASE COVER 1 1 1 1 1
13
93606–12019
PIN, DOWEL 2 2 2 2
14
90119–08009
BOLT, WITH WASHER 17 17 17 17
15
69J–11168–00
COVER, BREATHER 1 1 1 1
16
98507–04008
SCREW, PAN HEAD 14 14 14 14
17
92907–04600
WASHER 14 14 14 14
18
69J–11119–00
HANGER, ENGINE 1 1 1 1
19
90119–06MA2
BOLT, WITH WASHER 2 2 2 2
20
69J–1131C–01–9S
COVER, JOINT 1 1 1 1
21
6S1–1131B–00
GASKET, COVER 1 1 1 1
22
90119–06MA4
BOLT, WITH WASHER 13 13 13 13
23
67F–12411–01
THERMOSTAT 2222
24
67F–12412–00
.SEAL, THERMOSTAT 1 1 1 1
25
6P2–1240H–00–9S
ANODE ASSY 1 1 1 1
26
90109–06M80
.BOLT 2 2 2 2
27
6P3–11325–00
.ANODE 1 1 1 1
