Yamaha F200 AETX [38/90] Fig 19 electrical 3
![Yamaha F200 AETX [38/90] Fig 19 electrical 3](/views2/1241098/page38/bg26.png)
34

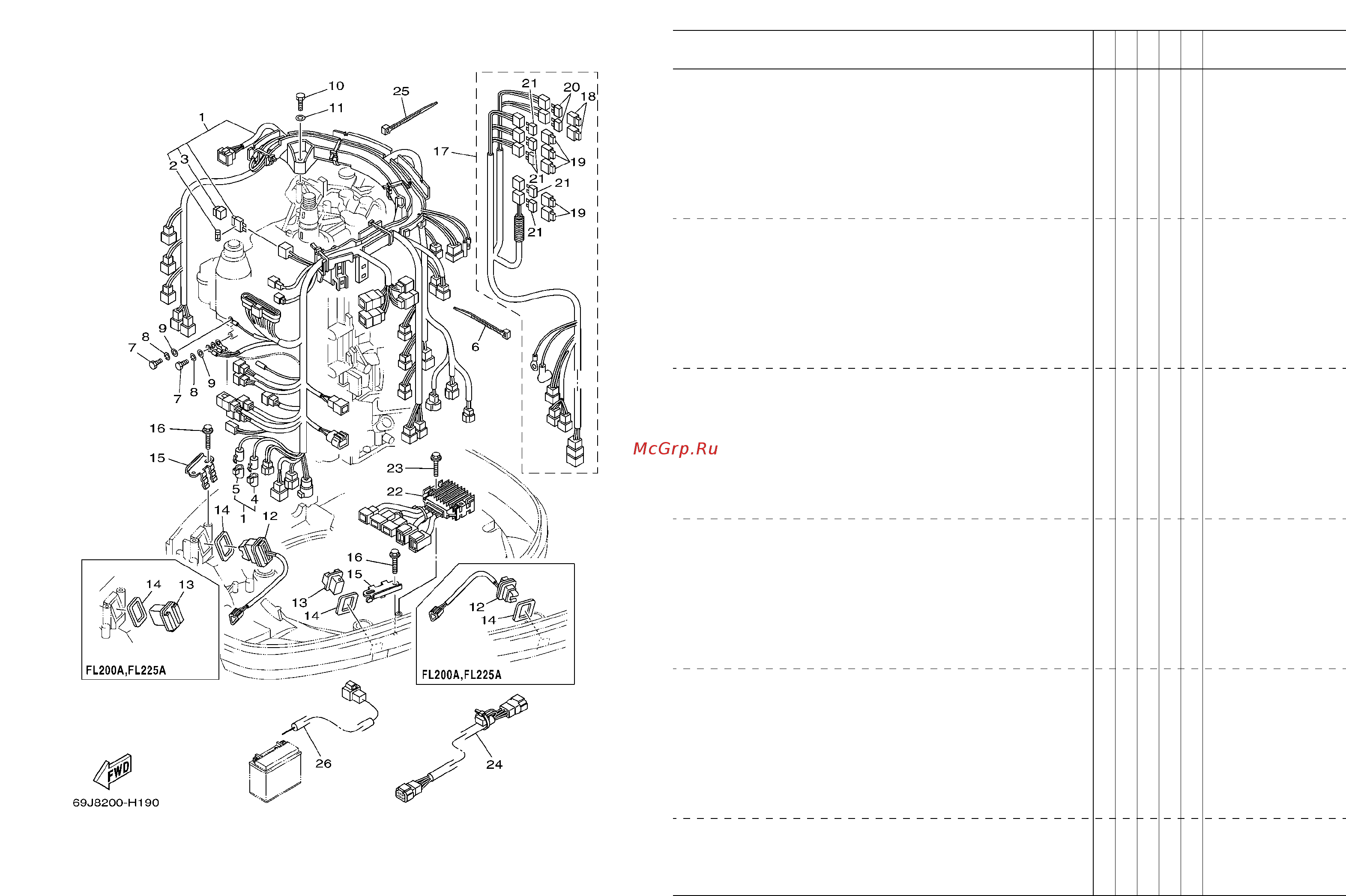

FIG. 19 ELECTRICAL 3
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–82590–70
WIRE HARNESS ASSY 1 1 1 1
2
67F–82151–20
.FUSE (5A) 2 2 2 2
3
69J–8215B–00
.CAP (BROWN) 1 1 1 1
4
6P2–82582–00
.CAP 1 (FEMALE) 1 1 1 1
5
6P2–82582–10
.CAP 1 (MALE) 1 1 1 1
6
90465–14M66
CLAMP 1 1 1 1
7
97095–06020
BOLT 2222
8
92995–06100
WASHER, SPRING 2 2 2 2
9
92995–06600
WASHER 2 2 2 2
10
97095–06035
BOLT 3333
11
92995–06600
WASHER 3 3 3 3
12
69J–82563–00
TRIM & TILT SWITCH ASSY 1 1 1 1
13
69J–42723–00–8D
COVER, BOTTOM 1 1 1 1
14
69J–82587–00
GASKET 2 2 2 2
15
69J–83614–10
BRACKET 2 2 2 2
16
90109–06M86
BOLT 4444
17
69J–8259N–11
WIRE HARNESS ASSY 3 1 1 1 1
18
67F–8215B–10
.CAP (YELLOW) 2 2 2 2
19
67F–8215B–20
.CAP (GREEN) 5 5 5 5
20
67F–82151–00
.FUSE (20A) 4 4 4 4
21
67F–82151–10
.FUSE (30A) 10 10 10 10
22
69J–83306–01
DRIVE UNIT ASSY 1 1 1 1
23
90109–06M82
BOLT 2222
24
69J–81315–00
LEAD WIRE ASSY 1 1 1 1
25
90465–14M66
CLAMP 1 1 1 1
26
69J–81949–02
WIRE, LEAD (ISOLATOR, 3.8M ) 1 1 1 1 AP
