Yamaha F200 AETX [61/90] Fig 32 lower casing drive 1
![Yamaha F200 AETX [61/90] Fig 32 lower casing drive 1](/views2/1241098/page61/bg3d.png)
57

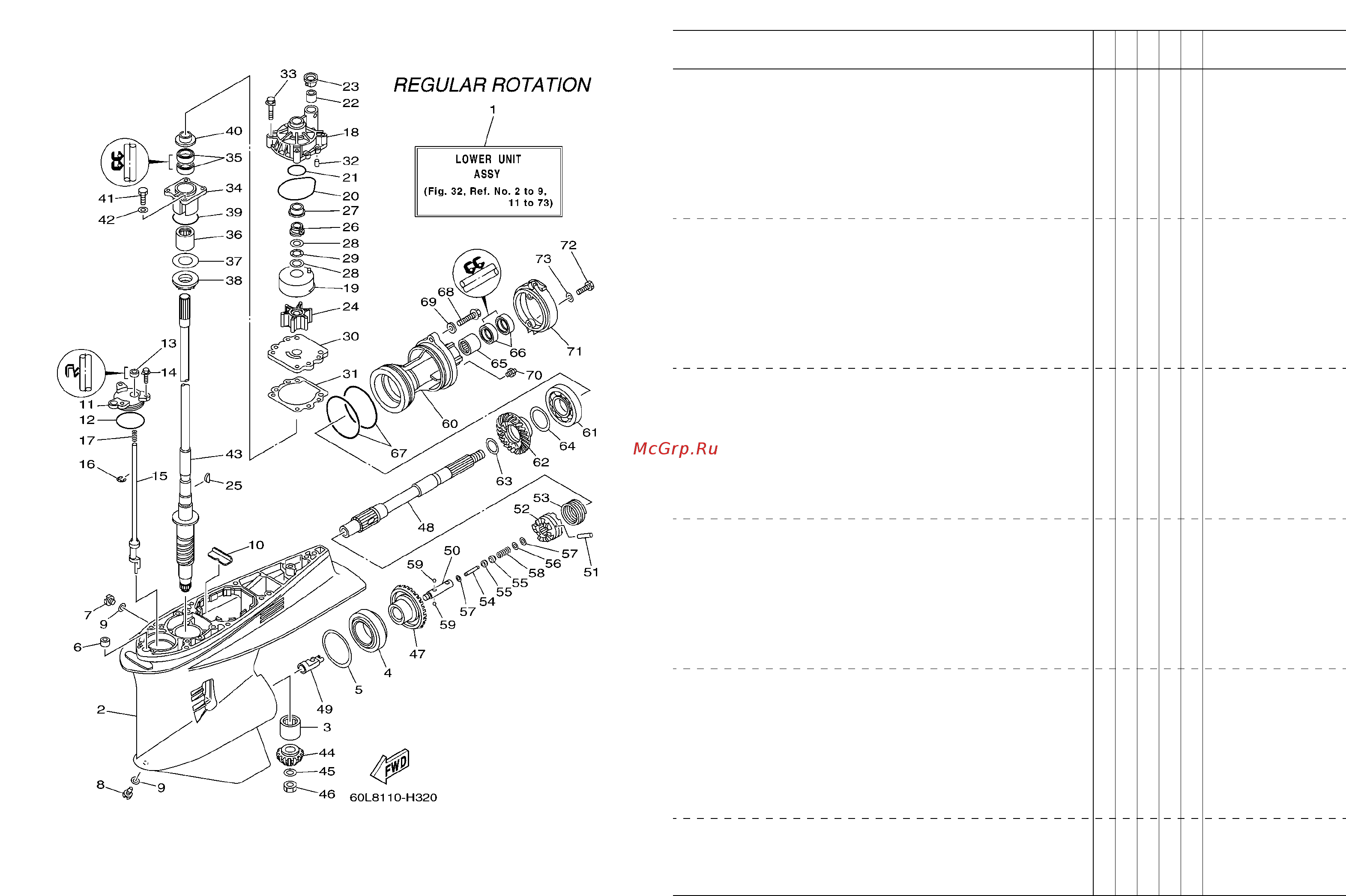

FIG. 32 LOWER CASING & DRIVE 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–45300–22–8D
LOWER UNIT ASSY 1 1 X(25.3"),RH
2
61A–45301–10–8D
CASING, LOWER 1 1
3
93311–83280
BEARING 1 1
4
93332–000W1
BEARING 1 1
5
61A–45567–00
SHIM (T:0.10MM) 1 1 UR
61A–45567–10
SHIM (T:0.12MM) 1 1 UR
61A–45567–20
SHIM (T:0.15MM) 1 1 UR
61A–45567–30
SHIM (T:0.18MM) 1 1 UR
61A–45567–40
SHIM (T:0.30MM) 1 1 UR
61A–45567–50
SHIM (T:0.40MM) 1 1 UR
61A–45567–60
SHIM (T:0.50MM) 1 1 UR
6
663–44366–00
DAMPER, WATER SEAL 1 1
7
90340–08002
PLUG, STRAIGHT SCREW 1 1
8
688–45341–10
PLUG, DRAIN 1 1
9
90430–08020
GASKET 2 2
10
61A–45376–00–94
GUIDE, SEAL DAMPER 1 1
11
61A–45321–01
PLATE 1 1
12
93210–64488
O-RING 1 1
13
93106–09014
OIL SEAL 1 1
14
90119–06M10
BOLT, WITH WASHER 3 3
15
69J–44150–00
SHIFT CAM ASSY 1 1
16
99001–08600
CIRCLIP 1 1
17
90501–11M10
SPRING, COMPRESSION 1 1
18
61A–44311–01
HOUSING, WATER PUMP 1 1
19
61A–44322–02
INSERT, CARTRIDGE 1 1
20
93210–86M38
O-RING 1 1
21
93210–37160
O-RING 1 1
