![Yamaha F200 AETX [9/90] Fig 2 cylinder crankcase 1](/img/pdf.png)
Yamaha F200 AETX [9/90] Fig 2 cylinder crankcase 1
![Yamaha F200 AETX [9/90] Fig 2 cylinder crankcase 1](/views2/1241098/page9/bg9.png)
5

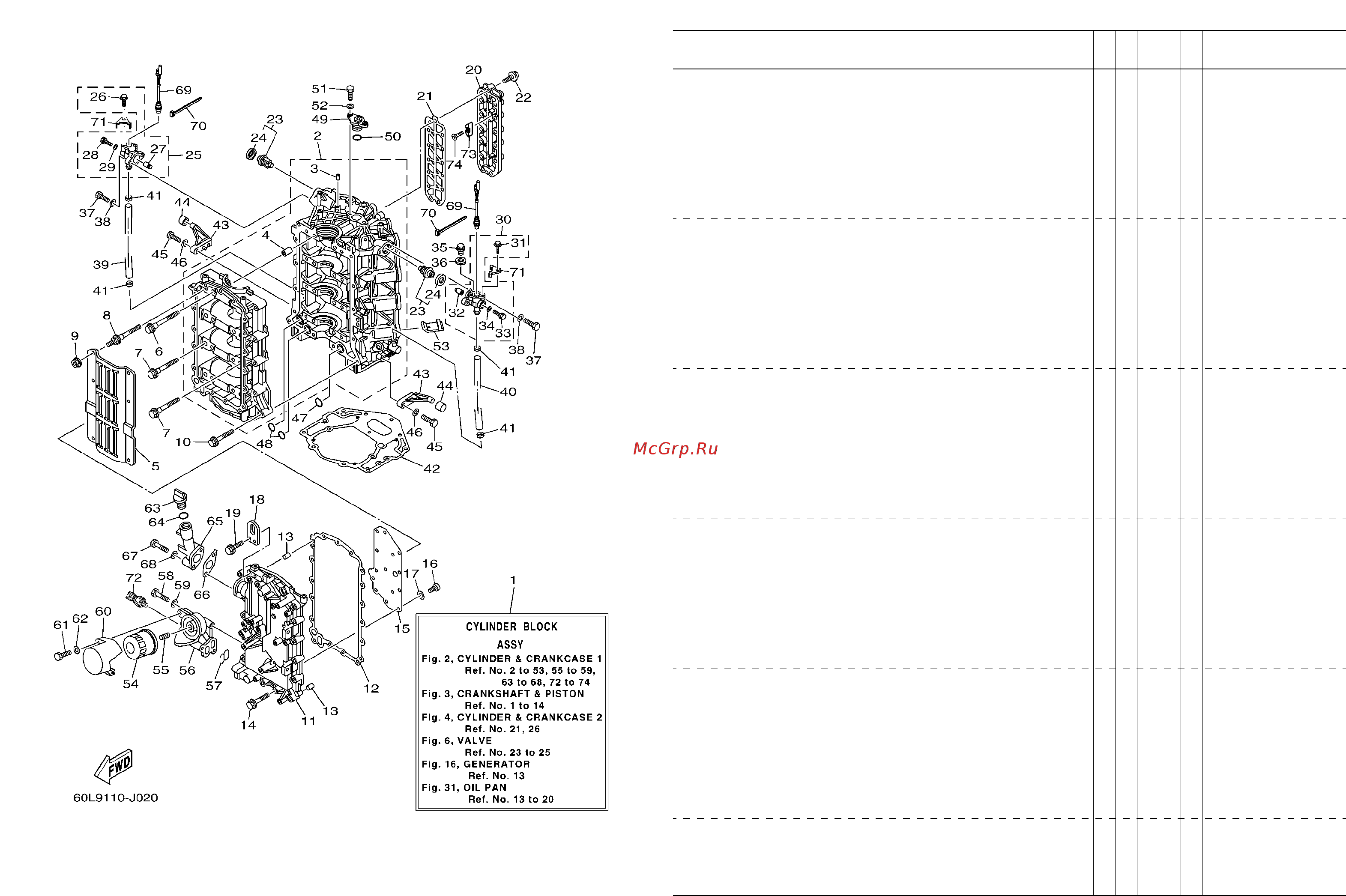

FIG. 2 CYLINDER & CRANKCASE 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
55
69J–12858–00
BOLT, UNION 1111
56
69J–13446–00–9S
CONNECTOR 1 1 1 1
57
69J–13477–00
GASKET 1 1 1 1
58
97095–06045
BOLT 3333
59
92995–06600
WASHER 3 3 3 3
60
69J–13447–00
COVER, OIL ELEMENT 1 1 1 1
61
97095–06040
BOLT 1111
62
92995–06600
WASHER 1 1 1 1
63
6G8–15363–00
PLUG, OIL 1 1 1 1
64
93210–24M79
O-RING 1 1 1 1
65
69J–15319–00–9S
JOINT 1 1 1 1
66
69J–15364–A0
GASKET, OIL PLUG 1 1 1 1
67
97095–06045
BOLT 2222
68
92995–06600
WASHER 2 2 2 2
69
6P2–82560–01
THERMO SWITCH ASSY 2 2 2 2
70
90465–11M10
CLAMP 2 2 2 2
71
6E9–82588–00
PLATE 2 2 2 2
72
6AW–83651–00
SENDER, OIL PRESSURE 1 1 1 1
73
6E5–11325–00
ANODE 4 4 4 4
74
98780–04015
SCREW, FLAT HEAD 4 4 4 4
