![Yamaha F200 AETX [51/90] Fig 26 bracket 1](/img/pdf.png)
Yamaha F200 AETX [51/90] Fig 26 bracket 1
![Yamaha F200 AETX [51/90] Fig 26 bracket 1](/views2/1241098/page51/bg33.png)
47

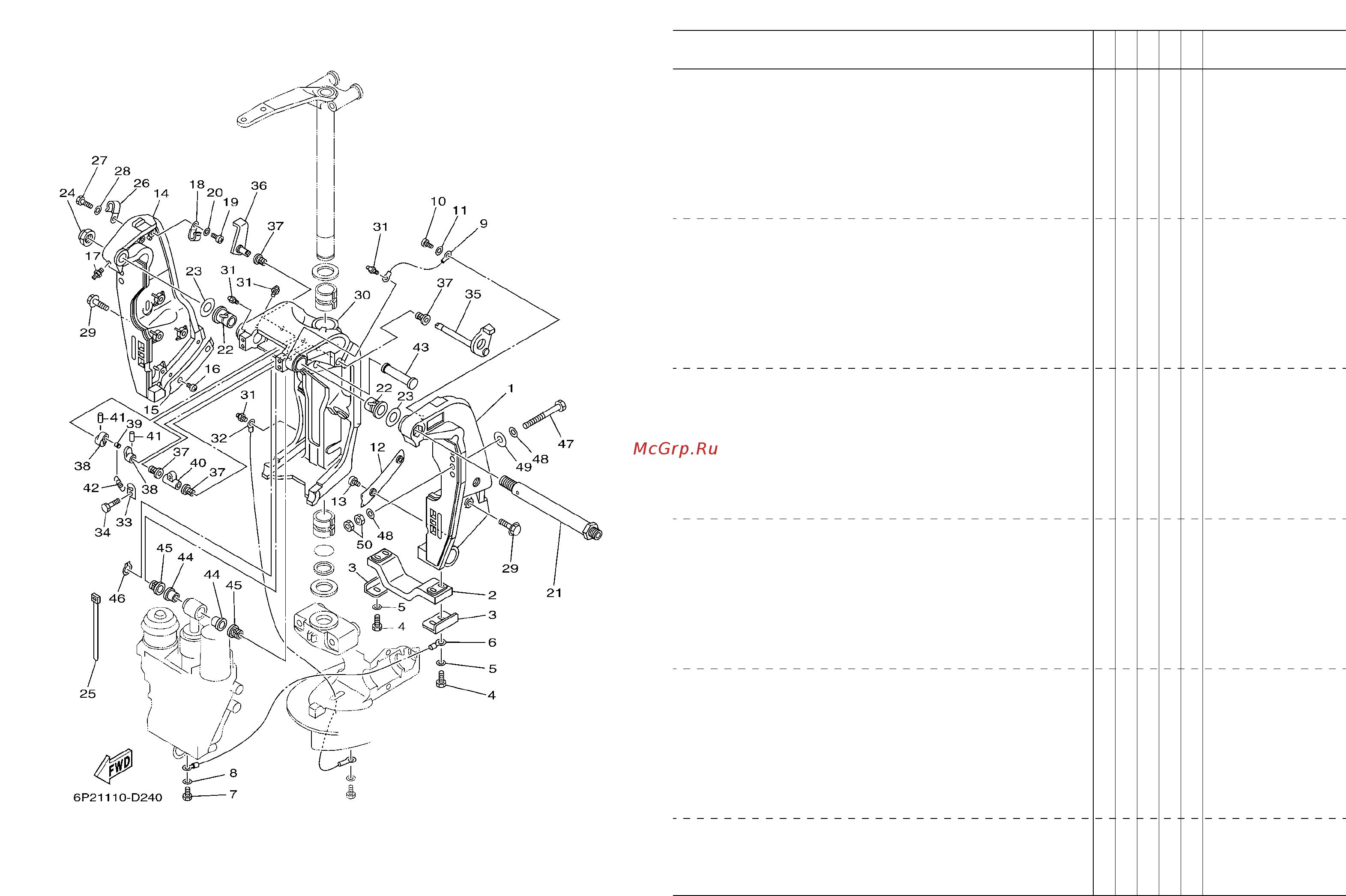

FIG. 26 BRACKET 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
28
92995–06600
WASHER 1 1 1 1
29
90119–10024
BOLT, WITH WASHER 8 8 8 8
30
61A–43311–21–8D
BRACKET, SWIVEL 1 1 1 1 1
31
93700–06M03
NIPPLE, GREASE 5 5 5 5
32
69J–82147–00
WIRE, LEAD 4 1 1 1 1
33
6G5–43144–00
HOOK, SPRING 1 1 1 1
34
97095–06010
BOLT 1111
35
61A–43181–01
LEVER, TILT STOP 1111
36
6G5–43185–02
LEVER, TILT STOP 1111
37
90386–10M16
BUSH 4 4 4 4
38
6G5–43148–00
COLLAR, DISTANCE 2 2 2 2
39
90249–06M19
PIN 1 1 1 1
40
90387–10M02
COLLAR 1111
41
91690–30020
PIN, SPRING 2 2 2 2
42
90506–16003
SPRING, TENSION 1 1 1 1
43
6E5–43126–02
PIN, UPPER SHOCK MOUNT 1 1 1 1
44
90386–18M63
BUSH 2 2 2 2
45
90386–18M14
BUSH 2 2 2 2
46
93410–18M02
CIRCLIP 1 1 1 1
47
90101–12M05
BOLT (L:130MM) 4 4 4 4
48
90201–13M01
WASHER, PLATE 8 8 8 8
49
90201–12M05
WASHER, PLATE 4 4 4 4
50
95380–12600
NUT 8888
